Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC
Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC
Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC
Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC
Specifications
Brand Name :
CONSNANT
Model Number :
CNG330
Certification :
CE,ISO9001/ISO14001
Place of Origin :
China
MOQ :
1Uint
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
500 pieces per month
Delivery Time :
15days after receiving 30% deposit
Packaging Details :
Each Piece protected by styrofoam in a carton.Pallet
Color :
Black
Power :
10-600KVA
Application :
Data center，Local area networks，Serves，Industrial Processes,Traffic
System voltage :
384VDC
Display :
LCD 7" touch screen display
Operating temperature(℃) :
0~40
Description
Feature:
  • Mutiple PC system accordance for such as Windows 2008, Vista,2003, XP; Mac OS X, Linux, Novell and most popular Unix operating systems.
  • High level diagnostics: event log with 128 messages, states, measurements and alarms – available from the built-in LCD with several languages.
  • achieve efficiencies >98% thanks to selectable Economy Mode which can be used in stable electrical environments to provide power supply continuity when the mains fail.

Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC

CNG330 10-600KVA
Model 10KVA 20KVA 30KVA 60KVA 80KVA 100KVA 160KVA 200KVA 250KVA 300KVA 500KVA 600KVA
Capacity 8KW 16KW 24KW 48KW 64KW 80KW 128KW 160KW 250KW 300KW 500KW 600KW
Input
Rated voltage 400 Vac three-phase
Voltage range 380/400/415VAC(+25%,Can be set through the LCD panel)
Frequency range 40-70Hz(Automatically select synchronization range according to grid frequency)
Range(HZ) 50±5%(±10%)Bypass synchronization tracking
Battery voltage(VDC) 384 480
Battery quantity(section)

Standard with 32 (30~34,can be set through the LCD panel);

(500/600KVA(Standard 40 knots (38~42knots,can be set through the LCD panel))
Output
Power factor 0.8/0.9
Voltage(V) L-N: 220±1% L-L: 380±1%

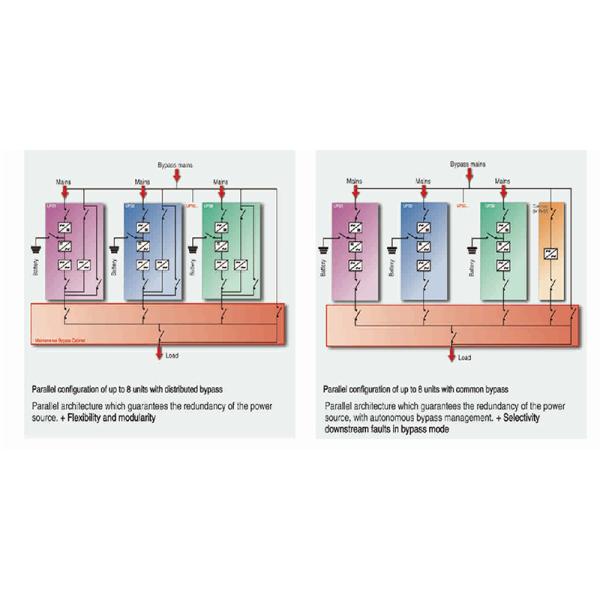

Parallel operation mode
(parallel type)		 8 parallel machine
Waveform distortion Linear loadTHD<3%; Nonlinear loadTHD<5%
Overload capacity 125% full load for 10 minutes, maintain 150 % full load for 1 minute and then switch to bypass power supply, after reducing the load can automatically restore the inverter
Others
Panel display LED displays working status and fault indication; LCD displays three-phase input voltage, input frequency, three-phase output voltage, load ,battery voltage, battery charge and discharge current, etc
Display LCD 7" touch screen display
Alarm function Battery low voltage, abnormal power supply, overload, UPS failure, over temperature protection
Protection Input over voltage, battery under voltage, overload, short circuit, over temperature protection
Cooling way Forced cooling
Operating temperature(℃) 0~40

Packaging & Shipping

  1. Payment T/T,L/C, and money gram
  2. T/T 30% deposit, balance in full before shipment
  3. Packing woodencase / as customer request
  4. Warranty 1 year

Bypass Synchronization Online Ups System ISO14001 HD Panel 384VDC
