MINI HDMI TO VGA Audio Converter

1.0 INTRODUCTION

This kind of HDMI to VGA and Audio Converter converts. HDMI signal into analog VGA video and audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision, colors, resolutions, and details;

3. Support Max HDMI 1080p@60Hz or 1920x1200 input;

4. Support VGA 1080P or 720p output；

5. No power supply, USB-powered mode.

3.0 SPECIFICATIONS

1. Input port: HDMI A TYPE；

2. Output ports: 1xVGA,1xAudio；

3. Dimensions (mm): 60.5(L) x55(W) x20(H)；

4. Wight (g): 40；

5. HDMI input: Max 1080P@60Hz；

6. VGA output: 1080p@60Hz, 720p/60Hz.

4.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Main unit (HDMI to VGA Converter)-----------1PCS

2) USB Cable or 5V 1A Power adapter------------1PCS

3) User Manual----------------------------------------1PCS

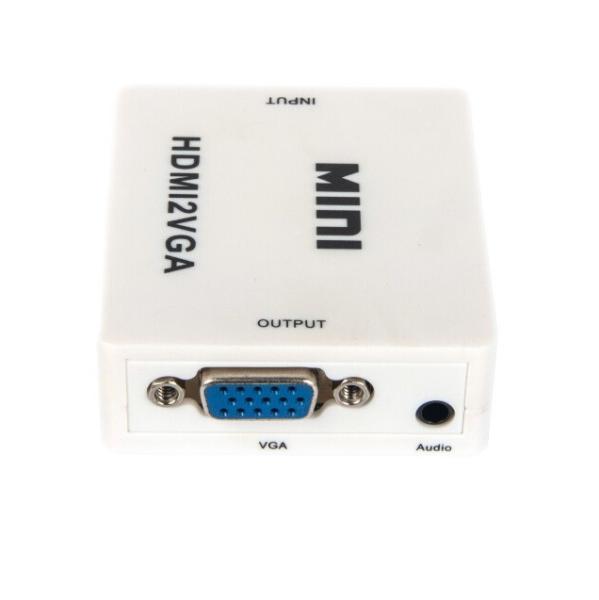

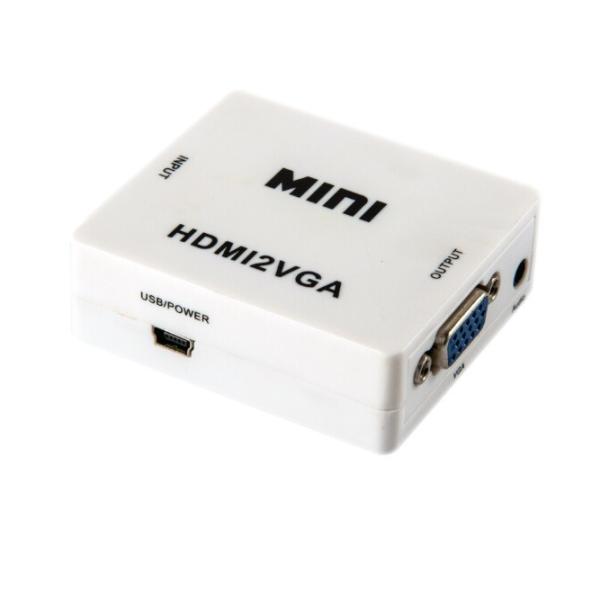

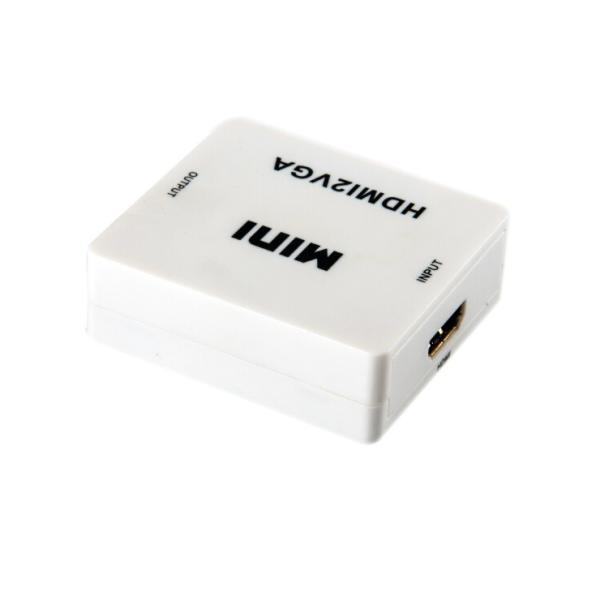

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

HDMI---------------------HDMI signal input

USB POWER------------USB power input

VGA-----------------------VGA output

Audio----------------------Audio output

6.0 CONNECTION DIAGRAM

WARNING

1. Do not expose this apparatus to rain, moisture, dripping or splashing And that no objects filled with liquids, such as vases, shall be placed on the apparatus

2. Do not install near any heat sources such as radiators, heat registers, Stoves or other apparatus(including amplifiers)that product heat.

3. Do not place sources of naked flames, such as lighted candles, on the unit.

4. Clean this apparatus only with dry cloth.

5. Only use attachments/accessories specified by the manufacturer.

6. Refer all servicing to qualified service personnel.
