TV DVD VCR 640x480 60Hz HDMI To RCA Adapter Low Power ROHS RCA Cable 40g
TV DVD VCR 640x480 60Hz HDMI To RCA Adapter Low Power ROHS RCA Cable 40g
Specifications
Brand Name :
CANEOV
Model Number :
13204885
Certification :
CE ROHS
Place of Origin :
100pcs
MOQ :
100PCS
Price :
$0.1 to $100/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per month
Delivery Time :
5 to 15 days
Packaging Details :
Bag or Giftbox
Input :
HDMI
Output :
RCA
Material :
ABS
Power :
5V 1A
Package :
Box
Feature :
Low power
Description

1080p MINI HDMI TO CVBS Converter

1.0 INTRODUCTION

The MINI HDMI to AV converter, Which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

2.0 SPECIFICATIONS

1. Input port: 1xHDMI;

2. Output ports: 3xRCA (Yellow, White, Red);

3. Dimensions (mm): 66(D) x55(W) x20(H);

4. Wight (g): 40;

5. HDMI Input Resolution:

640x480@60Hz,800x600@60Hz,

1024x768@60Hz,1280x720@60Hz,

1280x1024@60Hz,1360x768@60Hz,

6. CVBS output: PAL, NTSC_M, and (NTSC_J).

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) 1PCS Main unit (HDMI to AV Converter)

2) 1PCS USB Cable or 5V 1A Power adapter

3) 1PCS User Manual

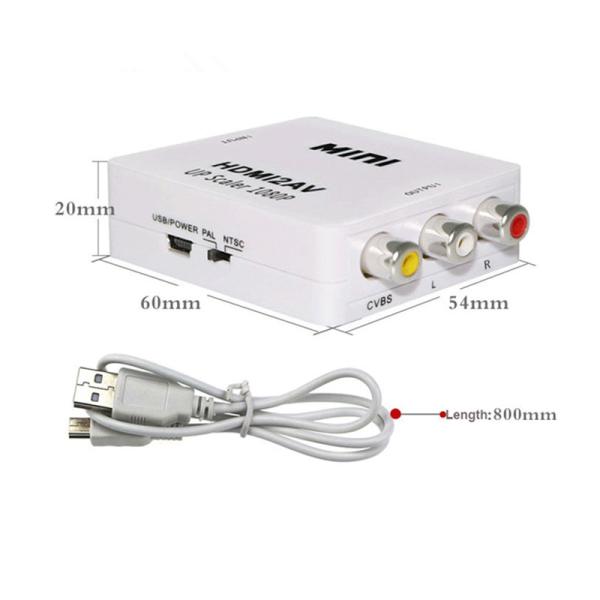

4.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

TV DVD VCR 640x480 60Hz HDMI To RCA Adapter Low Power ROHS RCA Cable 40g

HDMI-----------------HDMI signal input

USB POWER--------USB power input

PAL/NTSC-----------PAL/NTSC switch

CVBS-----------------CVBS output

L/R--------------------Audio output

5.0 CONNECTION DIAGRAM

TV DVD VCR 640x480 60Hz HDMI To RCA Adapter Low Power ROHS RCA Cable 40g
