Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
Specifications
Brand Name :
CANEOV
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
$1 to $100 PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS PER MONTH
Delivery Time :
5 - 10 DAYS
Packaging Details :
BAG OR BOX
Length of CAT-5E/CAT-6 cable between Rx and TX :
up to 120 meters
HDMI input and output :
4K/1080p/720p/576p/576i/480p/480i
Support audio format :
DTS/Dobly/LPCM
Max bandwidth :
340MHz
Max baud rate :
10.2Gbps
Input HDMI cable distance :
≤15m AWG26 HDMI standard cable
Output HDMI cable distance :
≤15m AWG26 HDMI standard cable
TX Max working current :
350mA
RX Max working current :
200mA
Power adapter format :
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range :
(-15 to +55℃)
Description

Full HD 1080P 4K HDMI Extender 396ft 120m over single cat5 cat6 Cable with IR Remote Control

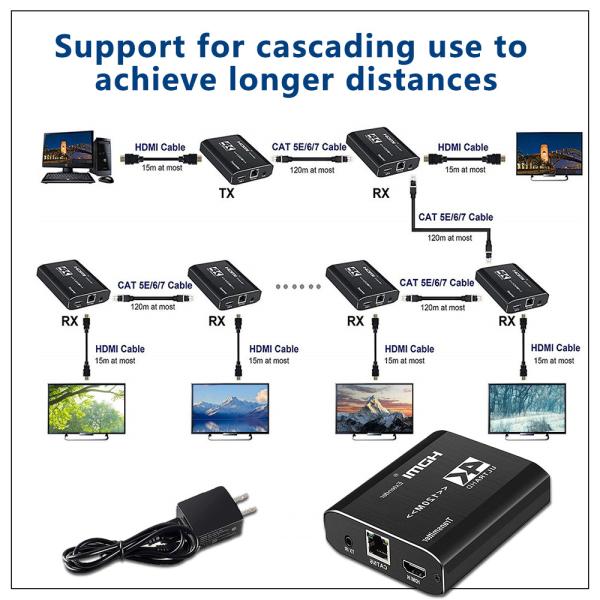

Connection and operation:
1.Connect hDMI source device with transmitter by one HDMI cable, the cable max length is 15 meters.
2.Connect HDMI display device with receiver by one HDMI cable, the cable max length is 15 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 120 meters.
4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5.Connect the power supply to the TX and RX.
6.LED indicator:When a signal is input to work, steady blue light.

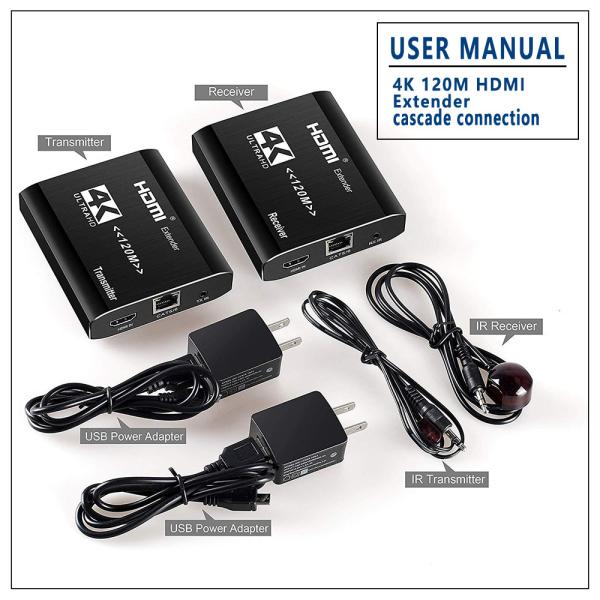

The package includes:
1. Transmitter 1PCS
2. Receiver 1PCS
3. IR cable 1PCS
4. 5V/1A Power adapter 1PCS
5. User Manual 1PCS

Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled

Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled

Full HD 1080P 4K HDMI Cable 396ft 120m Over Single Cat5 Cat6 IR Remote Controled
