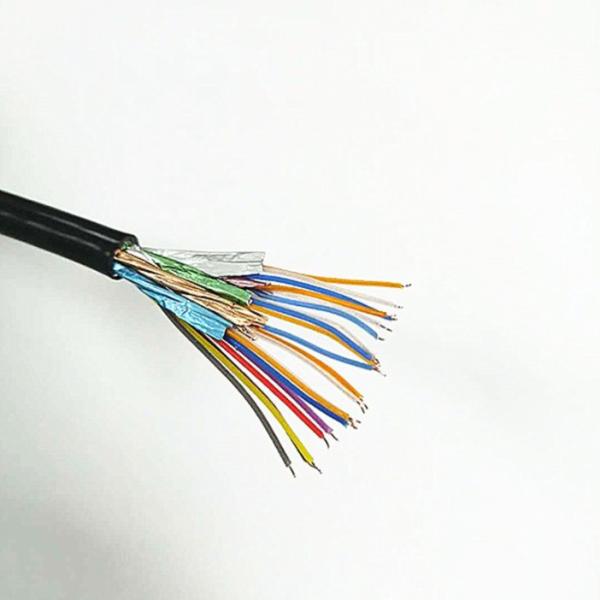

5000 Meters Engineering Cable HD 4K HDMI Cable Bright PVC Jacket
5000 Meters Engineering Cable HD 4K HDMI Cable Bright PVC Jacket
5000 Meters Engineering Cable HD 4K HDMI Cable Bright PVC Jacket
5000 Meters Engineering Cable HD 4K HDMI Cable Bright PVC Jacket
Specifications
Brand Name :
CANEOV
Model Number :
HD20A01-28/28
Certification :
ROSH,CE
Place of Origin :
China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 thousand meters per day
Delivery Time :
30 days
Packaging Details :
PE bags and cartons(46*30*33)
OD :
7.3mm
Material :
Bright PVC, BARE COPPER
Color :
Yellow, Orange, White, Red or customize
Jacket :
Bright PVC
Conductor :
BARE COPPER
MOQ :
5000 meters
Rated Temperature :
80℃
Rated Voltage :
30V
Voltage Withstand :
AC 500V/1min, NO Breakdown
Insulation Resistance :
Min. 100Mohms/cable at 20℃
Conductor Resistance :
AT 20℃ Max
Wire :
AWG28#
Description

HDR 4K HDMI Cable 19+1 With Ethernet 80℃ 30V VW-1 MOQ 5000m OD 7.3 Raw Cable Packed By Roll

Wire Color:

5P: WHITE*BLUE, with 5 different color foil & mylar 4C: Yellow, Orange, White, Red

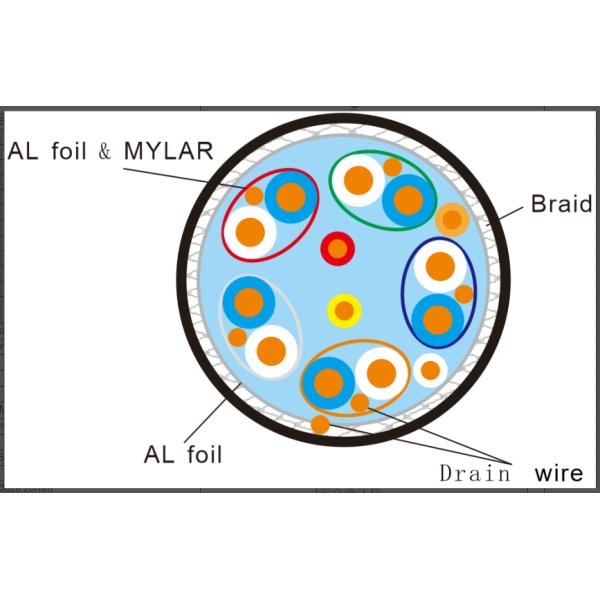

5000 Meters Engineering Cable HD 4K HDMI Cable Bright PVC Jacket

SPECIFICATION: (1P/28AWG+D+AL+My)*5U+4C/28AWG+AEB
OD7.3mm PVC Jacket
ITEM SPECIFICATION
(1P/28AWG+D+AL+My)*5U 4C/28AWG
CONDUCTOR AWG 28AWG 28AWG
MATERIAL BARE COPPER BARE COPPER
SIZE 1/0.32±0.008㎜ 1/0.32±0.008㎜
INSULATION MIN.AVG.THICK 0.17㎜ 0.13㎜
MATERIAL FMPE HDPE
O . D 0.95± 0.05㎜ 0.60± 0.05㎜
AL Foil & MYLAR COVERAGE 100%
OVERLAP >25%
DRAIN AWG 30AWG
MATERIAL Bare COPPER
SIZE 1/0.254±0.008㎜ with PE insulation
COLLECTION Direction & Pitch S Direction PH=80mm
Drain 1/0.32mm Bare copper
Filler /
AL Foil & MYLAR COVERAGE 100%
OVERLAP >25%
BRAID MATERIAL AL-Mg Alloy wire
SIZE 16/6/0.12±0.008㎜
JACKET AVG.THICK 0.6mm
MATERIAL Bright PVC
COLOUR Black
O . D 7.30±0.20mm

ELECTRICAL CHARACTERISTICS:

Rated Temperature: 80℃ Rated Voltage:30V
Voltage Withstand:: AC 500V/1min, NO Breakdown
Insulation Resistance: Min. 100Mohms/cable at 20℃
Conductor Resistance: AT 20℃ Max 28AWG: Stranded<237Ω/KM
RF Charactoristic Parameters Complying with HDMI cat.2 standard.

PHYSICAL PROPERTIES OF JACKET:

Physical Properties Test on Jacket:( Aged Test Temperature: 113℃ Time: 168h)
Tensile Strength: Unaged>1500PSI,
Aged>70% of the result with unaged specimens
Elongation: Unaged>100%,
Aged>70% of the result with unaged specimens.
Heat Shock Test on Jacket: NO Cracking
Deformation Test on Jacket: <50%
Cold Bend Test: -20℃ 1h NO Cracking
Flame Test: VW-1 PASS
Spark Test: 100% PASS
