Tinned Copper VGA Cable 3+6 5000m OD 8mm Raw Low Voltage Computer Cable
Tinned Copper VGA Cable 3+6 5000m OD 8mm Raw Low Voltage Computer Cable
Tinned Copper VGA Cable 3+6 5000m OD 8mm Raw Low Voltage Computer Cable
Tinned Copper VGA Cable 3+6 5000m OD 8mm Raw Low Voltage Computer Cable
Specifications
Brand Name :
CANEOV
Model Number :
VGA36-28/24AWG
Certification :
ROSH,CE
Place of Origin :
China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 thousand meters per day
Delivery Time :
30 days
Packaging Details :
PE bags and cartons(46*30*33)
OD :
8mm
Material :
PVC, Tinned Copper
Color :
Black, blue, White, Red or customize
Jacket :
Bright PVC
Conductor :
Tinned Copper
MOQ :
5000 meters
Rated Temperature :
80℃
Rated Voltage :
30V
Voltage Withstand :
AC 500V/1min, NO Breakdown
Insulation Resistance :
Min. 100Mohms/cable at 20℃
Conductor Resistance :
AT 20℃ Max
Wire :
AWG28#24#
Description

VGA Cable 3+6 80℃ 30V MOQ 5000m OD 8 Raw Cable Packed By Roll low voltage computer cable​

Wire Color:

3Coax: Red,Green,Blue

6C: YELLOW, ORANGE, WHITE, RED,BLACK,BLOWN

Tinned Copper VGA Cable 3+6 5000m OD 8mm Raw Low Voltage Computer Cable

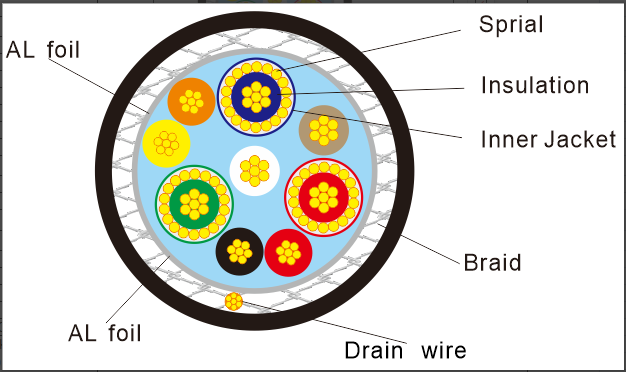

SPECIFICATION: VGA (1C/28AWG+S)*3Coax+6C/24AWG+AEB OD8.0mm BLK Color
ITEM SPECIFICATION
3Coax/28AWG 6C/24AWG
CONDUCTOR AWG 28AWG 24AWG
MATERIAL Tinned Copper Tinned Copper
SIZE 7/0.127±0.008㎜ 7/0.20±0.008㎜
MIN.AVG.THICK 0.62㎜ 0.24㎜
INSULATION MATERIAL FMPE-SKIN SR-PVC
O . D 1.60± 0.05㎜ 1.1± 0.05㎜
Sprial MATERIAL 23/0.12 Tinned Copper
OVERLAP >50%
Inner Jacket MATERIAL 45P PVC
SIZE 2.5±0.05㎜
COLLECTION Direction & Pitch S Direction PH=80mm
Drain 1/0.254mm Bare copper
Filler /
AL Foil & MYLAR COVERAGE 100%
OVERLAP >25%
BRAID MATERIAL AL-MG wire
SIZE 16/6/0.12±0.008㎜
JACKET AVG.THICK 1.20mm
MATERIAL PVC
COLOUR Black
O . D 8.0±0.20mm

ELECTRICAL CHARACTERISTICS:

Rated Temperature: 80℃ Rated Voltage:30V
Voltage Withstand:: AC 500V/1min, NO Breakdown
Insulation Resistance: Min. 100Mohms/cable at 20℃
Conductor Resistance: AT 20℃ Max 28AWG: Stranded<237Ω/KM
Coaixalcable impedance:75±5W.

PHYSICAL PROPERTIES OF JACKET:

Physical Properties Test on Jacket:( Aged Test Temperature: 113℃ Time: 168h)
Tensile Strength: Unaged>1500PSI,
Aged>70% of the result with unaged specimens
Elongation: Unaged>100%,
Aged>70% of the result with unaged specimens.
Heat Shock Test on Jacket: NO Cracking
Deformation Test on Jacket: <50%
Cold Bend Test: -20℃ 1h NO Cracking
Flame Test: VW-1 PASS
Spark Test: 100% PASS

The question you may concern:

Q1: Are you a factory or trading company?
A1: We are a manufacturer.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and services.

Q3:What payment method do you accept?
A3:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q4: Can you put my brand name (logo) on these products?
A4: Yes! The professional OEM services will be welcomed to us.

Q5: How will you deliver my goods to me?
A5: Your purchases will be delivered by DHL, UPS, FedEx, TNT, by Air, by Sea and by train also be accepted according to clients' request.

Q6: Can you provide us more other products to us to help us to save more shipping costs?
A6: Yes. There’re kinds of HD2.0 Cables, VGA Cables, DVI Cables, Data USB cables, Display port , Aux Audio and video Cables, Cat network LAN Cables will be the main products line of our factory.
