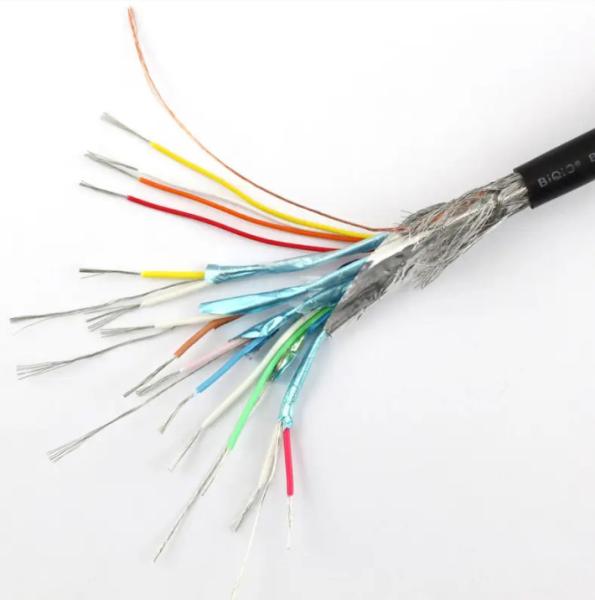

HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm
HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm
HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm
HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm
HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm
HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm
Specifications
Brand Name :
CANEOV
Model Number :
HD14V14-30/30AWG
Certification :
ROSH,CE
Place of Origin :
China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 thousand meters per day
Delivery Time :
30 days
Packaging Details :
PE bags and cartons(46*30*33)
OD :
7.3mm
Material :
HALF MATT PVC, BARE COPPER
Color :
Brown/White,Red/White or customize
Jacket :
HALF MATT PVC
Conductor :
BARE COPPER
MOQ :
5000 meters
Rated Temperature :
80℃
Rated Voltage :
30V
Voltage Withstand :
AC 500V/1min, NO Breakdown
Insulation Resistance :
Min. 100Mohms/cable at 20℃
Conductor Resistance :
AT 20℃ Max
Wire :
AWG30#
Description

HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# MOQ 5000m OD 7.3 Raw Cable Packed By Roll

Wire Color:

5P:Brown/White,Red/White,Green/White,Blue/White,Black/White

HD 4K HDMI Cable 14+1 With Ethernet 30V AWG30# OD 7.3mm

SPECIFICATION: HDMI1.4 (1P/30AWG+AL/Mylar)*5U+4C/30AWG+AE
OD7.30mm PVC Jacket
ITEM SPECIFICATION
(1P/30AWG+AL+My)*5U 4C/28AWG
CONDUCTOR AWG 30AWG 30AWG
MATERIAL BARE COPPER BARE COPPER
SIZE 1/0.254±0.008mm 1/0.254±0.008mm
INSULATION MIN.AVG.THICK 0.2㎜ 0.13㎜
MATERIAL FM SKIN-PE HD-PE
O . D 0.75±0.05mm 0.55± 0.05mm
AL Foil & MYLAR COVERAGE 100% Face inside
OVERLAP 25% MIN
DRAIN AWG /
MATERIAL /
SIZE
COLLECTION Direction & Pitch Right Hand diredtion pitch =60mm
Drain 1/0.254±0.008mm BARE COPPER
Filler /
AL Foil & MYLAR COVERAGE 100% Face outside
OVERLAP 25% MIN
BRAID MATERIAL
SIZE
JACKET AVG.THICK 1.50mm Normal
MATERIAL HALF MATT PVC
COLOUR BLACK
O . D 7.0 ± 0.20mm

ELECTRICAL CHARACTERISTICS:

1.Temperature: 80℃ Rated Voltage:30V
2.Voltage Withstand:: AC 500V/1min, NO Breakdown
3.Insulation Resistance: Min. 100Mohms/cable at 20℃
4.Conductor Resistance: AT 20℃ Max 30AWG: Stranded<850.96Ω/KM Ref.
5.RF Charactoristic Parameters Complying with HDMI V1.4 standard.

PHYSICAL PROPERTIES OF JACKET:

1. Insulation aged:Age before: Elongation >300%; Tensile >1000PSI;
Age after: Elongation salvage >65%; Tensilesalvage >65%;
2. Jacket PVC aged:Age before: Elongation >100%; Tensile >1200PSI;
Age after: Elongation salvage >60%; Tensilesalvage >60%;
3.Cable Flame Test: VW-1
