Display Port DP Engineering Cable 20+1 30Volt 5000m OD 7.3mm 4K HD 28AWG
Display Port DP Engineering Cable 20+1 30Volt 5000m OD 7.3mm 4K HD 28AWG
Display Port DP Engineering Cable 20+1 30Volt 5000m OD 7.3mm 4K HD 28AWG
Display Port DP Engineering Cable 20+1 30Volt 5000m OD 7.3mm 4K HD 28AWG
Specifications
Brand Name :
CANEOV
Model Number :
DP20V12-28/28AWG
Certification :
ROSH,CE
Place of Origin :
China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 thousand meters per day
Delivery Time :
30 days
Packaging Details :
PE bags and cartons(46*30*33)
OD :
7.3mm
Material :
Half Matt PVC, Tinned Copper
Color :
Yellow, Purple, White, Red or customize
Jacket :
Half Matt PVC
Conductor :
Tinned Copper
MOQ :
5000 meters
Rated Temperature :
80℃
Rated Voltage :
30V
Voltage Withstand :
AC 500V/1min, NO Breakdown
Insulation Resistance :
Min. 100Mohms/cable at 20℃
Conductor Resistance :
AT 20℃ Max
Wire :
AWG28#
Description

DisplayPort DP Cable 20+1 30V MOQ 5000m OD 7.3 Raw Cable Packed By Roll 4K HD 28AWG​

Wire Color:

5P: WHITE*BLUE with different five color AL-Mylar

5C: YELLOW, ORANGE, WHITE, RED,PURPLE

Display Port DP Engineering Cable 20+1 30Volt 5000m OD 7.3mm 4K HD 28AWG

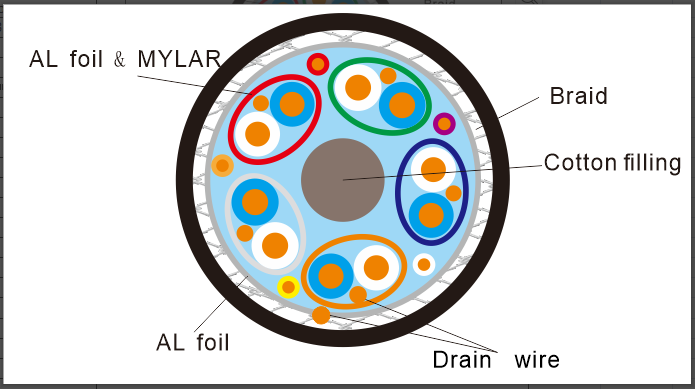

SPECIFICATION: DP (1P/28AWG+D+AL+My)*5U+5C/28AWG+AEB
OD7.3mm BLK Color
ITEM SPECIFICATION
(1P/28AWG+D+AL+My)*5U 5C/28AWG
CONDUCTOR AWG 28AWG 28AWG
MATERIAL Tinned Copper Tinned Copper
SIZE 1/0.32±0.008㎜ 1/0.32±0.008㎜
MIN.AVG.THICK 0.17㎜ 0.13㎜
INSULATION MATERIAL FMPE-SKIN HDPE
O . D 0.95± 0.05㎜ 0.60± 0.05㎜
AL Foil & MYLAR COVERAGE 100%
OVERLAP >25%
DRAIN AWG 30AWG
MATERIAL Tinned Copper
SIZE 1/0.254±0.008㎜
COLLECTION Direction & Pitch S Direction PH=80mm
Drain 1/0.32mm Bare copper
Filler /
AL Foil & MYLAR COVERAGE 100%
OVERLAP >25%
BRAID MATERIAL AL-MG wire
SIZE 16/6/0.12±0.008㎜
JACKET AVG.THICK 1.20mm
MATERIAL Half Matt PVC
COLOUR Black
O . D 7.30±0.20mm

ELECTRICAL CHARACTERISTICS:

Rated Temperature: 80℃ Rated Voltage:30V
Voltage Withstand:: AC 500V/1min, NO Breakdown
Insulation Resistance: Min. 100Mohms/cable at 20℃
Conductor Resistance: AT 20℃ Max 28AWG: Stranded<237Ω/KM
RF Charactoristic Parameters Complying with DisPlay Port Cable standard.

PHYSICAL PROPERTIES OF JACKET:

Physical Properties Test on Jacket:( Aged Test Temperature: 113℃ Time: 168h)
Tensile Strength: Unaged>1500PSI,
Aged>70% of the result with unaged specimens
Elongation: Unaged>100%,
Aged>70% of the result with unaged specimens.
Heat Shock Test on Jacket: NO Cracking
Deformation Test on Jacket: <50%
Cold Bend Test: -20℃ 1h NO Cracking
Flame Test: VW-1 PASS
Spark Test: 100% PASS

The question you may concern:

Q1: How soon we can receive the quotation?
A1: If the specification is confirmed, our quotation can be provided within 24 hours.

Q2: Can you provide samples for evaluation?
A2: Yes, samples can be sent to you for evaluation.

Q3: What is your trade term?
A3: FOB, CFR, CIF, EXW, are available. We can also help you choose the most favorable and efficient shipping method.

Q4: What is the payment term?
A4: You can pay by Visa, MasterCard, T/T, PayPal, Apple Pay, Google Pay, etc.

Q5: Can you provide OEM & ODM service?
A5: Yes, our professional R&D team will help make your ideas come true.
