Sany STC1000 Used Truck Crane 100 Tons 350kw/1800 Rpm Rated Power
Sany STC1000 Used Truck Crane 100 Tons 350kw/1800 Rpm Rated Power
Sany STC1000 Used Truck Crane 100 Tons 350kw/1800 Rpm Rated Power
Sany STC1000 Used Truck Crane 100 Tons 350kw/1800 Rpm Rated Power
Sany STC1000 Used Truck Crane 100 Tons 350kw/1800 Rpm Rated Power
Sany STC1000 Used Truck Crane 100 Tons 350kw/1800 Rpm Rated Power
Specifications
Brand Name :
Sany
Model Number :
STC1000 Model 2018
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, L/C
Supply Ability :
15 untis per month
Delivery Time :
30-35 days after down payment
Packaging Details :
Containers, RORO ship, Cargo bulk ship
Model :
Sany STC1000 2018
Color :
Yellow and Red
Max Lifting Capacity :
100T
Dimensions :
15961mm*3000mm*3907mm
Overall Weight :
55000kg
Aele Load-1,2,3 :
24000kg
Axle Load-3,4,5 :
31000kg
Rated Power :
350kw/1800 rpm
Rated Torque :
2300N.m/1100 rpm
Boom Section :
5
Description

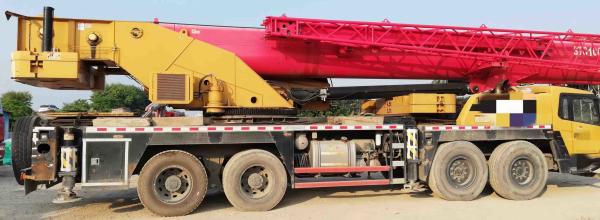

Used Sany 100 tons STC1000 Truck Crane Model 2018

Sany STC1000 Item Parameter
Capacity Max. lifting capacity 100 t

Dimensions

 Overall length 15961 mm
Overall width 3000 mm
Overall height 3907 mm

Axle distance

 Axle-1,2 1450 mm
Axle-2,3 2400 mm
Axle-3,4 1800 mm
Axle-4,5 1450 mm
Axle-5,6 1500 mm

Weight

 Overall weight 55000 kg

Axle load

 Axle load-1,2,3 24000 kg
Axle load-3,4,6 31000 kg
Rated power 350 kW/ 1800 rpm
Rated torque 2300 N.m/ 1100 rpm

Traveling

 Max.traveling speed 80 km/h
Turning radius Min.turning radius 12 m
Wheel formula 12× 6
Min.ground clearance 302 mm
Approach angle 19 °
Departure angle 14 °
Max.gradeability 40%
Fuel consumption per 100km ≤ 60 L

Main Performance Data

 Temperature range – 20 ℃ ~ +46℃
Min.rated range 3 m
Tail slewing radius of swingtable 4.56 m
Boom section 5
Boom shape U-shaped

Max.lifting moment

 Base boom 3600 kN·m
Full-extend boom 1920 kN·m
Full-extend boom+jib 1000 kN·m

Boom length

 Base boom 13.5 m
Full-extend boom 52 m
Full-extend boom+jib 70 m
Outrigger span (Longitudinal×Transversal) 7.56 × 7.6 m
Jib offset 0 °, 15 °, 30 °

Working speed

 Max.single rope lifting speed of main winch (no load) 135 m/min
Max.single rope lifting speed of auxiliary winch (no load) 123 m/min
Full extension/retraction time of boom 120 / 100 s
Full lifting/descending time of boom 60 / 90 s
Slewing speed 2 r/min

Aircondition

 Aircondition in up cab Cooling/Heating
Aircondition in low cab Cooling/Heating
