Specifications
Brand Name :
Zoomlion
Model Number :
HBT80.16.174RSU Trailer Pump model 2017
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
12 units per month
Delivery Time :
15-20 days after down payment
Packaging Details :
containers
Model :
HBT80.16.174RSU
Color :
Green and Grey
Dimensions :
6800×2700×2200mm
Weight :
7000kg
Type :
S-Valve
Rated Power :
174KW
Description

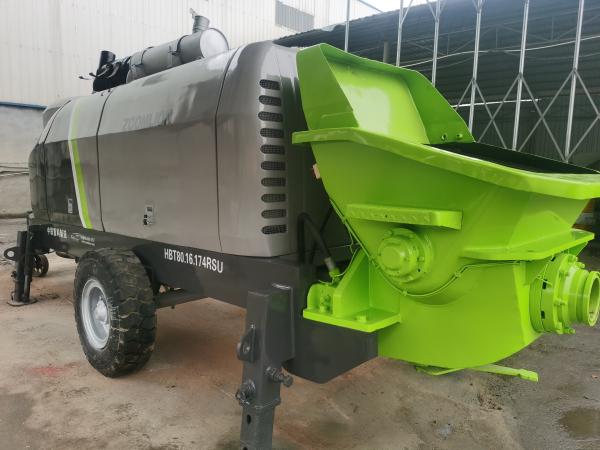

Used Zoomlion HBT80.16.174RSU Trailer Pump

model 2017

 Units Parameters
80.16.174RSU
Whole performance of pump Max. theo. concrete output (L./H.) m3/h 85/55
Max.concrete pumping pressure (H. /L.) MPa 16/9
Distributing valve style / S valve
Concrete cylinder diameter×stroke mm φ200×1800
Hopper capacity×feeding height L×mm 600×1400
Outlet diameter mm φ180
Power system Diesel engine model / BF6M1013EC
Rated power kW 174
Rated speed r/min 2300
Hydraulic system Circuit type / Open circuit
Pumping system pressure MPa 34
Distributing system pressure MPa 23
Mixing system pressure MPa 14
Max mixing speed r/min 40
Capacity of oil tank L 600
Other parameters

Max. aggregate diameter/

Inside diameter of delivering pipe

 mm

50/Φ150

40/Φ125
Inside diameter of delivering pipe mm φ125/φ150
Dimensions:length×width×height mm 6800×2700×2200mm
Total weight kg 7000
