YASKAWA GP12 6 Axis Industrial Robotic Arm Second Hand Robot Arm
YASKAWA GP12 6 Axis Industrial Robotic Arm Second Hand Robot Arm
Specifications
Brand Name :
YASKAWA
Model Number :
GP25
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
999 sets/month
Delivery Time :
6-8working days
Name :
ASKAWA GP12 6 Axis Andustrial Robotic arm
Brand :
YASKAWA
Model :
GP25
Production Year :
2000-2015
Warranty :
3 month
Drive method :
Electric
Payload :
25kg
Reapetability :
0.05 mm
Axis :
6
Description

YASKAWA GP12 6 axis industrial robotic arm for packing,milling,welding,assembly,painting robots

Product Description

The MOTOMAN GP12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a reach of 1440 mm and a high repeatability of ± 0.02 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its streamlined modern industrial design minimizes the space requirements at the installation site. The prepared routing of the supply lines through the hollow arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours. With the MOTOMAN GP12 and numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000 micro controller a wide range of applications can be realized. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the Smart Pendant, it provides an excellent point of entry into industrial automation.

Specification
Product name YASKAWA GP12 6 axis industrial robotic arm for packing,milling,welding,assembly,painting robots
Model GP12
Maximum reach 1440mm
Maximum payload 12 kg
Pose repeatability (ISO 9283) ± 0.06 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Footprint 179 mm x 179 mm
Weight approx. 160 kg
Protection rating IP67
Controller YRC1000
Motion range
A1 ±170°
A2 (+155/–90)
A3 (+155/–85)
A4 ±200°
A5 ±150°
A6 ±450°

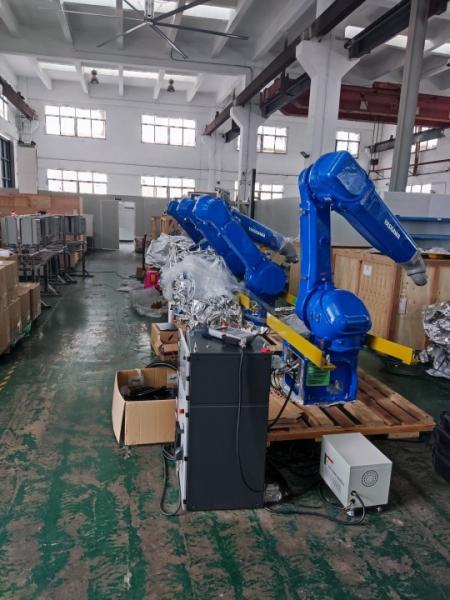

Product image
