Pay load: 20 kg, 40 kg, 45 kg, 60 kg
Reach: 2.05 m, 2.51 m, 2.55 m

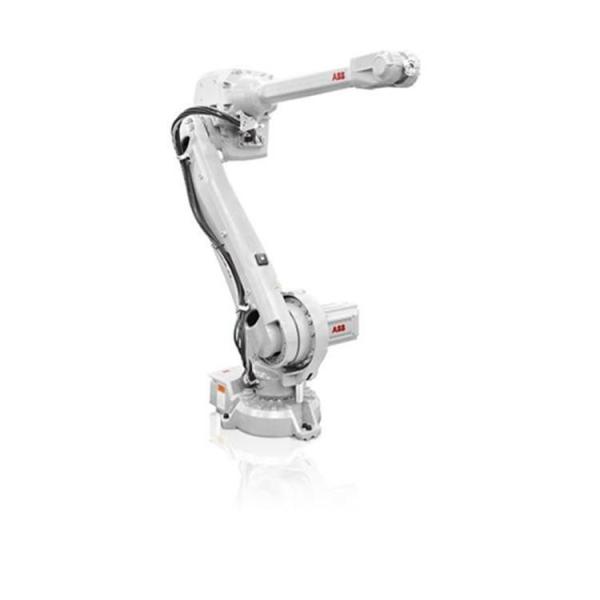

IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality – and that means improved productivity

Shorter cycle times
The IRB 460 is the world’s fastest palletizing robot, capable of significantly shortening cycle times and raising productivity for end-of line and bag palletizing. With a reach of 2.4 meters and 110-kilogram payload capacity, this compact, four-axis robot can achieve up to 2,190 cycles per hour with a 60 kg load That’s 15 percent faster than its nearest rival.

Ultra-wide working range
You can position the IRB 4600 in the most favourable way with regard to reach, cycle time and auxiliary equipment. Flexible mounting with floor, tilted, semishelf or inverted mounting is very useful when you are simulating the best position for your application.

Compactness
The small footprint, the slim swing base radius around axis 1, the fine elbow behind axis 3, the small lower and upper arms, and the compact wrist all contribute to the most compact robot in its class. With the IRB 4600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines, which also increases your output and your productivity.

Best protection available
ABB has the most comprehensive protection program on the market and it will be even further enhanced with the IRB 4600. Foundry Plus includes IP 67, resistant paint, rust protected mounting flange and protection for molten metal spits on non-moving cables on the rear of the robot and extra protection plates over the floor cable connections on the foot.

Optimize and go sharp
To get the IRB 4600 ready for the targeted applications you have access to high performing Workpiece Positioners, Track Motions, and the Motor and Gear Unit range.

Applications:

• Arc Welding Robots
• Assembly Robots
• Cutting Robots
• Dispensing Robots
• Machine Tending Robots
• Material Handling Robots
• Packaging Robots
• Palletizing Robots
