Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Specifications
Place of Origin :
SHG
Brand Name :
ABB
Packaging Details :
ONE ABB large industrial total station robotic 6 axis IRB6700 material handling machine packing with fumigation wooden frame, WG:1705KG
Controller and other parts packing with brown box, WG:75KG
Total WG:1780KG(>VG)
Supply Ability :
5 Piece/Pieces per Month
Price :
$64,454.00/sets 1-9 sets
Model Number :
IRB 6700
Certification :
UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Model :
IRB 6700-200/2.6
Maximum reach :
2600mm
Maximum payload :
200 kg
Pose repeatability (ISO 9283) :
± 0.1 mm
Number of axes :
6
Mounting position :
Floor mounted and inverted mounted
Footprint :
1004mm x 720mm
Weight :
1250 kg
Protection rating :
IP67
Controller :
IRC5 Single cabinet, IRC 5 Panel mounted controlle
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Online support
After Warranty Service :
Video technical support, Online support
Local Service Location :
Egypt, Canada, United Kingdom, Germany, Brazil, Saudi Arabia, Pakistan, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Algeria, Sri Lanka
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Food Shop, Printing Shops
Showroom Location :
Egypt, Canada, United States, France, Germany, Brazil, India, Mexico, Russia, Thailand, Argentina, Chile, Colombia, Sri Lanka, Bangladesh, South Africa, Kyrgyzstan, Nigeria
Port :
Shanghai
Description

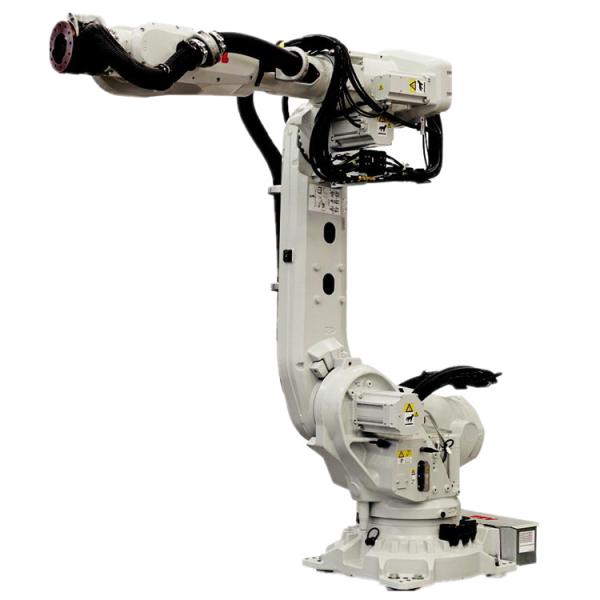

used 6 Axis Robot Arm Used Welding Robot Arm Payload 200kg With IRC5 Single Cabinet Of IRB 6700-200 Industrial Robot

The IRB, 6700 family of robotsis a natural evolution following 40 years of large robot heritage ABB. This 7th generation of largeABB robots features a multitude of next generation improvementderived from intimate customer relationships and exhaustive engineering studies.

Model IRB 6700-200/2.6
Maximum reach 2600mm
Maximum payload 200 kg
Pose repeatability (ISO 9283) ± 0.1 mm
Number of axes 6
Mounting position Floor mounted and inverted mounted
Footprint 1004mm x 720mm
Weight 1250 kg
Protection rating IP67
Controller IRC5 Single cabinet,
IRC 5 Panel mounted controlle

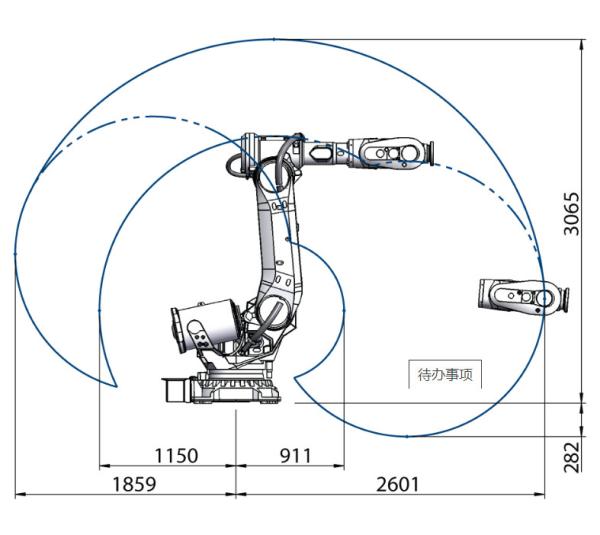

Motion range
A1 170° to -170
A2 85° to -65°
A3 70° tp -180°
A4 300 to -300°
A5 130 to -130°
A6 360 to -360°

Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single CabinetUsed 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single CabinetUsed 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
