Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Yaskawa
Packaging Details :
Industrial robot arm YASKAWA MotoMINI for pick and place 0.5kg Payload 350mm Arm robots
ONE YASKAWA MotoMINI industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:105KG
Controller and other parts packin
Supply Ability :
5 Piece/Pieces per Month
Price :
$16,818.00/sets >=1 sets
Model Number :
MotoMINI
Certification :
CE
MOQ :
1 set
Product name :
Industrial robot arm YASKAWA MotoMINI for pick and place robots
Function :
Multifunctional
Controlled axes :
6
Max. Payload :
0.5kg
repeatability :
±0.02mm
Max. working range R :
350mm
Temperature :
0-45 ℃
Humidity :
20%-80%
Weight :
7kg
Power supply, average :
0.5KVA
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia
Port :
Shanghai
Description

used Industrial robot arm YASKAWA MotoMINI for pick and place 0.5kg Payload 350mm Arm robots

Main Specifications:

Model:MotoMINI
Maximum reach:350mm
Maximum payload:0.5kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:7kg

Payload:

  • 0.5 kg

Horizontal Reach:

  • 350 mm

Vertical Reach:

  • 495 mm

Equipped with the highest acceleration in a small robotic arm, the MotoMini is 20% faster than comparable small robots, reducing cycle time and boosting productivity. Internal cabling and air lines minimize interference with other process equipment, and a variety of mounting options (surface, wall, ceiling, etc.) accommodate high-density factory layouts. Designed for extremely agile, high-speed performance for a wide range of applications, the quiet, compact and precise MotoMini can take your small-part process to the next level.

Applications

    • Assembly
    • Dispensing
    • Inspection
    • Kitting
    • Machine Tending
    • Material Handling
    • Packaging
    • Parts Feeding
    • Sorting

Specification

Product Name Industrial robot arm YASKAWA MotoMINI for pick and place 0.5kg Payload 350mm Arm robots
Model MotoMINI
Application Handling & Assembly
Maximum reach 350mm
Maximum payload 0.5kg
Pose repeatability (ISO 9283) ± 0.02mm
Number of axes 6
Mounting position Floor, ceiling, wall, tilt
Weight 7kg
Protection rating IP67
Controller YRC1000 controller micro

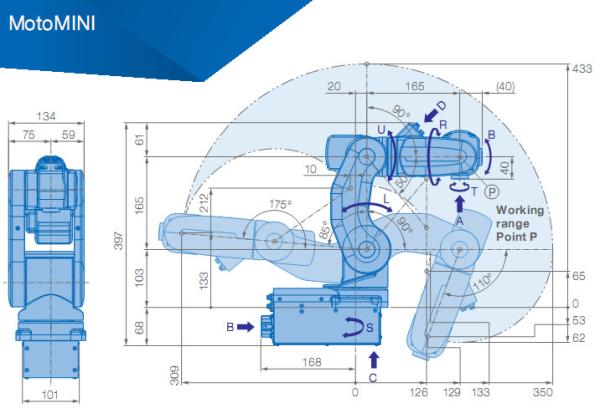

Motion range
S 170° to -170°
L 90° to -85°
U 90° tp -50°
R 140° to -140°
B 210° to -30°
T 360° to -360°

Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots

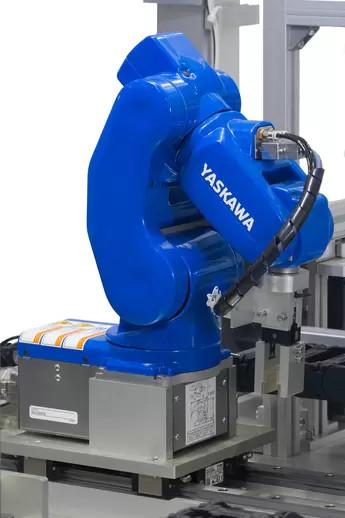

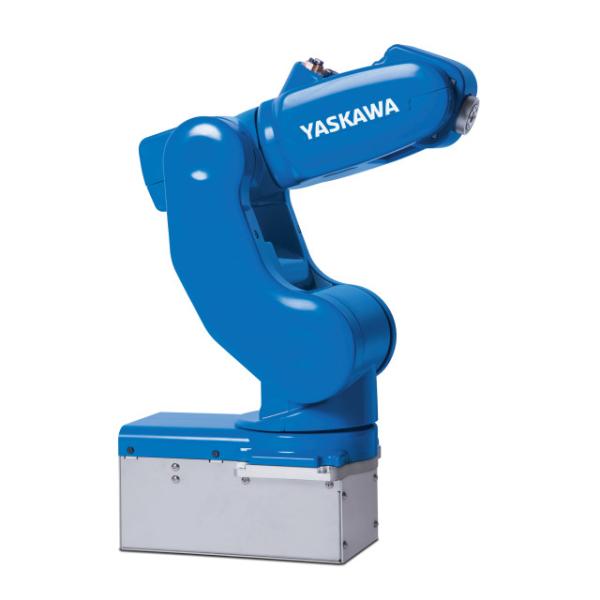

MotoMINI Introduction:

Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots

The MotoMINI 6-axis robot was especially designed for handling and assembly of small work pieces. It reduces the size of your production line and helps to increase productivity.

Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots

This light weight high-speed robot provides a payload of 500 g and a maximum reach of 350 mm. The high repeatability of 0.02 mm offers superior performance in small part handling and assembly. It is easy to change the location of MotoMINI according to the line’s operating condition or the work piece being manufactured.

Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots

This robot is driven by the also small and compact MOTOMAN YRC1000micro controller, which is especially suited to operate small robots.

KEY BENEFITS
• Small and fast
• Lightweight and portable
• Superior performance in small part handling & assembly
• Minimum footprint
• Flexible positioning

Applications:

Handling & Assembly

Company Information

Pick And Place Used Yaskawa Robot 0.5kg Payload 350mm Arm Robots

Our Services

1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
