Specifications
Place of Origin :
Shanghai, China
Brand Name :
kuka
Packaging Details :
ONE KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot With Rated Payload Of 360 kg Palletizing Robot packing with fumigation wooden frame, WG: 2385 kg
Supply Ability :
999 Piece/Pieces per Month
Price :
$92,812.00/sets >=1 sets
Model Number :
KR 360
Certification :
CE
MOQ :
1 set
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location :
Mexico, Thailand, Chile, Kazakhstan, None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC
Condition :
New
Weight :
2385 approx.kg, approx. 2385 kg
Dimension(L*W*H) :
1050 mm x 1050 mm
Power :
80V
Warranty :
1 Year
Weight (KG) :
2385 kg
Maximum reach :
2826 mm
Maximum payload :
472 kg
Rated payload :
360 kg
Pose repeatability (ISO 9283) :
± 0.08 mm
Number of axes :
6
Footprint :
1050 mm x 1050 mm
Mounting position :
Floor
Controller :
KR C4
Teach pendant :
KUKA smartPAD
Port :
Shanghai
Description

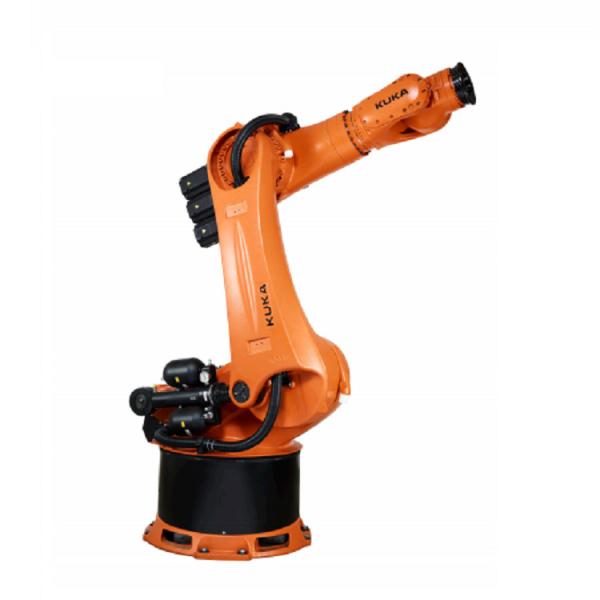

used KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot With Rated Payload Of 360 kg Palletizing Robot

The KUKA KR 360 FORTEC comes in a few variants to better cater to your specific automationneeds. Most all are also available as foundry-versions. These variants include:

The KUKA KR 360 R3080: Payload – 360 kg Reach – 3080 mm

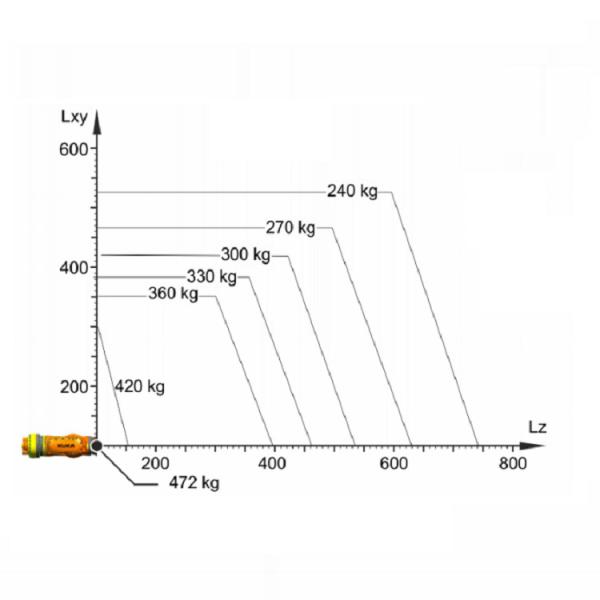

The KR 360 R2830 is designed for a rated payload of 360 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.

Specifications:

Axes 6
Payload: 360 KG (793 lbs)
Reach: 2826 MM (111.25 in)
Repeatability: ±0.15mm (.0059 in)
Robot Mass: 2350 KG (5,180 lbs)
Structure: Articulated
Robot Motion Speed
A1 - 89 °/s (1.55 rad/s)
A2 - 89 °/s (1.55 rad/s)
A3 - 93 °/s (1.62 rad/s)
A4 - 109 °/s (1.90 rad/s)
A5 - 112 °/s (1.95 rad/s)
A6 - 157 °/s (2.74 rad/s)

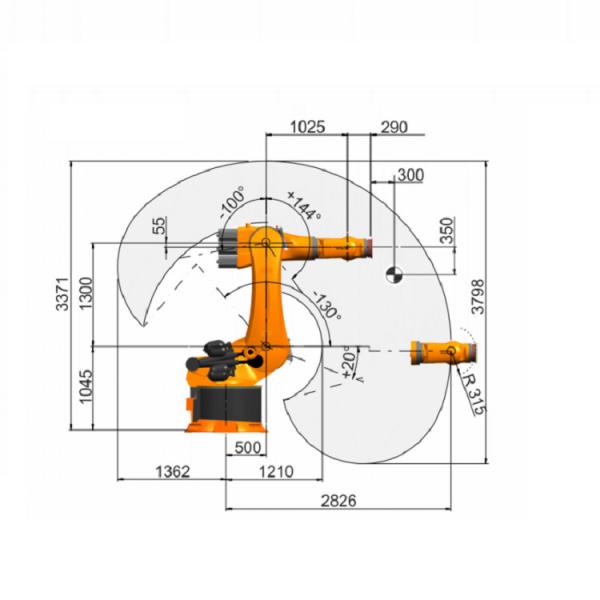

Robot Motion Range
A1 - ±185°
A2 - -110/40°
A3 - -184/60°
A4 - ±350°
A5 - ±118°
A6 - ±350°
