MachineU > China Products > Machinery > Industrial Robots > Articulated Robots
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
Specifications
Place of Origin :
Shanghai, China
Brand Name :
KUKA
Packaging Details :
ONE Industrial robot KR 10 R1420 with 10kg rated payload robotic welding with 6 axis robot arm mig mag welding machine packing with fumigation wooden frame
WG:160KG
Supply Ability :
999 Piece/Pieces per Month
Price :
negotiable
Model Number :
KR 10
Certification :
UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL
MOQ :
1 set
Maximum reach :
1420 mm
Maximum payload :
-
Rated payload :
10 kg
Teach pendant :
KUKA smartPAD
Pose repeatability (ISO 9283) :
± 0.04 mm
Number of axes :
6
Footprint :
333.5 mm x 307 mm
Weight :
approx. 160 kg
Ambient temperature during operation :
5 °C to 45 °C (278 K to 318 K)
Protection rating (IEC 60529) :
IP54
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Online support
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location :
None
Port :
Shanghai
Description

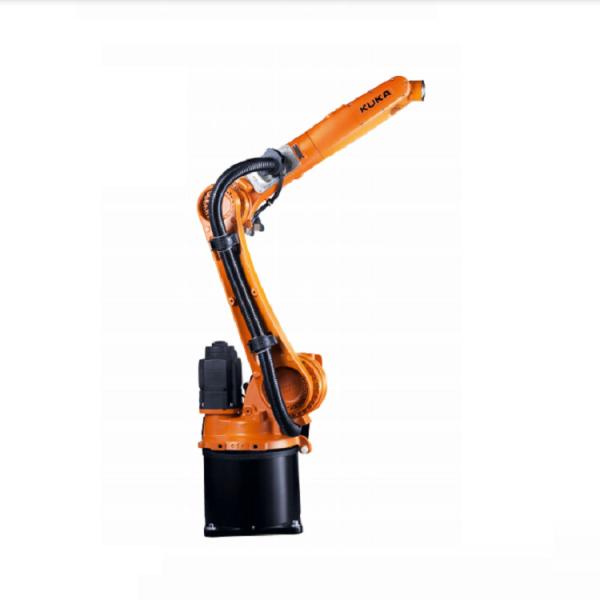

Used Industrial robot KR 10 R1420 with 10kg rated payload robotic welding with 6 axis robot arm mig mag welding machine

The KR 10 R1420 is designed for a rated payload of 10 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.

Main Specifications:

Maximum reach :1420 mm
Maximum payload :10 kg
Pose repeatability (ISO 9283) :± 0.04 mm
Number of axes :6
Footprint: 333.5 mm x 307 mm
Weight approx. :160 kg
Controller :KR C4 compact
Teach pendant :KUKA smartPAD

Specification
Maximum reach 1420 mm
Maximum payload 10 kg
Pose repeatability (ISO 9283) ± 0.04 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Footprint 333.5 mm x 307 mm
Weight approx. 160 kg
Protection rating IP65
Controller KR C4 compact
Teach pendant KUKA smartPAD

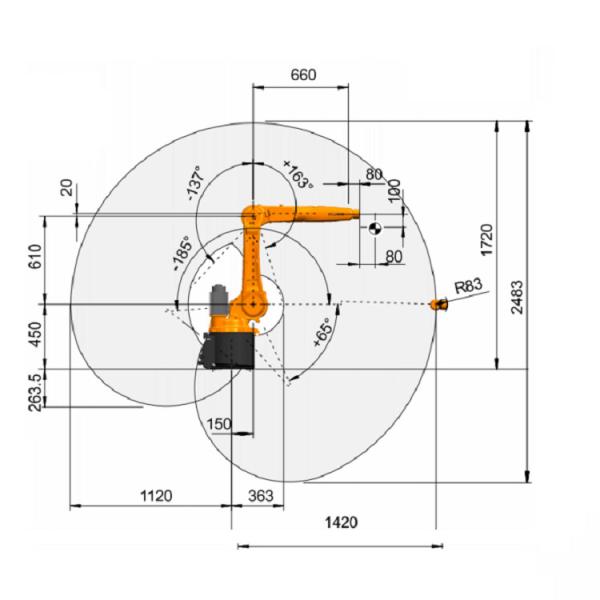

Motion range
A1 ±170°
A2 (-185° / 65°)
A3 (-137°- 163°)
A4 ±185°
A5 ±120°
A6 ±350°

Applications:

Arc welding , Spotwelding , Press tending , Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts

More products:

KUKA robot

1: KR 6 R1820 6KG 6axis welding robot

2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot

3: KR 10 R1420 6 aixs 10kg welding robot

4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot

ABB robot

1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot

2: IRB 1520ID 6 axis 5kg payload for welding

3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing

Collaborative robot

1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad

2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

Product Description

10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
10kg Rated Payload Used Industrial Robot KR 10 R1420 Robotic Welding
Specification
item
value
Name
Industrial robot KR 10 R1420 with 10kg rated payload robotic welding with 6 axis robot arm mig mag welding machine
Machine Type
Welding Manipulator
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
After Warranty Service
Video technical support, Online support
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC
Place of Origin
China
Shanghai
Brand Name
KUKA
Certification
CE
Warranty
1 Year
Video technical support, Online support
Key Selling Points
Patented Product
Weight (KG)
160KG
Voltage
380V
Dimensions
333.5 mm x 307 mm
Usage
Forging Load Welding Other
Maximum reach
1420 mm
Maximum payload
-
Rated payload
10 kg
Teach pendant
KUKA smartPAD
Pose repeatability (ISO 9283)
± 0.04 mm
Number of axes
6
Footprint
333.5 mm x 307 mm
Weight
approx. 160 kg
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Protection rating (IEC 60529)
IP54
Packing & Delivery
ONE Industrial robot KR 10 R1420 with 10kg rated payload robotic welding with 6 axis robot arm mig mag welding machine packing with fumigation wooden frame WG:160KG
Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
Production Name
Industry Robot
Power supply
20 ~ 25V
Protection rating
IP54
Weight
1.25kg

FAQ

Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
