Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding
Specifications
Place of Origin :
China
Brand Name :
kuka
Packaging Details :
6 axis smart robot arm KUKA KR 70 R2100 PA for robot welding with welder and welding torch robot welder with KUKA KRC4 controller and teach pendent industrial robot packing with fumigation wooden box
Price :
$180,000.00/sets 1-9 sets
Model Number :
KR 70
Certification :
CE
MOQ :
1 set
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC
Condition :
New
Horizonal Travel(mm) :
2100MM
Weight :
536 kg, approx. 536 kg
Power :
380V
Warranty :
1 Year
Weight (KG) :
536 kg
Product name :
6 axis smart robot arm KUKA KR 70 R2100 PA robot welder
Model :
KR 70 R2100 PA
Pose repeatability :
± 0.05 mm
Number of axes :
6
Mounting position :
Floor/ Ceiling/Wall
Footprint :
603 mm x 480 mm
Protection rating :
IP65/IP67
Controller :
KR C4 compact
Teach pendant :
KUKA smartPAD
Port :
Shanghai
Description

used smart robot KR 70 R2100 PA pallets robotics with robot gripper KUKA industrial robot

  • Payload: 70 Kg
  • Maximum reach: 2100 mm
  • Construction type: Standard
  • Version environment: Standard
  • Mounting: Angle; Ceiling; Floor; Wall
  • Protection class: IP 65; IP 67

Applications:

Palletising , Painting , Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts , Laser cutting , Glueing - Adhesive bonding

KR 70 r2100 is a 6-axis multifunctional industrial long arm robot of Kr iontec series KUKA. Due to its compact and hollow design, it can provide maximum performance and the best use of workspace. KR 70 r2100 is very suitable for handling up to 70 kg of goods, assembly, packaging and pallets.

More products:

KUKA robot

1: KR 6 R1820 6KG 6axis welding robot

2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot

3: KR 10 R1420 6 aixs 10kg welding robot

4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot

ABB robot

1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot

2: IRB 1520ID 6 axis 5kg payload for welding

3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing

Collaborative robot

1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad

2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

Product image

Used Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot WeldingUsed Smart Robot Arm Used Kuka Robot KR 70 R2100 PA For Robot Welding

Product Description

Product name smart robot KR 70 R2100 PA pallets robotics with robot gripper KUKA industrial robot
Model KR 70 R2100
Maximum reach 2101mm
Maximum payload 70 kg
Pose repeatability (ISO 9283) ± 0.05 mm
Number of axes 6
Mounting position Floor
Footprint 603 mm x 480 mm
Weight approx. 536 kg
Protection rating IP65/IP67
Controller KR C4 compact/KR C5
Teach pendant KUKA smartPAD

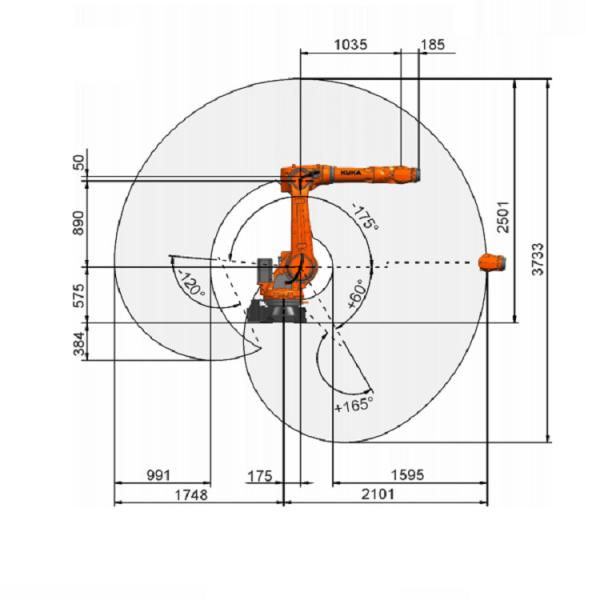

Motion range
A1 ±185°
A2 (-140° / -5°)
A3 (0°- 155°)
A4 /
A5 /
A6 ±350°
