Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ABB
Packaging Details :
One industrial robotic arm ABB IRB 4400 die spraying robot 6 axis robotic arm packing with fumigation wooden frame, WG: 1040 kg
Controller and other parts packing with brown box, WG: 75KG
Total WG: 1115KG(>VG)
Supply Ability :
5 Piece/Pieces per Month
Price :
$26,500.00/sets >=1 sets
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Product Name :
IRB 4400
Number of axis :
6
Max payload :
60KG
Maximum reach :
1960 mm
Pose repeatability(ISO 9283) :
± 0.06 mm
Teach pendant :
IRC5 Single Cabinet
Mounting position :
Floor
Weight :
1040 kg
Material :
Aluminum alloy
Protection rating :
Standard version IP 54, Foundry Plus 2 IP 67
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor
Warranty :
1 Year
After-sales Service Provided :
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location :
France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia
Port :
Shanghai
Description

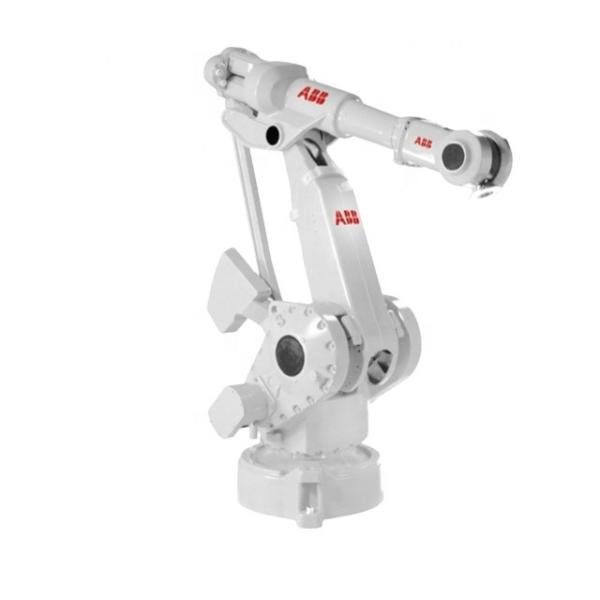

Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm

Main Specifications

The ABB IRB 4400/45 robot is suitable for a variety of manufacturing applications.
It`s load capacityat very high speeds allows the handling of two parts at a time.

Model:IRB 4400
Maximum reach:1960 mm
Maximum payload:60kg
Pose repeatabilit: ± 0.06 mm
Number of axes :6
Weight: 1040 kg
Protection rating: Standard version IP 54, Foundry Plus 2 IP 67

Applications

  • Bonding / Sealing Robots
  • Cutting Robots
  • Deburring Robots
  • Dispensing Robots
  • Drilling Robots
  • Fiberglass Cutting Robots
  • Flux Cored Welding Robots
  • Foundry Robots
  • Grinding Robots
  • Laser Cutting Robots
  • TOP TIG Welding Robots
  • Polishing Robots
  • Refueling Robots
  • Sanding Robots
  • Meat Processing Automation Robots

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

More products:

KUKA robot

1: KR 6 R1820 6KG 6axis welding robot

2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot

3: KR 10 R1420 6 aixs 10kg welding robot

4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot

ABB robot

1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot

2: IRB 1520ID 6 axis 5kg payload for welding

3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing

Collaborative robot

1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad

2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm

Production Name industrial robotic arm ABB IRB 4400 die spraying robot 6 axis robotic arm
Model IRB 4400
Application die spraying robot
Maximum reach 1960 mm
Maximum payload 60kg
Pose repeatability (ISO 9283) ± 0.06mm
Number of axis 6
Mounting position Floor
Footprint 920 x 640 mm
Weight 1040 kg
Protection rating

Standard version IP 54, Foundry Plus 2 IP 67
Controller IRC5 Single Cabinet

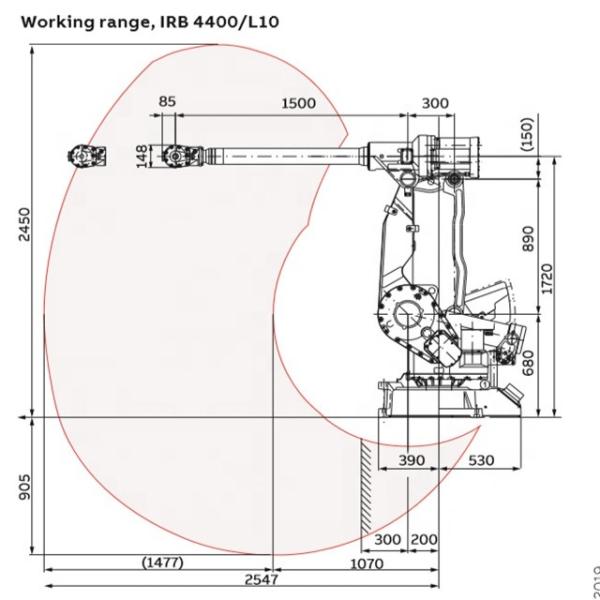

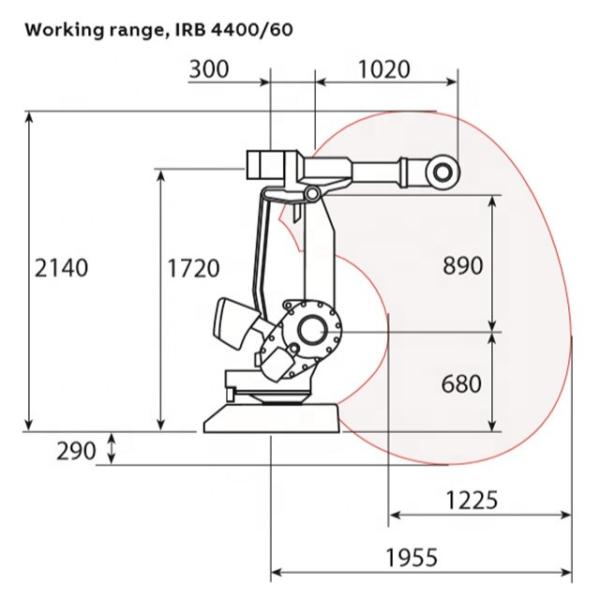

Motion range
A1 +165° to -165°
A2 +95° to -70°
A3 +65° to -60°
A4 +200° to -200°
A5 120° to -120°
A6 +400° to -400°
Detailed Images

Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic ArmUsed Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic ArmUsed Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic ArmUsed Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic ArmUsed Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm

Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
