Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ABB
Packaging Details :
One ABB industrial robot IRB 6660 payload 130kg applying as 6 axis sawing robotic arm packing with fumigation wooden frame, WG: 1730 kg
Controller and other parts packing with brown box, WG: 75KG
Total WG: 1805KG(>VG)
Supply Ability :
5 Piece/Pieces per Month
Price :
$26,500.00/sets >=1 sets
Model Number :
IRB 6660
Certification :
UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Product Name :
IRB 6660
Number of axis :
6
Max payload :
130KG
Maximum reach :
3100 mm
Pose repeatability(ISO 9283) :
±0.15 mm
Teach pendant :
IRC5 Single Cabinet
Mounting position :
Floor
Weight :
1910 kg
Material :
Aluminum alloy
Protection rating :
IP 67, Optional FoundryPlus and cable protection
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor
Warranty :
1 Year
After-sales Service Provided :
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location :
France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia
Port :
Shanghai
Description

Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm

Main Specifications

Model:IRB 6660
Maximum reach:3100 mm
Maximum payload:130kg
Pose repeatabilit: ± 0.15 mm
Number of axes :6
Weight:1910kg
Protection rating: IP 67, Optional FoundryPlus and cable protection

Axes 6
Payload 130 kg
Reach 3100 mm
Repeatability 0.11 mm
Robot Mass 1910 kg

The ABB IRB 6660-130/3.1 robot is a 6-axis robot arm, it offers a 130 kg payload and 3100 mm reach. The repeatability of the ABB IRB 6660-130/3.1 robot is 0.11 mm.

Applications:

  • Appliance Automation Robots
  • Cutting Robots
  • Drilling Robots
  • Foundry Robots
  • Grinding Robots
  • Laser Welding Robots
  • Machine Tending Robots
  • Milling Robots
  • Press Tending Robots
  • Sanding Robots

Main features:

Maximum Load of Robot: 205 kg
Maximum Reach: 1.93 m
Repeatability: 0.07 - 0.11 mm
Controller: IRC5 Single cabinet

Robot Motion Speed:

Axis 1: 130°/s
Axis 2: 130°/s
Axis 3: 130°/s
Axis 4: 150°/s
Axis 5: 120°/s
Axis 6: 190°/s

Axis working range:

Axis 1: +180° to -180°
Axis 2: +85° to -42°
Axis 3: +120° to -20°
Axis 4: +300° to -300°
Axis 5: +120° to -120°
Axis 6: +360° to -360°
Ejes 2-3: +160° to +20°

More products:

KUKA robot

1: KR 6 R1820 6KG 6axis welding robot

2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot

3: KR 10 R1420 6 aixs 10kg welding robot

4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot

ABB robot

1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot

2: IRB 1520ID 6 axis 5kg payload for welding

3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing

Collaborative robot

1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad

2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

Production Name ABB industrial robot IRB 6660 payload 130kg applying as 6 axis sawing robotic arm
Model IRB IRB 6660
Application press tending robotic machine
Maximum reach 3100 mm
Maximum payload 130kg
Pose repeatability (ISO 9283) ± 0.15mm
Number of axis 6
Mounting position Floor
Footprint
Weight 1910 kg
Protection rating

IP 67, Optional FoundryPlus and cable protection
Controller IRC5 Single Cabinet

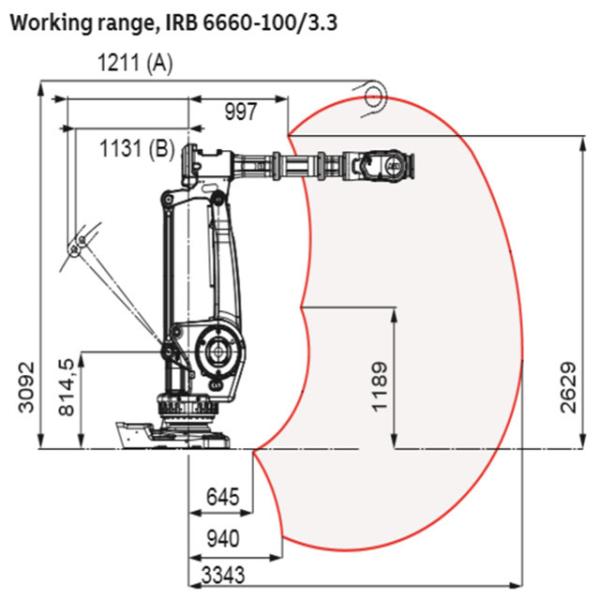

Motion range
A1 180° to -180°
A2 +85° to -42°
A3 +120° to -20°
A4 +300° to -300°
A5 120° to -120°
A6 +360° to -360°
Detailed Images

Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic ArmUsed Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic ArmUsed Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic ArmUsed Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic ArmUsed Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic ArmUsed Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm

Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
