Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Specifications
Place of Origin :
Shanghai, China
Brand Name :
ABB
Packaging Details :
One industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm packing with fumigation wooden frame, WG: 1730 kg
Controller and other parts packing with brown box, WG: 75KG
Total WG: 1805KG(>VG)
Supply Ability :
5 Set/Sets per Month
Price :
$56,500.00/sets >=1 sets
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Model Number :
IRB 6660
Certification :
CE
Condition :
New
Warranty :
1 year
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG) :
1800 KG
Showroom Location :
United States, Italy, France, Germany, Viet Nam, India
Video outgoing-inspection :
Not Available
Machinery Test Report :
Not Available
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Gearbox, Motor
Product Name :
IRB 6660 grinding robot
Number of axis :
6
Max payload :
205KG
Maximum reach :
1900 mm
Pose repeatability(ISO 9283) :
±0.10 mm
Teach pendant :
IRC5 Single Cabinet
Mounting position :
Floor
Weight :
1730 kg
Material :
Aluminum alloy
Protection rating :
IP 67, Optional FoundryPlus and cable protection
Port :
Shanghai
Description

Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm

Main Specifications

Model:IRB 6660
Maximum reach:1900 mm
Maximum payload:205kg
Pose repeatabilit: ± 0.1 mm
Number of axes :6
Weight:1730 kg
Protection rating: IP 67, Optional FoundryPlus and cable protection

Product Description
Production Name industrial robotic 6 axis ABB IRB 6660 press tending robotic machine
Model IRB IRB 6660
Application press tending robotic machine
Maximum reach 1900 mm
Maximum payload 205kg
Pose repeatability (ISO 9283) ± 0.10 mm
Number of axis 6
Mounting position Floor
Footprint
Weight 1730 kg
Protection rating

IP 67, Optional FoundryPlus and cable protection
Controller IRC5 Single Cabinet
Motion range
A1 180° to -180°
A2 +85° to -42°
A3 +120° to -20°
A4 +300° to -300°
A5 120° to -120°
A6 +360° to -360°

Applications:

  • Appliance Automation Robots
  • Cutting Robots
  • Drilling Robots
  • Foundry Robots
  • Grinding Robots
  • Laser Welding Robots
  • Machine Tending Robots
  • Milling Robots
  • Press Tending Robots
  • Sanding Robots

Main features

Maximum Load of Robot: 205 kg
Maximum Reach: 1.93 m
Repeatability: 0.07 - 0.11 mm
Controller: IRC5 Single cabinet

Robot Motion Speed

Axis 1: 130°/s
Axis 2: 130°/s
Axis 3: 130°/s
Axis 4: 150°/s
Axis 5: 120°/s
Axis 6: 190°/s

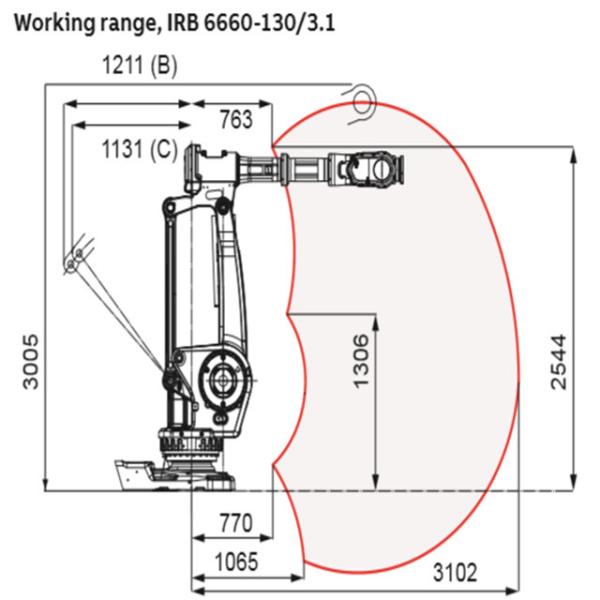

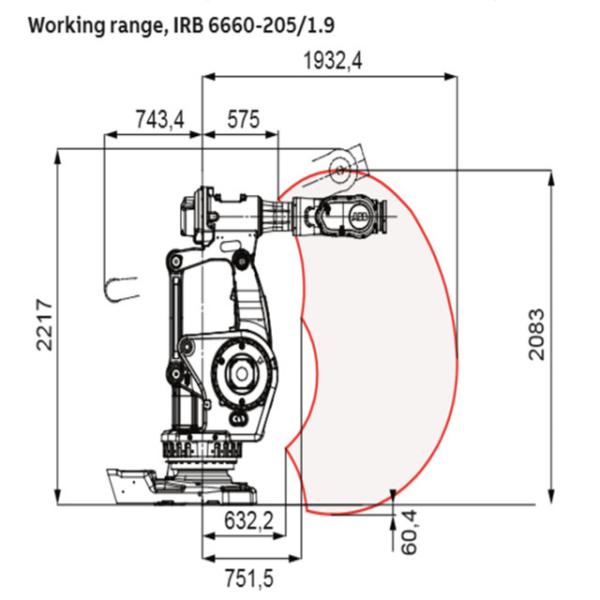

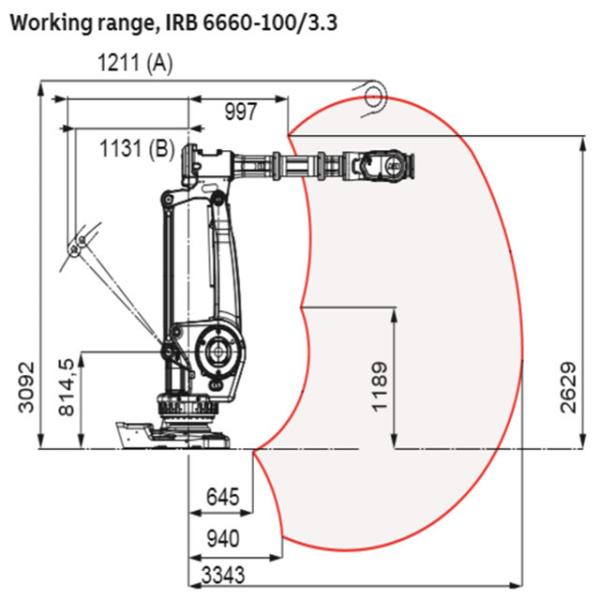

Axis working range

Axis 1: +180° to -180°
Axis 2: +85° to -42°
Axis 3: +120° to -20°
Axis 4: +300° to -300°
Axis 5: +120° to -120°
Axis 6: +360° to -360°
Ejes 2-3: +160° to +20°
Detailed Images

Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot armUsed industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot armUsed industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot armUsed industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot armUsed industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot armUsed industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm

Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
