6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Epson
Certification :
CE
Packaging Details :
Robotic arm price 6 axis C8L Manipulator with long distance Industrial welding robot packing with fumigation wooden frame
Supply Ability :
99 Piece/Pieces per Month
Price :
$30,000.00/sets 1-9 sets
Model Number :
C8L
MOQ :
1 set
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC
Condition :
New
Weight :
52 kg
Power :
380V
Warranty :
1 Year
Product name :
Cnc robot arm C8Lrobot arm 6 axis with long distance 6 dof robot
Repeat positioning accuracy :
+/-0.030mm
Payload :
3kg/8kg
Cycle time :
0.38 sec(3Kg Load )
Installation type :
Table, Ceiling
Protection type :
IP67 rated
Software :
EPSON RC+ 7.0
Robot cable :
3M (Standard), 5m (Optional), 10m (Optional)
Guide force connection :
Guide force connector 6 pin (Future)
Clean type and Antistatic type :
ISO 3 and Antistatic
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
None
After-sales Service Provided :
Online support
Port :
Shanghai
Description
used Robotic arm price 6 axis C8L Manipulator with long distance Industrial welding robot
Axes 6
Payload 8.0 kg
Reach 901 mm
Repeatability 0.03 mm
Robot Mass 49 kg

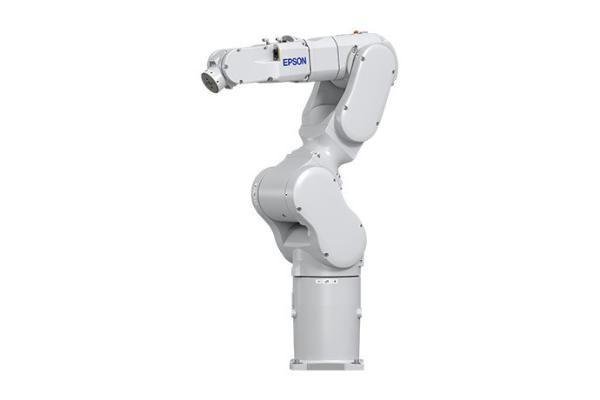

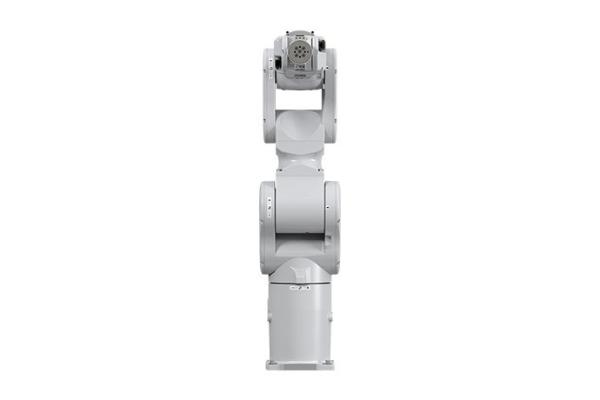

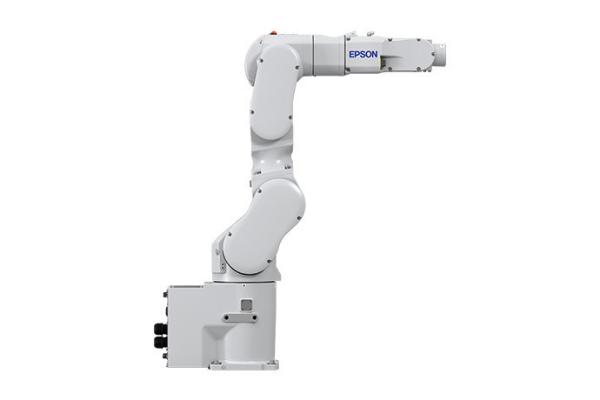

The Epson C8L robot is a 6-axis robot arm, it offers a 8.0 kg payload and 901 mm reach. The repeatability of the Epson C8L robot is 0.03 mm.

Arm Length / Reach:Horizontal Reach (to mounting face): 981mm
Horizontal Reach (to wrist center): 901mmRepeatability:+/-0.030mmPayload (Kg):Max 8 / Rated 3Cycle Time:0.38 sec (3 Kg Payload)Motion Range:

  • J1 (Turning): +/-240 deg
  • J2 (Lower Arm): -158 to +65 deg
  • J3 (Upper Arm): -61 to +202 deg
  • J4 (Wrist Roll): +/-200 deg
  • J5 (Wrist Bend): +/-135 deg
  • J6 (Wrist Twist): +/-360 deg
Allowable Moment of Inertia:
  • J4: 0.47 kg•m2
  • J5: 0.47 kg•m2
  • J6: 0.15 kg•m2
Brakes:All 6 AxesOptional Arm Configurations:
  • Mounting Type: Tabletop, Ceiling
  • Clean & ESD: ISO 3 Clean & ESD
  • Protected Models: IP67 Rated

Motor Wattage:

  • J1: 1000 Watts
  • J2: 750 Watts
  • J3: 400 Watts
  • J4: 100 Watts
  • J5: 100 Watts
  • J6: 100 Watts

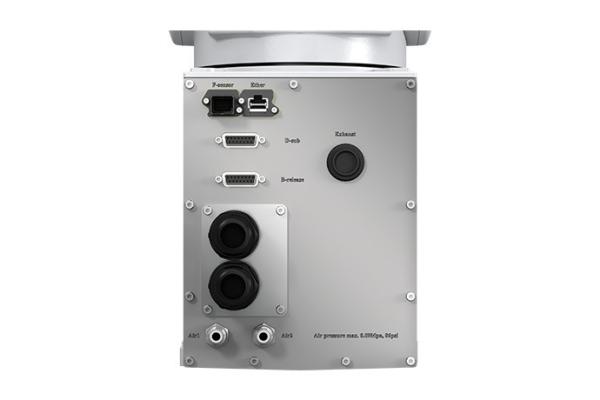

User Lines:
  • Electric: 15 (D-Sub Connector)
  • Ethernet: 8pin RJ45 (Cat5e or equivalent)
  • Force Guide Connection: 6 pin for Force Guidance Connector (future)
  • Air: 2 (6mm)
Environmental:Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)Weight:52 Kg (56Kg IP67 model)Robot Cables:3M (standard), 5M (optional), 10M (optional)Safety Regulations:
  • ANSI/RIA R15.06-1999
  • CE
  • JIS B 8433
  • Machinery Directive: EN ISO 12100-1,EN ISO 12100-2, EN ISO 10218, EN 60204-1,EN ISO 13849-1
  • EMC Directive: EN55011,EN61000-6-2
  • JIS B 8433-1
  • Korean KC Mark compliant
  • RoHS Directive
  • REACH

Robot Options:

  • Vision Guide (CV2 or PV1)
  • DeviceNet, EtherNEt/IP, Profibus, CC-Link
  • Conveyor Tracking
  • Force Sensing
Software Options:
  • .NET Support (EPSON RC+ 7.0 API)
  • GUI Builder

High Performance

  • Industry leading cycle times
  • Tiny footprint and weight 2-3x less than competitors
  • Up to 8Kg payloads while maintaining fast cycle times
  • High precision with repeatability you come to expect from Epson
  • Residual Vibration Technology for crisp motion and faster positioning
