Specifications
Place of Origin :
Shanghai, China
Brand Name :
OTC
Packaging Details :
6 axis robot arm OTC FD-B6L welding robot solution with DM350 DM500 welding machine for mig welding packing with fumigation wooden frame, WG:1705KG
Controller and other parts packing with brown box, WG:75KG
Total WG:1780KG(>VG)
Supply Ability :
5 Piece/Pieces per Month
Price :
negotiable
Model Number :
OTC FD-B6L
Certification :
UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL
MOQ :
100pcs
Number of Axis :
6
Maximum Payload Capacity :
6 kg
Positional Repeatability :
± 0.08 mm
Drive Capacity :
4832 W
Working Range, Arm, J1 (Rotation) :
±170 ° (±50°)
Working Range, Arm, J2 (Lower Arm) :
-155 ° to +100°
Working Range, Arm, J3 (Upper Arm) :
-170° to + 190°
Mass :
287 kg
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Gearbox
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Online support
After Warranty Service :
Video technical support, Online support
Local Service Location :
Egypt, Turkey, United States, France, Peru, Saudi Arabia, Pakistan, Russia, Spain, Thailand, Japan, Malaysia, Morocco, UAE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location :
Egypt, Turkey, United States, Italy, France, Germany, Peru, Pakistan, Spain, Chile, UAE, Colombia
Port :
Shanghai
Description

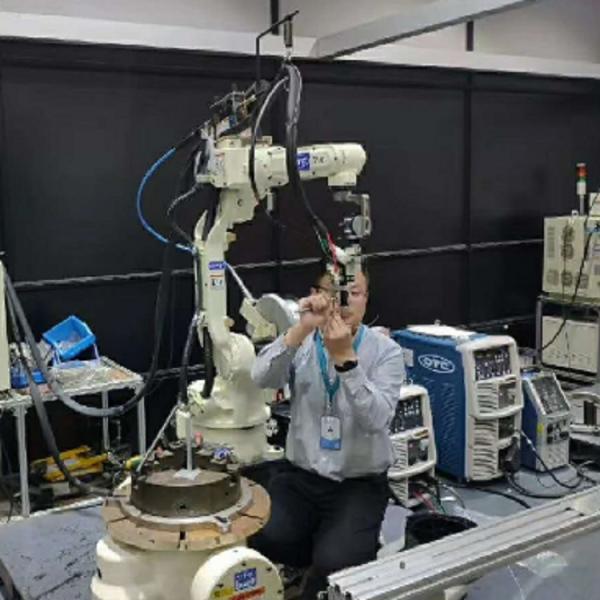

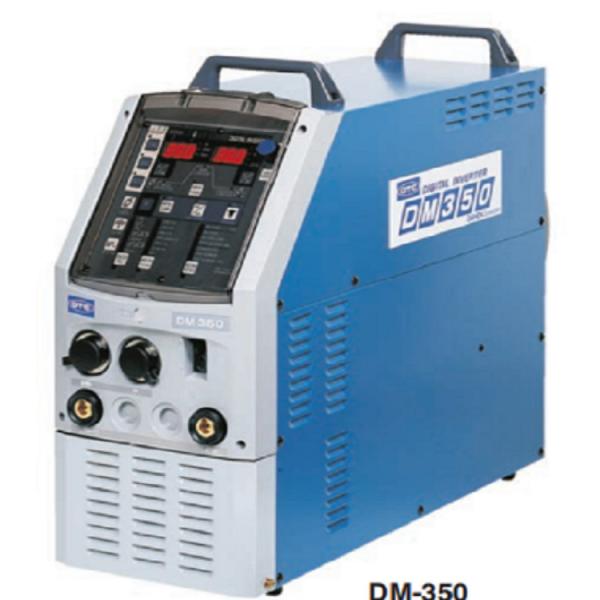

6 axis robot arm OTC FD-B6L used welding robot solution with DM350 DM500 welding machine for mig welding

Due to the industry’s fastest speeds, cycle times are reduced. Built-in wrist motors avoid interference with jigs and workpieces. Designed to avoid interference behind the arm (All cables required for synchro-feed welding are already built into the robot). Maximum payload is 6kg. Can be equipped with various torches and sensors. It is good for handling application.

Feature:

  • FD-B6L by extending the range of the arm, P point movement range of up to 2008mm
  • It can be applied to a relatively large range of operation
  • Long arm structure, higher operating efficiency
  • Coaxial cable built structure, to minimize interference between cables and clamps, easier access to weld attitude
  • Applied to arc welding, handling and other functions in the field, able to cope with the production and processing of various requirements
Specification Value
Number of Axes 6
Maximum Payload Capacity 6 kg
Positional Repeatability ± 0.08 mm
Drive Capacity 4832 W
Working Range, Arm, J1 (Rotation) ±170 ° (±50°)
Working Range, Arm, J2 (Lower Arm) -155 ° to +100°
Working Range, Arm, J3 (Upper Arm) -170° to + 190°
Working Range, Wrist, J4 (Swing) ±155° (+/- 170°)
Working Range, Wrist, J5 (Bending) -45° to + 225°
Working Range, Wrist, J6 (Twist) ±205 ° (+/ 360°)
Maximum Velocity, Arm, J1 (Rotation) 3.40 rad/s (195°/s) (3.05 rad/s (175°/s)
Maximum Velocity, Arm, J2 (Lower Arm) 3.49 rad/s (200°/s)
Maximum Velocity, Arm, J3 (Upper Arm) 3.49 rad/s (200°/s)
Maximum Velocity, Wrist, J4 (Swing) 7.50 rad/s (430°/s)
Maximum Velocity, Wrist, J5 (Bending) 7.50 rad/s (430°/s)
Maximum Velocity, Wrist, J6 (Twist) 11.0 rad/s (630°/s)
Wrist Load, Allowable Moment, J4 (Swing) 10.5 N*m
Wrist Load, Allowable Moment, J5 (Bending) 10.5 N*m
Wrist Load, Allowable Moment, J6 (Twist) 5.9 N*m
Wrist Load, Allowable Moment of Inertia, J4 (Swing) 0.28 kg*m²
Wrist Load, Allowable Moment of Inertia, J5 (Bending) 0.28 kg*m²
Wrist Load, Allowable Moment of Inertia, J6 (Twist) 0.06 kg*m²
Arm operation cross-sectional area 6.37 m² x 340°
Ambient Conditions (0 to 45 °C), 20 ~ 80% RH (No condensation)
Mass 287 kg
Upper arm payload capacity 44.09 lbs. 20 kg
Installation type Floor / Ceiling / Wall
Paint color White (Munsell notation 10GY 9/1)

Mig Welding OTC FD-B6L Second Hand Robot With DM350 DM500 Welding MachineMig Welding OTC FD-B6L Second Hand Robot With DM350 DM500 Welding MachineMig Welding OTC FD-B6L Second Hand Robot With DM350 DM500 Welding MachineMig Welding OTC FD-B6L Second Hand Robot With DM350 DM500 Welding MachineMig Welding OTC FD-B6L Second Hand Robot With DM350 DM500 Welding Machine
