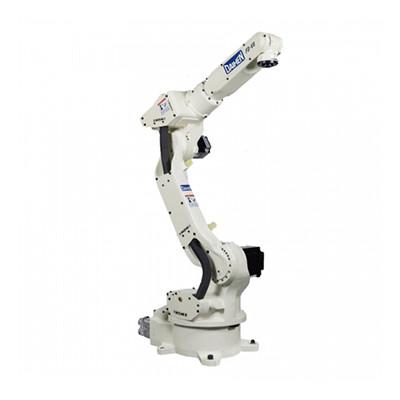

6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
Specifications
Place of Origin :
Shanghai, China
Brand Name :
OTC
Packaging Details :
arc welding robot FD-V8 6 axis mag tig mig welding robot for OTC with DM350 welding source package with material box
Supply Ability :
20 Set/Sets per Month
Price :
negotiable
MOQ :
1 set
Condition :
New
Machine Type :
Welding Robot
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Pressure vessel, Gear
Warranty :
1 Year
Key Selling Points :
Famous brand PLC
Weight (KG) :
321
Voltage :
200-600 V
Current :
40
Rated Duty Cycle :
60%
Usage :
welding, For welding
After-sales Service Provided :
FD-V8 6 axis welding robotic arm r OTC
Type :
Robot
Model :
FD-V8
Reach :
3508mm
Payload :
4kg
Position repeatability RP (mm) :
0.08
Axes :
7
Product name :
OTC Welding Robot
Weight :
321kg
Port :
Shanghai
Description

Used arc welding robot FD-V8 6 axis mag tig mig welding robot for OTC with DM350 welding source

Feature:

  • Due to the industry's fastest speeds, cycle times are reduced.
  • Slimmed lower arm and reduced rotating radius
  • Avoiding the interference with jigs or workpieces.
  • All cables required for Synchro-feed welding are also built in the lower arm.
Product Description:

Specification Value
Number of Axes 6
Maximum Payload Capacity 8 kg
Positional Repeatability ± 0.08 mm
Drive Capacity 3016 W
Working Range, Arm, J1 (Rotation) ± 170° (±50°)
Working Range, Arm, J2 (Lower Arm) - 155° to + 90°
Working Range, Arm, J3 (Upper Arm) - 170° to + 190°
Working Range, Wrist, J4 (Swing) ± 180°
Working Range, Wrist, J5 (Bending) - 50° to + 230°
Working Range, Wrist, J6 (Twist) ± 360°
Maximum Velocity, Arm, J1 (Rotation) 4.19 rad/s (240°/s) (3.32 rad/s (190°/s)
Maximum Velocity, Arm, J2 (Lower Arm) 4.19 rad/s (240°/s)
Maximum Velocity, Arm, J3 (Upper Arm) 4.01 rad/s (230°/s)
Maximum Velocity, Wrist, J4 (Swing) 7.50 rad/s (430°/s)
Maximum Velocity, Wrist, J5 (Bending) 7.50 rad/s (430°/s)
Maximum Velocity, Wrist, J6 (Twist) 11.00 rad/s (630°/s)
Wrist Load, Allowable Moment, J4 (Swing) 17.6 N*m
Wrist Load, Allowable Moment, J5 (Bending) 17.6 N*m
Wrist Load, Allowable Moment, J6 (Twist) 7.8 N*m
Wrist Load, Allowable Moment of Inertia, J4 (Swing) 0.43 kg*m²
Wrist Load, Allowable Moment of Inertia, J5 (Bending) 0.43 kg*m²
Wrist Load, Allowable Moment of Inertia, J6 (Twist) 0.09 kg*m²
Arm operation cross-sectional area 3.11 m² x 340°
Ambient Conditions 0~45°C, 20 ~ 80% RH (No condensation)
Mass 140 kg
Upper arm payload capacity 10 kg
Installation type Floor / Ceiling / Wall
Paint color White (Munsell notation 10GY 9/1)

Our FD-V8 6-axis robot is suitable for Arc & TIG welding, air plasma cutting and material-handling applications.

ROBOT MANIPULATOR

• Offers a wide working range with an independently articulated arm

• Seamless digital connection with all OTC DAIHEN brand welding power supplies

• Improved vibration restraining control provides smooth robot movement

• Built-in mechanical shock sensor for arc-welding

• Single source technology – all components are manufactured by OTC Daihen

• Highly versatile design supports many applications

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation

Product image

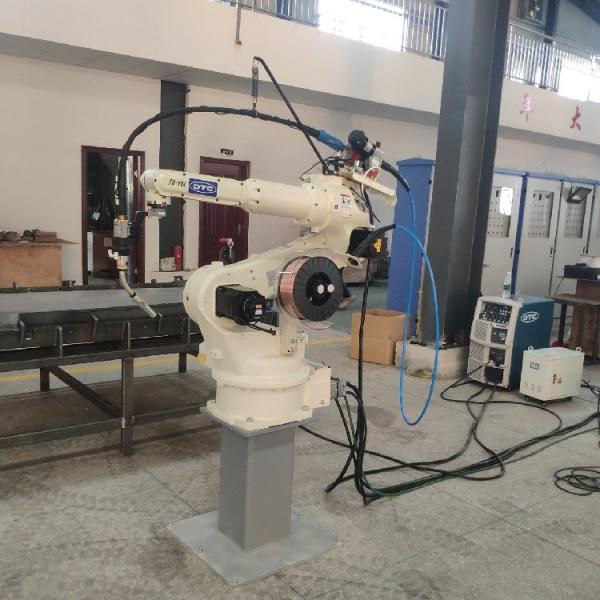

6 Axis Used Welding Robot Mag Tig Mig Welding Robot With DM350 Welding Source
