Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Used Programmable Robot Arm Used Welding Robot For Pick Place
Specifications
Place of Origin :
China
Brand Name :
OTC
Packaging Details :
programmable robot arm OTC FD-V20S robot arm 6 axis with robot controller and teach pendent for pick and place packaged with fumigation wooden box
Supply Ability :
20 Set/Sets per Month
Price :
negotiable
MOQ :
1 set
Condition :
New
Weight (KG) :
321
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine
Warranty :
1 Year
Applicable Industries :
Other
Showroom Location :
None
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Robot
Usage :
For welding
Model :
FD-V20S
Reach :
1.7m
Payload :
20kg
Position repeatability RP (mm) :
0.08
Axes :
7
Product name :
OTC Welding Robot
Weight :
321kg
Port :
Shanghai
Description

Used programmable robot arm OTC FD-V20S robot arm 6 axis with robot controller and teach pendent for pick and place

Feature:

  • Complex 7-axis robot, and take advantage of the technology to synchronize the movement to achieve a simple manual operation
  • Increasing the degree of freedom manipulator position, minimizing the interference reducing peripheral cable
  • Even in the case of complex workpieces and fixtures, you can turn the 7-axis for best gun position, improve the welding quality
  • Welding cables built in the first 7-axis mechanism! Do not worry about interference cable clamp and the workpiece when the teaching job

Item
Specifications
Model name
N20S
Structure
Vertical articulated type
Number of Axes
7
Wrist payload
20kg
Weight
321kg
Load of Upper Arm
20kg(*)
Product Description:

Specification Value
Number of Axes 7
Maximum Payload Capacity 20 kg
Positional Repeatability +/- 0.08 mm (Note 1)
Horizontal Reach 1710mm
Vertical Reach 2913mm
Drive Capacity 6600W
Working Range, Arm, J1 (Rotation) +/- 170°
Working Range, Arm, J2 (Lower Arm) -145°~ +70°
Working Range, Arm, J3 (Upper Arm) -170°~ +160°
Working Range, Wrist, J4 (Swing) +/- 180°
Working Range, Wrist, J5 (Bending) -50°~ +230° (Note 2)
Working Range, Wrist, J6 (Twist) +/- 360° (Note 2)
Maximum Velocity, Arm, J1 (Rotation) 3.40 rad/s {195°/s}
Maximum Velocity, Arm, J2 (Lower Arm) 3.32 rad/s {190°/s}
Maximum Velocity, Arm, J3 (Upper Arm) 3.14 rad/s {180°/s}
Maximum Velocity, Wrist, J4 (Swing) 6.98 rad/s {400°/s}
Maximum Velocity, Wrist, J5 (Bending) 6.98 rad/s {400°/s}
Maximum Velocity, Wrist, J6 (Twist) 10.5 rad/s {600°/s}
Wrist Load, Allowable Moment, J4 (Swing) 43.7 N*m
Wrist Load, Allowable Moment, J5 (Bending) 43.7 N*m
Wrist Load, Allowable Moment, J6 (Twist) 19.6 N*m
Wrist Load, Allowable Moment of Inertia, J4 (Swing) 1.09 kg*m^2
Wrist Load, Allowable Moment of Inertia, J5 (Bending) 1.09 kg *m^2
Wrist Load, Allowable Moment of Inertia, J6 (Twist) 0.24 kg *m^2
Arm operation cross-sectional area 3.91 m^2 x 340°
Environmental Conditions 0 ~ 45°C, 20 ~ 80 %RH (No condensation)
Mass 321 kg
Upper arm payload capacity 20 kg (Note 3)
Installation type Floor type
Paint color White (Munsell 10GY9/1)

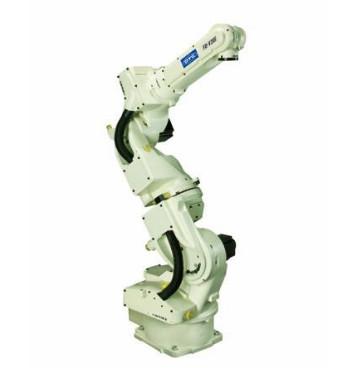

Our FD-V20S 6-axis robot is suitable for arc-welding, air-plasma cutting and material-handling applications. The additional payload supports additional arm attachments such as laser seam tracking or vision guidance cameras.

Click here to download more information.

ROBOT MANIPULATOR

• Rotation of the 7th-axis enables interference avoidance without changing the position and/or attitude of the end-of-arm tool

• Maintains the optimal angle and attitude of the end-of-arm tool at all times, resulting in enhanced weld quality and ease of programming

• Offers a wide working range with an independently articulated arm

• Seamless digital connection with all OTC DAIHEN brand welding power supplies

• Improved vibration restraining control provides smooth robot movement

• Built-in mechanical shock sensor

• Single source technology – all components are manufactured by OTC Daihen.

• Highly versatile design supports most welding applications

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation

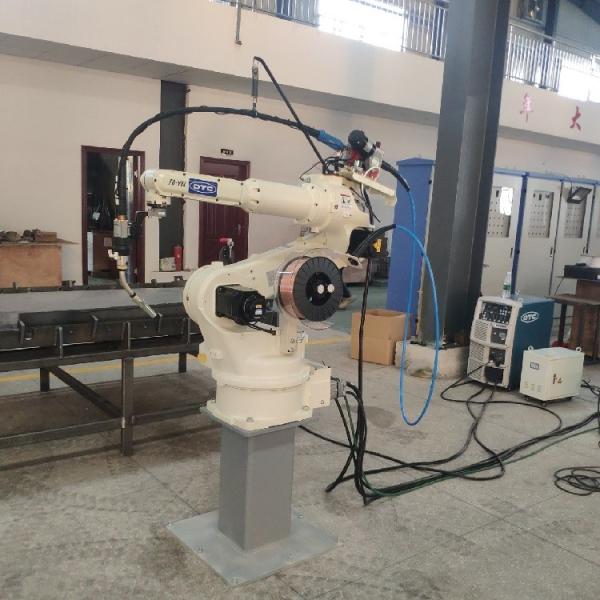

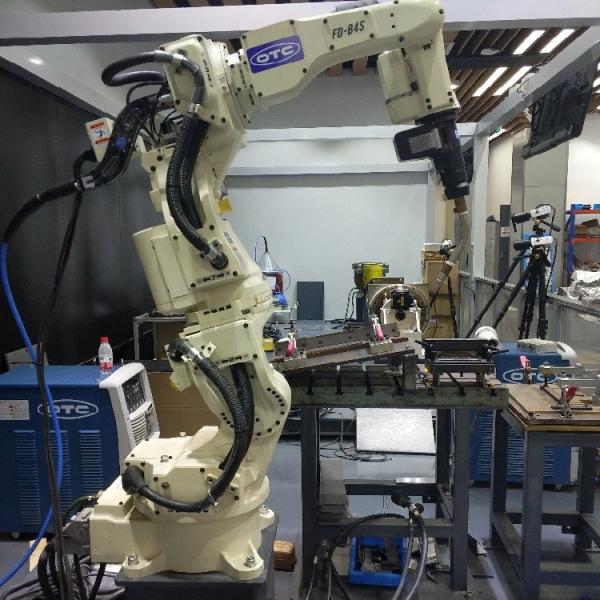

Product image

Used Programmable Robot Arm Used Welding Robot For Pick Place
