GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Yaskawa
Packaging Details :
Industrial robot arm YASKAWA GP400R for pick and place 400kg Payload 3518mm Arm robots
ONE YASKAWA GP400R industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:3605KG
Controller and other parts packing
Supply Ability :
5 Piece/Pieces per Month
Price :
$26,680.00/sets >=1 sets
Product name :
Industrial robot arm YASKAWA GP400R for pick and place robots
Function :
Multifunctional
Controlled axes :
6
Max. Payload :
400kg
repeatability :
±0.5mm
Max. working range R :
3518mm
Temperature :
0-45 ℃
Humidity :
20%-80%
Weight :
3560kg
Power supply, average :
7.0KVA
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia
Port :
Shanghai
Description

used Industrial robot arm YASKAWA GP400R for pick and place 400kg Payload 3518mm Arm robots

Main Specifications:

Model:GP400R
Maximum reach:3518mm
Maximum payload:400kg
Pose repeatability:± 0.5mm
Number of axes:6
Weight:3560kg

KEY BENEFITS

  • Fast, flexible and powerful
  • High payload: 400 kg
  • Wide motion range: 2942 mm
  • Parallel-link construction
  • Heavy-duty bearings for smooth arm rotation
  • Enhanced safety functions

GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots

Specification

Product Name Industrial robot arm YASKAWA GP400R for pick and place 400kg Payload 3518mm Arm robots
Model GP400R
Application Handling & General Application
Maximum reach 3518mm
Maximum payload 400kg
Pose repeatability (ISO 9283) ± 0.5mm
Number of axes 6
Mounting position Floor
Weight 3560kg
Protection rating IP67
Controller YRC1000 controller

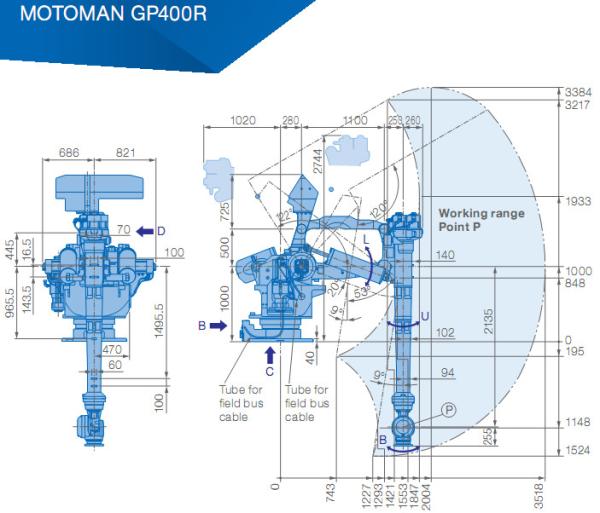

Motion range

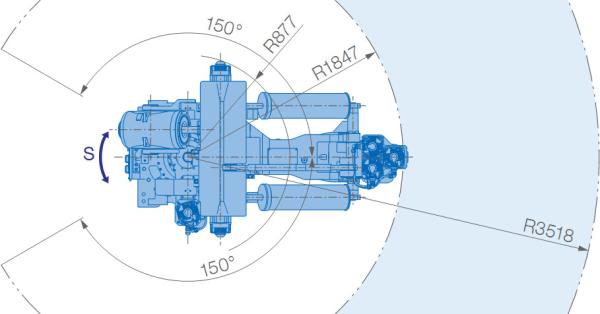

S 150° to -150°
L 20° to -122°
U 120° tp -9°
R 360° to -360°
B 120° to -120°
T 360° to -360°

GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots

GP400R Introduction:

GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots

The flexible MOTOMAN GP400R are 6-axis shelf-mounted robots. Due to this higher position they are able to unload work pieces from above. This saves precious floor space and ensures that the space required for tool changing is kept free.

GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots

Furthermore, the internal cable routing extends the service life of the robots, increases safety and reduces cycle times. They offer high productivity, reliability and maximum performance in the areas of handling, machine tending and press brake tending.

GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots

These robots are controlled by the compact high performance MOTOMAN YRC1000 controller. It is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.

KEY BENEFITS
• Flexible and powerful (400 kg payload)
• Minimum space requirements

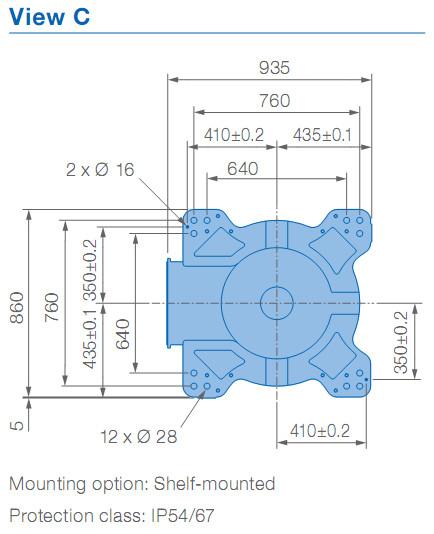

• Shelf-mounted:
– Extended working range
– Simple gripping of components
• Possibility of mounting on machine

Applications:

Handling & General Application

Company Information

GP400R Used Yaskawa Robot For Pick And Place 400kg Payload 3518mm Arm Robots

Our Services

1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
