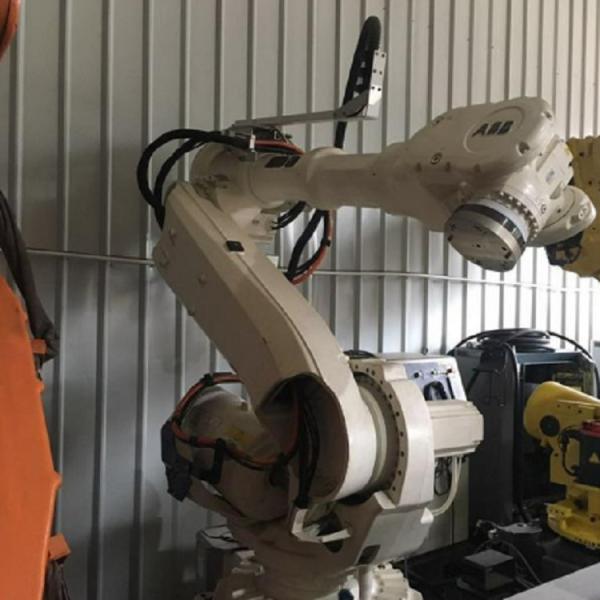

Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Specifications
Brand Name :
ABB
Model Number :
IRB4400
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
999 sets/month
Delivery Time :
6-8working days
Packaging Details :
ONE Industrial Robots FD-V6S As OTC Welding Equipment Of 7 Axis Robot Arm Robotic Welding Machine packing with fumigation wooden frame.
Name :
Second hand ABB IRB4400 6 Axis CNC Robot Arm for painting
Brand :
ABB
Model :
IRB4400
Production Year :
2000-2015
Warranty :
3 month
Reach :
1.96m
Payload :
250kg
Reapetability :
0.04 mm
Axis :
6
Description

industrial painting robot IRB4400 6 axis cnc robot arm assembly for small and medium sized parts in a wide range

Robot version Reach (m) Payload (kg)
IRB 4400-60/1.96 1.96 60
IRB 4400L-10/2.53 2.53 10
Supplementary load
 on axis 2 35 kg
 on axis 3 15 kg
 on axis 4 0-5 kg
Number of axes 6
Protection Standard version IP 54, Foundry Plus 2 IP 67 and high pressure steam washable
Mounting Floor
Controller IRC5 Single Cabinet
Integrated signal supply 23 signals and 10 power on upper arm
Integrated air supply Max. 8 bar on upper arm

Performance (according to ISO 9283)

Robot version Position repeatability RP (mm) Path repeatability RT (mm)*:
IRB 4400-60/1.96 0.06 0.09
IRB 4400L-10/2.53 0.05 0.16
Product Description

IRB 4400 is an extremely fast, compact robot for medium to heavy handling. It has exceptional all-round capabilities which makes it suitable for a variety of manufacturing
applications. The load capacity of 60 kg at very high speeds usually permits handling of two parts at a time.
Fast, compact and versatile industrial robot
IRB 4400 is a rigid, well-balanced design and patented TrueMoveTM function provide smooth and fast movement throughout the entire working range. This ensures very high quality in applications such as cutting. Rapid maneuverability makes the IRB 4400 perfectly matched for applications where speed and flexibility are important. The compact design and protected versions enables use in situations where conventional robots cannot work, such as foundry and spraying applications. The Foundry Plus 2 version is IP 67 protected and can be washed with high pressure steam, which makes it ideal for use in harsh environments.
Product image
