Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Yaskawa
Packaging Details :
6 axis robot arm YASKAWA GP180 pick and place machine 180kg Payload 2702mm Arm industrial robot
ONE YASKAWA GP180 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:1105KG
Controller and other parts
Supply Ability :
5 Piece/Pieces per Month
Price :
negotiable
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
6-8 weeks
Product name :
6 axis robot arm YASKAWA GP180 pick and place machine industrial robot
Function :
Multifunctional
Controlled axes :
6
Max. Payload :
180kg
repeatability :
±0.05mm
Max. working range R :
2702mm
Temperature :
0-45 ℃
Humidity :
20%-80%
Weight :
1020kg
Power supply, average :
5.0KVA
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia
Port :
Shanghai
Description

Used 6 axis robot arm YASKAWA GP180 pick and place machine 180kg Payload 2702mm Arm industrial robot

The six-axis GP180 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. Fast axis speeds and powerful acceleration capabilities, combined with high moment and inertia ratings, equip the GP180 robot to efficiently handle larger and heavier payloads for superior performance.

Main Specifications:

Model:GP180
Maximum reach:2702mm
Maximum payload:180kg
Pose repeatability:± 0.05mm
Number of axes:6
Weight:1020kg

Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot

Specification

Product Name 6 axis robot arm YASKAWA GP180 pick and place machine 180kg Payload 2702mm Arm industrial robot
Model GP180
Application Handling & General Application
Maximum reach 2702mm
Maximum payload 180kg
Pose repeatability (ISO 9283) ± 0.05mm
Number of axes 6

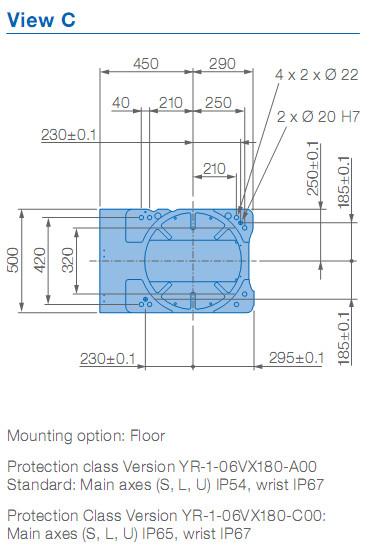

Mounting position Floor
Weight 1020kg
Protection rating IP67
Controller YRC1000 controller

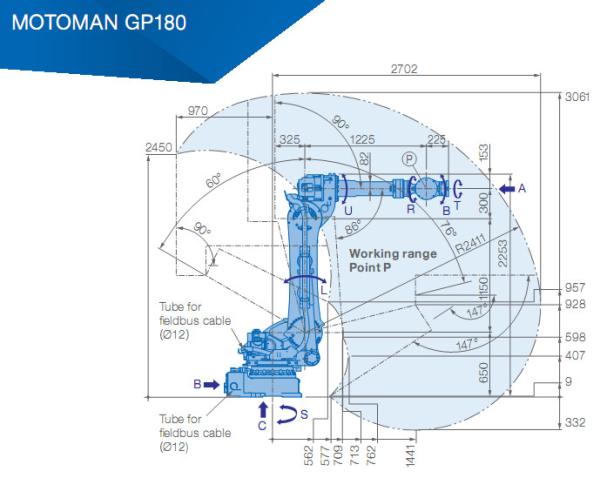

Motion range
S 180° to -180°
L 76° to -60°
U 90° tp -86°
R 360° to -360°
B 130° to -130°
T 360° to -360°

Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot

GP180 Introduction:

Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot

The 6-axis MOTOMAN GP180 is a versatile, high speed robot offering superior performance for a variety of applications, like material handling, machine and press tending.

Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot

Despite of providing a high payload of 180 kg and the wide motion range of 2702 mm, the MOTOMAN GP180 was designed with a width of 625 mm, therefore valuable floor space can be saved.

Used 6 Axis YASKAWA GP180 Pick And Place Machine 2702mm Arm Industrial Robot

With the higher axis operation speed and speed reducer rigidity, a special vibration control system was developed. By reducing cycle times, this system realises high increases in productivity.

KEY BENEFITS
• Fast, flexible and powerful
• High payload: 180 kg
• Wide motion range: 2702 mm
• Maximum performance using minimal floor space

Applications:

Handling & General Application
