Specifications
Place of Origin :
Shanghai, China
Brand Name :
Yaskawa
Packaging Details :
Industrial robot arm YASKAWA GP7 for pick and place 7kg Payload 927mm Arm robots
ONE YASKAWA GP7 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG
Controller and other parts packing with brown
Supply Ability :
5 Piece/Pieces per Month
Price :
negotiable
MOQ :
1 set
Product name :
Industrial robot arm YASKAWA GP7 for pick and place robots
Function :
Multifunctional
Controlled axes :
6
Max. Payload :
7kg
repeatability :
±0.03mm
Max. working range R :
927mm
Temperature :
0-45 ℃
Humidity :
20%-80%
Weight :
34kg
Power supply, average :
1.0KVA
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia
Port :
Shanghai
Description

used Industrial robot arm YASKAWA GP7 for pick and place 7kg Payload 927mm Arm robots

GP7 - Standard Pendant

The advanced programming capability and powerful controller make this robot option ideal for high-performance and more complex tasks.

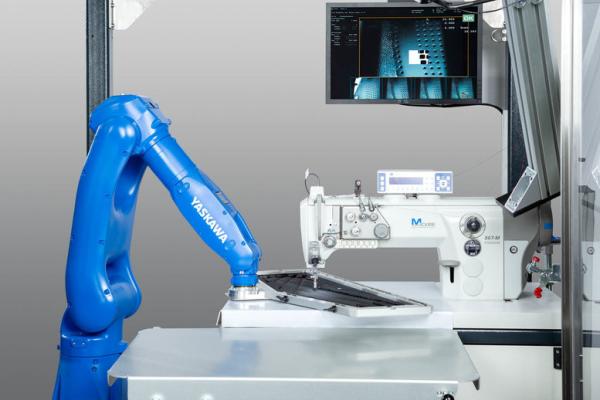

The MOTOMAN GP7, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 7 kg payload, 927 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP7 for use in all kinds of applications, e.g. handling, assembly, pick&place (often in combination with 3D machine vision) and quality inspection.

High IP67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP7 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP7 food grade grease version and CR5 cleanroom class version is also available.

Features:

Applications:

  • Machine Tending, Part Transfer, Assembly

Payload:

  • 7 kg

Horizontal Reach:

  • 927 mm

Vertical Reach:

  • 1693 mm

For controller information, please see the MPiec Robotic Series section.

Main Specifications:

Model:GP7
Maximum reach:927mm
Maximum payload:7kg
Pose repeatability:± 0.03mm
Number of axes:6
Weight:34kg

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

Specification

Product Name Industrial robot arm YASKAWA GP7 for pick and place 7kg Payload 927mm Arm robots
Model GP7
Application Handling & General Application
Maximum reach 927mm
Maximum payload 7kg
Pose repeatability (ISO 9283) ± 0.03mm
Number of axes 6
Mounting position Floor
Weight 34kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller
Motion range
S 170° to -170°
L 145° to -65°
U 190° tp -70°
R 190° to -190°
B 135° to -135°
T 360° to -360°

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

GP7 Introduction:

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.03 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site.

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package.

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics.

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.

KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 927 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance

Applications:

Handling & General Application

Company Information

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots

Our Services

1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
