YASKAWA MPX2600 Industrial Robot Arm For Painting 15kg Payload 2000mm Arm Robots

Specifications

Place of Origin :

Shanghai, China

Brand Name :

Yaskawa

Packaging Details :

Industrial robot arm YASKAWA MPX2600 for painting 15kg Payload 2000mm Arm robots
ONE YASKAWA MPX2600 industrial robot 6 Axis robot arm for painting machine packing with fumigation wooden frame, WG:605KG
Controller and other parts packing with brown b

Supply Ability :

5 Piece/Pieces per Month

Price :

negotiable

Model Number :

MPX2600

Certification :

MOQ :

1 set

Product name :

Industrial robot arm YASKAWA MPX2600 for painting robots

Function :

Multifunctional

Controlled axes :

Max. Payload :

15kg

repeatability :

±0.2mm

Max. working range R :

2000mm

Temperature :

0-40 ℃

Humidity :

20%-80%

Weight :

485kg

Power supply, average :

3.0KVA

Condition :

New

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Core Components :

PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty :

1 Year

After-sales Service Provided :

Free spare parts, Field maintenance and repair service, Video technical support, Online support

After Warranty Service :

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location :

United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea

Applicable Industries :

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company

Showroom Location :

Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia

Port :

Shanghai

Description

Industrial robot arm YASKAWA MPX2600 for painting 15kg Payload 2000mm Arm robots

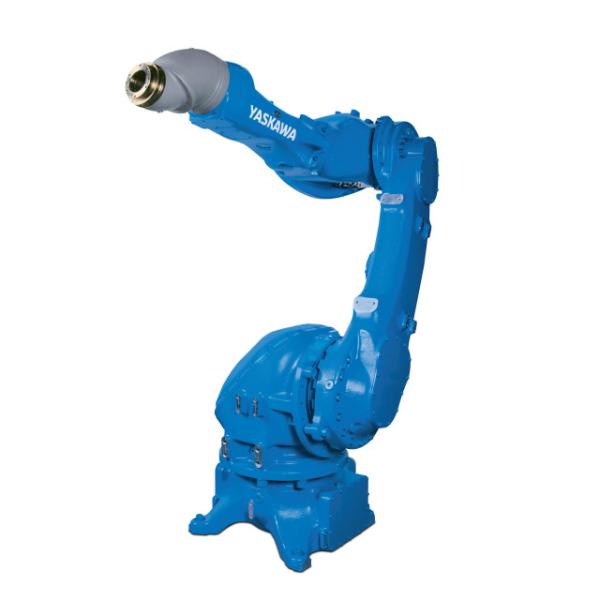

The MOTOMAN MPX2600 painting robot provides a payload of 15 kg, and another 20kg payload capability on the U-Arm, which enables mounting of a large variety of guns and large bells on this medium-sized robot. The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes.

KEY BENEFITS
• High payload (15 kg wrist, 20 arm) for mounting multiple guns and large bells
• Elegant design for optimal tubing and prevention of interferences
• Pressurized enclosure for explosion protection
– Leakage compensation method to achieve positive pressure
– Requires less air than other air flow methods
• Flexible mounting options
– Floor, wall, ceiling
– Three selectable access points for power cables (left, right, back side)
• Optimized range of motion

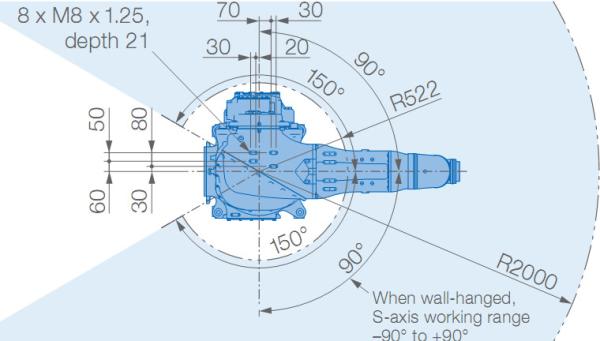

S/L axis designed with no offset for
– Effective use of area under the arm and
– Closer installation of the robot arm to a work piece

Applications:

Painting

Main Specifications:

Model:MPX2600

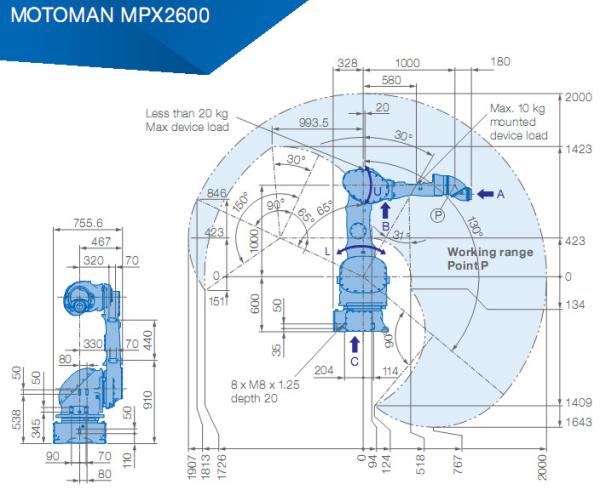

Maximum reach:2000mm
Maximum payload:15kg
Pose repeatability:± 0.2mm
Number of axes:6
Weight:485kg
