Used Industrial Pick And Place Robot YASKAWA SDA5F 5kg Payload 845mm Arm Robots

Specifications

Place of Origin :

Shanghai, China

Brand Name :

Yaskawa

Packaging Details :

Industrial robot arm YASKAWA SDA5F for pick and place 5kg Payload 845mm Arm robots
ONE YASKAWA SDA5F industrial robot 15 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG
Controller and other parts packing with

Supply Ability :

5 Piece/Pieces per Month

Price :

negotiable

Model Number :

SDA5F

Certification :

MOQ :

1 set

Product name :

Industrial robot arm YASKAWA SDA5F for pick and place robots

Function :

Multifunctional

Controlled axes :

Max. Payload :

5kg

repeatability :

±0.06mm

Max. working range R :

845mm

Temperature :

0-40 ℃

Humidity :

20%-80%

Weight :

110kg

Power supply, average :

1.4KVA

Condition :

New

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Core Components :

PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty :

1 Year

After-sales Service Provided :

Free spare parts, Field maintenance and repair service, Video technical support, Online support

After Warranty Service :

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location :

United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea

Applicable Industries :

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company

Showroom Location :

Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia

Port :

Shanghai

Description

used Industrial robot arm YASKAWA SDA5F for pick and place 5kg Payload 845mm Arm robots

The SDA5F is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.

KEY BENEFITS
• 15 axes
• Flexible applications
• Compact design allows maximum performance

Applications:

Flexible applications

Main Specifications:

Model:SDA5F

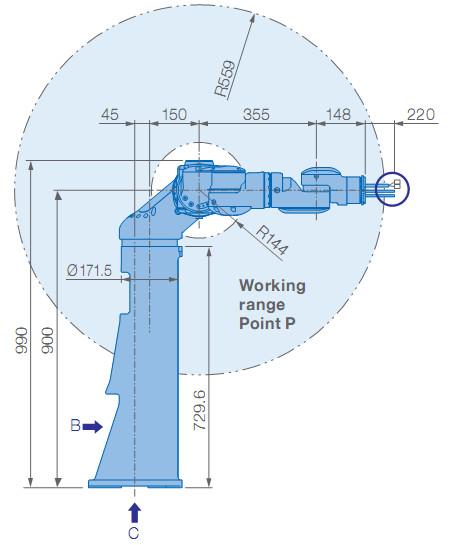

Maximum reach:845mm
Maximum payload:5kg
Pose repeatability:± 0.06mm
Number of axes:15
Weight:110kg
