7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Yaskawa
Packaging Details :
7 axis robot arm YASKAWA SIA5F pick and place machine 5kg Payload 559mm Arm industrial robot
ONE YASKAWA SIA5F industrial robot 7 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:105KG
Controller and other parts pack
Supply Ability :
5 Piece/Pieces per Month
Price :
negotiable
Model Number :
SIA5F
Certification :
CE
MOQ :
1 set
Product name :
7 axis robot arm YASKAWA SIA5F pick and place machine industrial robot
Function :
Multifunctional
Controlled axes :
7
Max. Payload :
5kg
repeatability :
±0.06mm
Max. working range R :
559mm
Temperature :
0-40 ℃
Humidity :
20%-80%
Weight :
30kg
Power supply, average :
1.0KVA
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia
Port :
Shanghai
Description

7 axis robot arm YASKAWA SIA5F pick and place machine 5kg Payload 559mm Arm industrial robot

Main Specifications:

Model:SIA5F
Maximum reach:559mm
Maximum payload:5kg
Pose repeatability:± 0.06mm
Number of axes:7
Weight:30kg

7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm

Specification

Product Name 7 axis robot arm YASKAWA SIA5F pick and place machine 5kg Payload 559mm Arm industrial robot
Model SIA5F
Application Flexible applications
Maximum reach 559mm
Maximum payload 5kg
Pose repeatability (ISO 9283) ± 0.06mm
Number of axes 7
Mounting position Floor, ceiling, wall
Weight 30kg
Protection rating IP67
Controller FS100
Motion range
S 180° to -180°
L 110° to -110°
U 90° tp -115°
R 180° to -180°
B 110° to -110°
T 180° to -180°

7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm

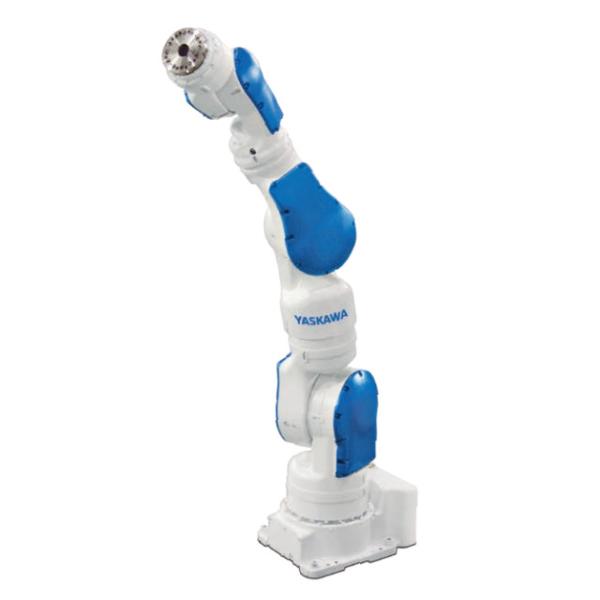

SIA5F Introduction:

7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm

The SIA-series are small and agile 7-axis robots providing "human-like" flexibility of movement and fast acceleration.They distinguish themselves through slim and lightweight design. They offer high payload and big working ranges.

7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm

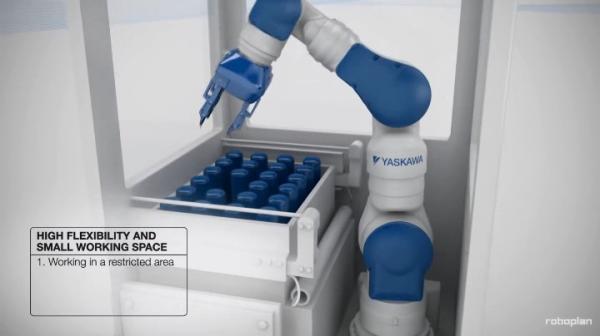

These agile and versatile robots open up a wide range of industrial applications: ideal for assembly, injection moulding, inspection, machine tending and a host of other operations.

7 Axis Used Yaskawa Robot SIA5F Pick And Place Machine 5kg Payload 559mm

This robots are driven by the compact MOTOMAN FS100 controller.

KEY BENEFITS
• 7 axes
• Flexible applications
• Compact design allows maximum performance

Applications:

Flexible applications
