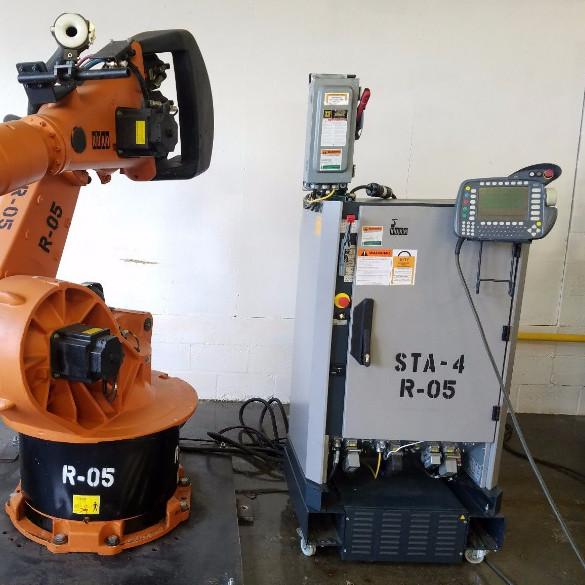

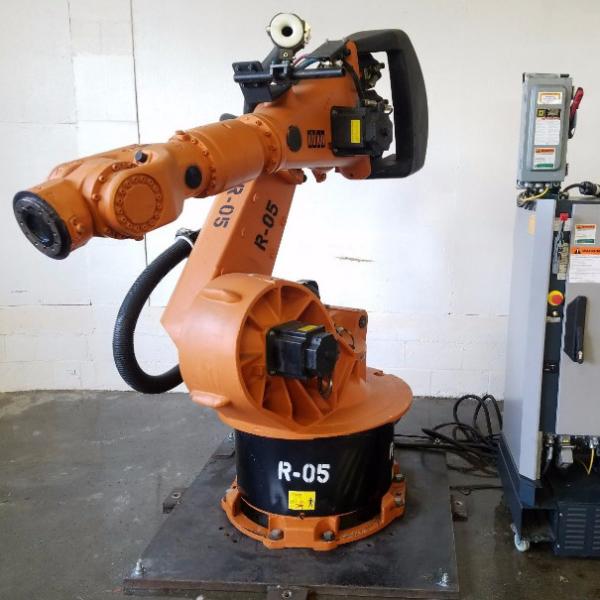

KR 60-3 6 Axis Used Kuka Robot Arm 60 Kg Payload 2033 Reach For Welding
KR 60-3 6 Axis Used Kuka Robot Arm 60 Kg Payload 2033 Reach For Welding
KR 60-3 6 Axis Used Kuka Robot Arm 60 Kg Payload 2033 Reach For Welding
KR 60-3 6 Axis Used Kuka Robot Arm 60 Kg Payload 2033 Reach For Welding
Specifications
Brand Name :
KUKA
Model Number :
KR 60-3
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
999 sets/month
Delivery Time :
6-8working days
Name :
Used KUKA robot arm KR 60-3 robot 6 axis for with 60 kg payload and 2033 reach for welding
Brand :
KUKA
Model :
KR 60-3
Production Year :
2000-2015
Warranty :
3 month
Reach :
2033cm
Payload :
60kg
Reapetability :
0.06 mm
Axis :
6
Description

KUKA robot arm KR 60-3 robot 6 axis for with 60 kg payload and 2033 reach for welding and milling application industrial robot

Product image

Product Description

Product name KUKA robot arm KR 60-3 robot 6 axis for with 60 kg payload and 2033 reach for welding and milling application industrial robot
Model KR 60-3
Max.reach 2,033 mm
Rated payload 60 kg
Rated suppl. load, arm/link arm/rot. column 35 kg/–/–
Rated total load 95 kg
Pose repeatability ±0.06mm
Numberof axes 6
Mounting position Floor
Variant –
Robot footprint 850 mm x 950 mm
Weight (excluding controller), approx. 665 kg
Axis data / Speed with rated
Range of motion payload 30kg
Axis 1 (A1) +/-185° 140°/s
Axis 2 (A2) +35°/-135° 126°/s
Axis 3 (A3) +158°/-120° 140°/s
Axis 4 (A4) +/-350° 260°/s
Axis 5 (A5) +/-119° 245°/s
Axis 6 (A6) +/-350° 322°/s
Operating conditions
Ambient temperature +10°C to +55°C
Protection rating
Protectionrating, robot IP 64
Protection rating, in-line wrist IP 64
Controller KR C4
Teach pendant KUKA smartPAD
