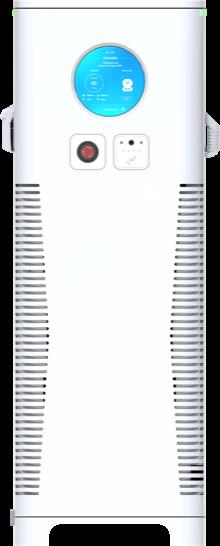

CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23
CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23
CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23
CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23
Specifications
Brand Name :
X
Model Number :
C6
Certification :
EU available
Place of Origin :
CHINA
MOQ :
1
Price :
USD6000-11000
Payment Terms :
T/T, L/C
Supply Ability :
500 units per month
Delivery Time :
45 days
Packaging Details :
Suitable for container loading
Maximum output power :
60 kW
Connection standard :
IEC 61851-23
Cable assembly length :
3.2m; optional 5 / 7 / 10 m
Weight :
325 - 395 kg
Description

120kw electric bus DC charger

The ultimate EV charging experience with DC fast charger

Like all X DC charging stations, the C6 impresses with individual configuration options for the operator: the output power can be selected step by step up to 150 kW.

*The following is the estimated charging time for different car models between 20% with 80% SoC.

  • 82kWh

    37.8mins

    Tesla Model 3

  • 93.4kWh

    42.6mins

    Porsche Taycan 4S

  • 95kWh

    43.5mins

    Audi e-tron

  • 78kWh

    35.7mins

    Polestar 2

  • CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23 Highly Customizable

    Adding more customized branding solution for your brand exposure. Customizing both hardware and software to your specific need. Multiple payment options to choose, equipped with POS machine.

  • CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23 Build to Last

    Robust XCHARGE C6EU can work under cold and hot conditions with water proof technology and its seamlessly design. Making it long lasting and reliable for your business.

  • CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23 Universally Compatible

    C6EU is delivering with CCS and optional CHAdeMO universal connectors and UL listed version also available.

  • CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23 Optimized Efficiency

    Automatic output adjustment mechanism maximizes the overall operation efficiency and utilization. Up to 97% conversion rate by built-in power conversion module.

  • CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23 Unique Cooling System

    Innovative Z-shaped wind channel to avoid rotary airflow, increase cooling efficiency and its ability to cope with climate changes.

  • CHAdeMO Electric Bus Charging Station DC Charger 120kw IEC 61851-23 Visualized Charging Status

    15-inch HD screen visualizes the charging status of charging plugs. 60 LED lights indicate charging status presentable even in remote places or dark environment.

Tech Specs

Configurations
CCS
  • Maximum output power
    60/120/150kW
  • Output voltage range
    200-1000VDC
  • Maximum output current
    200A/250A
  • Connection standard
    IEC 61851-23
  • Cable assembly length
    3.2m; optional 5 / 7 / 10 m
CHAdeMO
  • Maximum output power
    60 kW
  • Output voltage range
    150-500VDC
  • Maximum output current
    125 ADC
  • Connection standard
    CHAdeMO
  • Cable assembly length
    3.2m; optional 5 / 7 / 10 m
General Specifications
Technical parameters
  • Dimensions (LxWxH)
    615 x 740 x 1750 mm
  • Connector type
    Combo-2 / CHAdeMO
  • Efficiency
    96% (at a nominal power output)
  • Total Harmonic Distortion (THD)
    < 5%
  • Ventilation system
    Centrifugal fans with exchangeable air filters
  • LED and screen
    LED indicators + 15 inch visible HD screen / optional: 15 inch touchscreen
  • Weight
    325 - 395 kg
  • Maximum output performance
    60 - 150 kW (in 30 kW steps)
  • Input voltage
    3-phase 400 VAC +/- 10 %, 50/60 Hz
  • Power factor
    Internal 230 V Schuko Service socket
  • Power metering
    AC meter with MID certificate / DC meter with PTB approval (optional)
Communication
  • Communication protocol
    OCPP 1.6 (2.0 ready) JSON web socket or XCHARGE protocol
  • Network connection
    GPRS / 3G / 4G / LAN / WIFI (optional)
  • Operation system
    Android
  • Authentication method
    RFID / QR code / remote command / credit card
Environmental conditions
  • Operational temperature range
    -20°C - 50°C in rated power
  • Noise level
    < 60 dB
  • Operational humidity range
    5 % to 95 % non-condensing
Safety characteristics
  • IP Rating
    IP54
  • Residual current protection switch (RCD)
    Type A + integrated 6 mA DC fault detection
  • Access protection
    Half cylinder lock 30/10
  • IK Rating (Mechanical Impact)
    IK10
  • Safety protection
    Over/Under voltage-, Overload-, Short Circuit-, Anti-access-, Earth leakage-, Lightning-, Overheat-protection
Standards
  • IEC, ISO, DIN
    IEC 61851-1:2011, IEC 61851-23:2014, IEC 61851-24:2014, IEC 62196-3:2014, ISO 15118, DIN 70121-2014

C6 is ideal for
