30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ3259N384PB3
Place of Origin :
China
MOQ :
1
Price :
USD 29,800 per Unit
Payment Terms :
T/T
Supply Ability :
50 units per month
Delivery Time :
20 days
Packaging Details :
Suitable for RORO or Bulk cargo ship
Name :
Used & Refurbished 50Ton 30 Cubic Sinotruk HOWO Mining Dump Truck 6*4 Euro 3
Key Words :
Sinotruk, Mining Truck, Dump Truck, 30 Cubic Meter, Used Truck
Model Year :
2016
Mileage :
67,000km
Engine :
371-420HP
Emission Standard :
Euro 2
Tires :
10 pcs
Description

Used & Refurbished 40Ton 30 Cubic Sinotruk HOWO Mining Dump Truck 6*4 Euro 3

Key words:Sinotruk, Mining Truck, Dump Truck, 30 Cubic Meter, Used Truck

The self-unloading method of the car is rear unloading. Optional cargo compartment appearance structure. The engine preheating device on the table on the right side of the cab and in front of the air filter can be omitted; the cooling water tank of the braking system on the right side of the frame and behind the battery box can be omitted. There is a one-to-one correspondence between the vehicle length and the rear overhang and departure angle parameters. When the length of the vehicle is 8560mm, the length of the cargo compartment is 5600mm and 5800mm; when the length of the vehicle is 8630mm, the length of the cargo compartment is 6000mm. The material used for the side guards is Q235A, and the connection method is bolted;

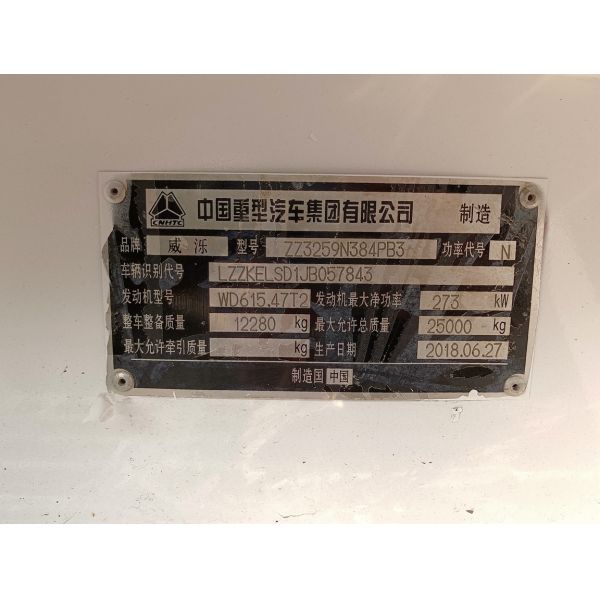

Chassis model ZZ3259N384PB3
Cab HW7D cab without sleeper, two seats, adjustable driver's seat, with heating and ventilation system, outer sun visor, seat belt, adjustable steering wheel, air horn, air conditioner, lateral stabilizer, four-point support for full floating suspension+ Shock absorption
engine

Manufacturer: Sinotruk

Four-stroke direct injection diesel engine

Engine model: WD615.47T2, 371 HP; D12.42T2,420;

Emission standard: Euro 2

In-line six-cylinder water-cooled turbocharged inter-cooled

Displacement: 9.726 L
Gearbox HW21712, 12F & 2R, with PTO
steering system ZF Power Steering Model ZF8118, power assisted hydraulic steering
Front bridge

HF12,1x12000 KGS

Double-section beam steering
Rear axle

AC26, 2x26000 KGS

Central single-stage reduction axle housing, wheel hub restoration, differential lock between wheels and axles.

Speed ratio: 10.47, 8.51
Chassis

Front suspension: 1500mm, semi-elliptical leaf spring and shock absorber cavitation

Rear suspension: 1000mm, overall balance shaft balance suspension, single-sided oblique installation of 4 bolts
Braking System

Brake: dual-circuit pneumatic brake

Parking brake (emergency brake): spring energy, compressed air works on the front axle and rear wheels.

Auxiliary brake: engine exhaust brake
Power Systems

Working voltage: 24 volts, negative ground

Starter: 24 volts, 5.4 kilowatts

Generator: three-phase, 28 V, 1500 W

Battery: 2×12V, 165AH

Cigarette lighter, horn, headlight, fog light, brake light, indicator light and reversing light

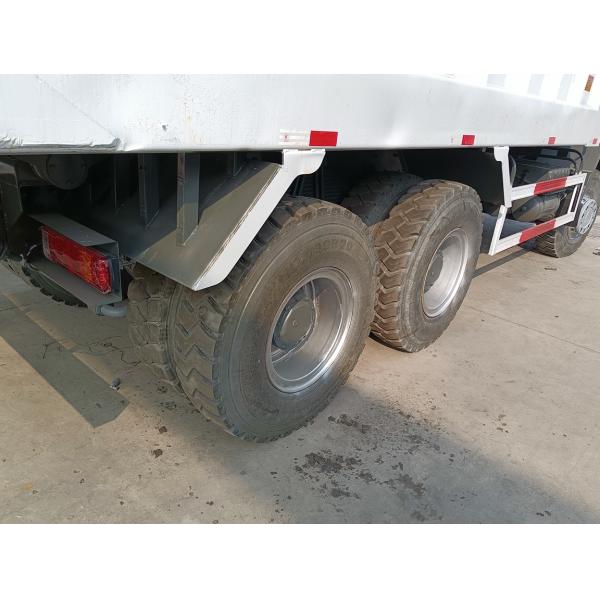

tire 14.00-25, with a spare tire
tank 500L
Cargo box Length: 6M; Width: 2.7M; H Height: 1.9M. 30 cubic meter
Vehicle size 9045*3200*3940 mm

30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3

Company OVerview

Beroad Motors mainly focus on automible business. During decades of auto business experiences, Beroad has gained many resources for brand new and used vehicles as well as it's technology and applications.
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
30 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 330 Cubic Meter 371-420HP HOWO Mining Dump Truck 6*4 Euro 3
