Specifications
Brand Name :
BANGBO
Model Number :
JBT30-8008B3
Certification :
ISO90001.SAE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 units per month
Delivery Time :
7-20 working days
Packaging Details :
RORO ship, Cargo bulk ship
Engine type :
Diesel
Theoretical output :
30M3/H
Max Pressure :
8Mpa
Oil tank capacity :
170L
Max. vertical conveying distance :
100M
Max. horizontal conveying distance :
300M
Total Power :
62kw
Made year :
2021
Total Weight :
5100 kg
Dimensions(L*W*H) :
5100* 2200 *3150mm
Description
New Concrete Mixer With Pump/Concrete Pump Truck Rental Rates

According to the Simple operation

With the whole machine could be handle by one person Extremely saving the labor and employee

Get benefit from the muti-functional that Integrated the mixing and pumping by one machine, which its Intelligent muti-function design have solved the large manpower problem in normal construction projects


Low invest and risk,Other concrete pump truck,concrete pump and concrete batching plant was Unnecessarily


More 4-5 times work efficiency, short period of return profit than normal pump,large particle of all kinds of aggregate like coarse sand, river sand and the red sand can be easily pumped, In view of the scientific ratio of the self-mixing ingredient as known as 4-5 fingers refers to a reasonable ratio.


More Safer; Keep more security by easily pumped 20 floors or more


More efficient: 0.75m3 loading hopper, which its stable structural design and large volume have obviously improved overall efficiency


More stability: strictly regulate the process and make sure zero- failure rate


More reliable: 70 meters for vertical distance and 300 meters for horizontal distance as high-perform capability

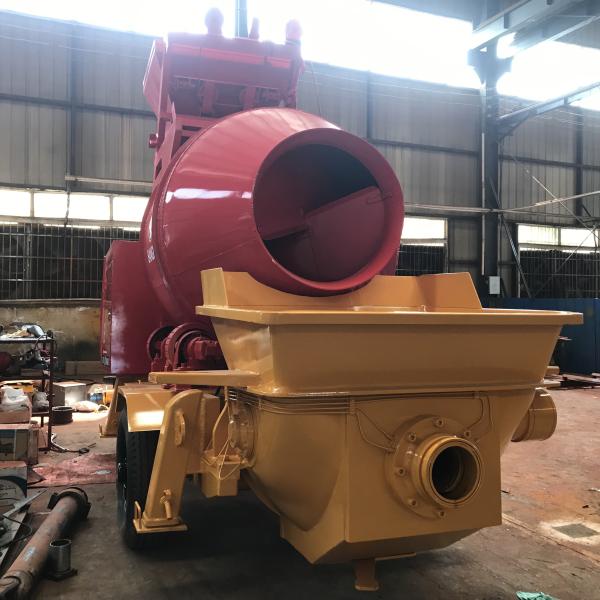

PRODUCTION NAME B3 Diesel
Concrete Mixer Pump
TECHNICAL PARAMETER
TYPE DIESEL
DISTRIBUTE VALVE "S" VALVE
DIESEL BRAND WEICHAI
COOLING FORM WATER COOLING
POWER KW 72
MAX THEROTIC OUTPUT M3/H 30
MAX THEROTIC DISTANCE HORIZONTAL M 200
VERTICAL M 70
MAX DIA.OF AGGREGATES COBBLE MM 50
MACADAM MM 40
MAIN HYD. PUMP BRAND SET KAWASAKI
MAIN HYD. PUMP DISP. ML/R 112.00
MAIN HYD.PRESSURE BAR 320.00
MAX PUMPING DISCHARGE PRESSURE BAR 80
MIXER ROTARY SPEED R/M 15
MAIN CYLINDER MM 100/70
DELIVERY CYLINDER MM 200
OIL TANK CAPACITY L 170
OUTLET OPENING DIAMETER MM 180
INNER DIA OF DELIVERY PIPE MM 125
LIFTING HOPPER CAPACITY L 450
DRUM MIXER MODEL L JS500
CAPACITY OF DISCHARGE L 800
DIMENSION(L*W*H) MM 5500*2000*3600
WEIGHT KG 5900
QUANTITY IN 20FT CONTAINER SET 1

30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation30M3/H JBT30 New Concrete Pump , Hydraulic Concrete Pump Easy Operation

Q: What is your main products?

A: Truck-mounted concrete pump, Concrete pump truck,Concrete line pump, Concrete mixer truck, Concrete pump spare parts, Crane and Lubricate Oil.

Q: How is the quality of your products?
A: We have more than 10 years of repairing experience on concrete machines. According to the national and international standards, all of our machines are inspected and maintained carefully and strictly by our skillful workers , we will test each equipment until it works excellently before delivery. We guarantee that every machine we delivery to our customers are in good performance and high quality.

Q: How is the price?

A: We are specialized in refurbishing concrete machines ,and have lots of customers allover the world with our best price, we can give you a lower price because of our primary source.

Q: Will you provide after-sale service?
A: Yes. The warranty of our new machines is 12 months, and used ones are1 month, other than that we have a professional after-sale service team to solve your problems thoroughly and promptly.

Q: How about your service of the concrete pump spare parts?

A: We are dedicated to provide our clients concrete pumps spare parts with the highest quality,exact fitness and fast deliveries and services. Customers are guaranteed that once they submit the spare parts

Request or products name list to me,the requirement will be handled quickly and appropriately.
