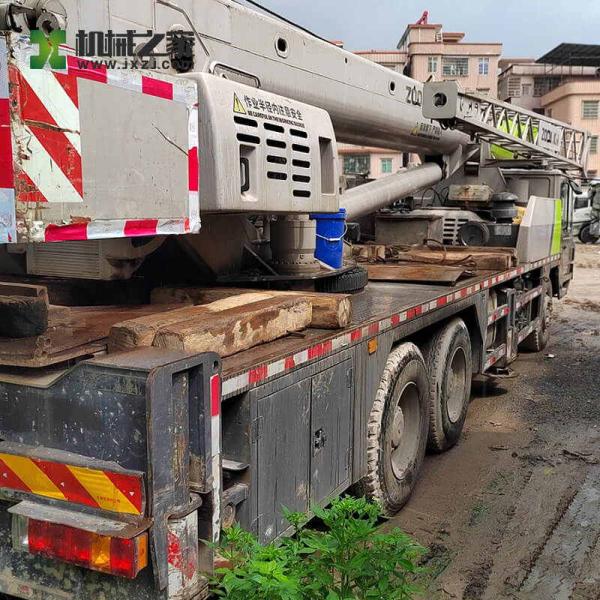

Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
Specifications
Brand Name :
Zoomlion
Model Number :
ZLJ5302JQZ25V
Certification :
CE, ISO7501
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Status: :
Used
Max. Lifting Height: :
11 - 47m
Max. Lifting Weight: :
25ton
Axle No.: :
3
Jib boom: :
2 Section
Production date: :
2016
Description

Used Zoomlion Truck Crane Zoomlion ZLJ5302JQZ25V Second Hand Truck Mobile Crane

Production Details:

Model NO.

 ZLJ5302JQZ25V Boom Type Telescopic

Max. Rated Lifting Capacity

 25000 kg Max. Lifting Height of Jib 39m

Max Gradeability

 37% Working Diameter 23m

Transport Package

 Complies with Min. export packaging requirements Specification 12700×2500×3450mm

Driving mileage

 38381.4Km Working hours 12088.5h

Trademark

 Zoomlion Place of Origin China

HS Code

 Supply Capacity 10 Units Per Month

  • Full-slewing, telescopic boom type, hydraulic proportional control five-section boom truck crane.
  • Its chassis adopts the company's own full drive three axles special chassis, discharged from Guochuan, also has a wide field of vision.
  • Ensure that the working ability of each actuator can be fully utilized, to preventing the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe,
  • Uses the newest hydraulic proportional reversing valve with load feedback and quadruple gear pump system. Equipped with relief valve, balance valve, hydraulic lock, brake valve and other safety devices.
  • Equipped with a variety of safety devices, including torque limiters and a complete lighting system, that can ensure the safety and reliability of the work, also facilitate night work.
  • Exhaust emissions comply with Euro III, its safety devices meet the requirements of CCC certification.

Product Parameters:

Item

Value

Remark
Working performance Max. rated gross lifting capacity (kg) 25000
Max. load moment of the basic boom (kN.m) 980
Max. load moment of the longest main boom (kN.m) 494
Max. lifting height of the basic boom (m) 11.0
Max. lifting height of main boom (m) 39

Boom deformation is not considered
Max. lifting height of jib (m) 47.0
Working Speeds Max. speed of single rope (main winch) (m/min) 120 At fourth layer
Max. speed of single rope (auxiliary winch) (m/min) 170 At second layer
Boom derricking up time (s) 40
Boom telescoping out time (s) 80
Max. slewing speed (r/min) 0～2.2
Traveling parameters Max. travel speed (km/h) 78
Max. gradeability (%) 37
Min. turning diameter (m) 22
Min. ground clearance (mm) 220
Limits for exhaust pollutants and smoke Conform to related standards GB3847-2005 GB17691-2005 Phase III
Oil consumption per 100 km (L) 45
Weights Deadweight in traveling condition (kg) 31700
Complete vehicle kerb mass (kg) 31570
Front axle load (kg) 6900
Rear axle axle load (kg) 24800
Dimensions Dimensions (L×W×H) (mm) 12700x2500x3450
Longitudinal distance of outriggers (m) 5.36
Outrigger lateral distance (m) 6.1
Main arm length (m) 10.4~39.2
Main boom elevation angle (°) -2～80
Jib length (m) 8
Jib Mounting Angle (°) 0 , 30
Chassis model zlj5325
Type Class II
Engine Model WP10.375N
Rated power (kW/r/min) 199/2200
Max. output torque (N.m/r/min) 1100/1300~1600
