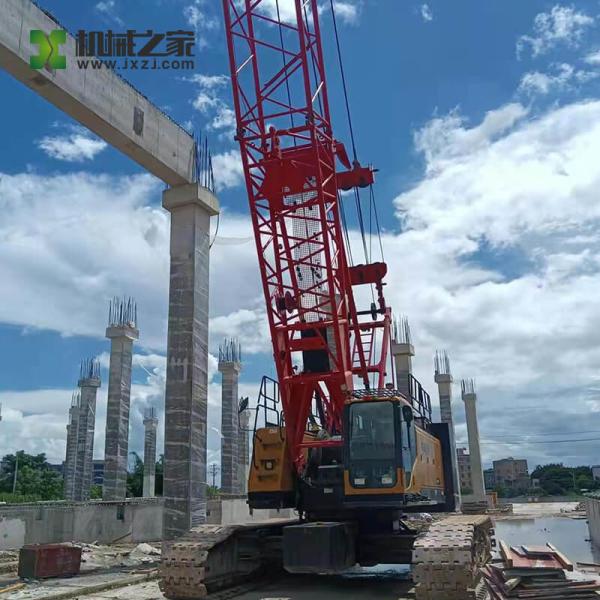

Used Sany Crawler Crane Sany SCC900A Second Hand Crawler Crane

Production Details:

1. SCC900A is an A-series 90-ton crawler crane developed by Sany Heavy Lifting Division. The disassembly and transportation performance, lifting performance, adaptability, operation performance, control performance and configuration are greatly improved.
2. The length of the main boom is 13m-61m, the length of the jib is 9m-18m, and the longest main boom + jib is 52m+18m.
3. The Max. lifting moment is 360tm, and the single rope lifting capacity is 12t, which is suitable for heavy-duty operations.
4. The diameter of the main chord is Ø101.6mm, which is the same as the 100-ton class. The lifting capacity of the short and medium boom is strong, which is more suitable for foundation construction.
5. The boom is equipped with an opening and closing cable section as standard, and the boom is convenient and quick to disassemble and assemble.

• Safe and reliable: The slewing bearing adopts 100A SSF1806/60, and the operation is safe and reliable.
• Efficient operation: The Max. hoisting speed is 130m/min, which is 8% higher than that of XGC85, and the operation is efficient.
• Reliable structure: 100A turntable structure is adopted, and the safety margin is 11% higher.
• Strong power: Isuzu 212kW engine is adopted, which has low noise and fuel consumption, and is full of power for on-load operation.
• Widened chassis: the unfolded width can reach 5100mm, the gauge is 4250mm, the same as 100A.
• Four-wheel belt: 850mm reinforced track shoes, roller body diameter Ø290mm, the same as 100A, optimized gear teeth and heat treatment, better meshing state and stronger durability.
• Transport performance: It can be transported as a whole with the crawler frame, and the crawler frame can be removed to meet the transport width of 3m. Optional outriggers are available.

Product Parameters:
