ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
Specifications
Brand Name :
Zoomlion
Model Number :
ZTC950V
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Status: :
Used
Max. Lifting Height: :
14 -87.5m
Max. Lifting Weight: :
95ton
Axle No.: :
5
Jib boom: :
6 Section
Production date: :
2019
Description

Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane

Production Details:


Model No.

ZTC950VBoom TypeTelescopic


Max. Rated Lifting Capacity

950000 kgMax. Lifting Height of Jib64m


Max Gradeability

40%Working Diameter23m


Transport Package

Complies with Min. export packaging requirementsSpecification15400×3000×3950MM


Driving Mileage

80000MWorking hours1200h


Trademark

ZoomlionPlace of OriginChina


HS Code

 Supply Capacity

10 Units/ Month


This equipment is with 6 sections 63 meters oval main boom, 3-section 24.5-meter jib.

**Max. lifting height is 87.5m;


Industry classic gold transmission chain, strong power, mature and reliable, good passability; reserved space for 10t bottom counterweight and two truss arms (17.5m), which can be attached to the vehicle to reduce the cost of use;

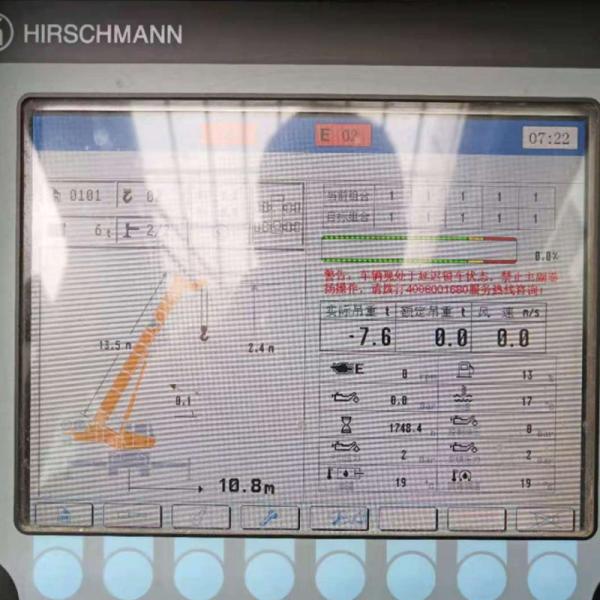

standard reversing radar, main winch monitoring system, visual reversing image, safe and reliable.

This machine was manufactured in May 2019, traveled 1200 hours, 95 tons, 6-section boom truck crane, Euro 5 emission, original format original paint of the whole vehicle, no repairs, one set of counterweight, one-section jib, two hooks, including 60t and 6.5t.

Product Parameters:

Item

Value

Remarks

Working performance

Max. rated lifting capacity (Kg)950003m range
Max. load moment of the basic arm (KN.m)40005m range
Max. load moment of long main boom (KN.m)186030m range
Basic boom max. lifting height (m)14
Main boom max. lifting height (m)64

The boom deformation is not considered, and
the value in brackets is the value of the standard jib

Jib max. lifting height (m)80.5/ (87.5)
Working speedsMax. hoist ropes peed (main winch) (m/min)110At fifth layer
Max. hoist ropes peed (auxiliary winch) (m/min)75At third layer
Boom derricking up time (s)70
Boom telescoping out time (min)13
Max. slewing speed (r/min)1.5

Traveling parameters

Max. use altitude (m)2000
High travel speed (Km/h)75
Max. gradeability (%)40
Min. turning diameter (m)23
Min. ground clearance (mm)300
Limits for exhaust pollutants and smokeConform to related standards

GB3847-2005
GB17691-2005 (Euro V)

Oil consumption per 100 km (L)70
WeightsDeadweight in traveling condition (Kg)54900

In the driving state, the jib, 25t hook, 7t auxiliary hook,
auxiliary winch mechanism (including auxiliary coil wire
rope) and movable counterweight of the crane cannot
be driven with the vehicle and need to be disassembled;
with arm tip pulley, 70t crane.

Complete vehicle kerb mass (Kg)54705
Ⅰ, Ⅱ axle load (Kg)9950/9950
IV, V, VI axle load (Kg)25100 (Dual axis) /9900
ZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For SaleZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For SaleZTC950V Zoomlion Used Truck Cranes 95ton Second Hand Crane Trucks For Sale
