Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
Specifications
Brand Name :
Zoomlion
Model Number :
QY90
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Condition: :
Used
Maximum Lifting Height: :
48.5 - 67m
Maximum Lifting Weight: :
90ton
Axle Number: :
5
Jib: :
NO
 production date: :
2010
Description

Used Zoomlion Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane

Production Details:


Model NO.

QY90V533Boom TypeTelescopic


Max. Rated Lifting Capacity

90000 kgMax. Lifting Height of Jib46.58m


Max Gradeability

37%Working Diameter24m


Transport Package

Complies with Min. export packaging requirementsSpecification14550×2800×3800mm


Driving mileage

120000mWorking hours8000h


Trademark

ZoomlionBoom TypeChina


HS Code

84262000Supply Capacity10 Units/Month



ZOOMLION QY90V533 crane is a full-slewing, telescopic boom type, electro-hydraulic proportional control truck crane.
Using Zoomlion's self-made five-axle dedicated chassis, the cab has a wide field of vision, luxurious and comfortable decoration, and the interior design, including the settings and manipulation of switches, joysticks, and signal lights, are based on ergonomics. Drivers and passengers create a comfortable riding environment and convenient operating conditions.
Adopt 10×6 drive type, good drive performance, hydraulic power steering, light and flexible.
The vehicle's exhaust emissions comply with the European Stage 3 emission standards (Euro III), and its safety devices meet the requirements of CCC certification. "

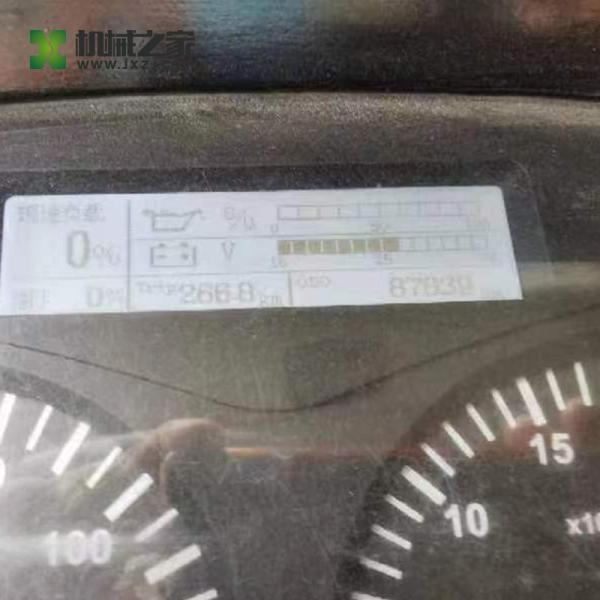

This machine was manufactured in 2010. It has traveled more than 80,000 kilometers and more than 6,000 hours. The weight of the vehicle is 55T. Weichai WP12 engine, has no major repairs, no malfunction, scheduled maintenance. The current performance is excellent. It is equipped with a 70T hook, five-section boom, and 67m jib. meters, with a counterweight of 12 tons.

Product Parameters:

ProjectValueRemarks
Working performanceMax. rated lifting capacity (kg)90000
Max. load moment of the basic boom (kN.m)3240
Max. load moment of the longest main boom (kN.m)1800
Max. lifting height of the basic boom (m)13.4
Main boom lifting height (m)48.5Boom deformation is not considered
Jib lifting height (m)67
Working speedsMax. hoist ropes peed (main winch) (m/min)122At fourth layer
Max. hoist ropes peed (auxiliary winch) (m/min)68At second layer
Boom derricking up time (s)72
Boom telescoping out time (s)146
Max. rotation speed (r/min)1.9
Traveling parametersMax. travel speed (km/h)78
Max. gradeability (%)43
Min. turning diameter (m)24
Min. ground clearance (mm)290
Limits for exhaust pollutants and smokeConform to related standardsGB3847-2005 GB17691-2005 Phase III
Oil consumption per 100 km (L)70
Weight parametersDeadweight in traveling condition (kg)55000
Complete vehicle kerb mass(kg)54870
Front axle load (kg)19600
Rear axle load (kg)35400
DimensionsDimensions (L×W×H) (mm)14550×2750×3750
Longitudinal distance of outriggers (m)7.3
Outrigger lateral distance (m)7.4
Main boom length (m)12.5~48
Main boom elevation angle (°)-2～80
Jib length (m)10.8 ,18.5
Offset (°)0 , 30
ChassisModelZLJ5550
TypeTwo
Engine ModelWP12.430N
Rated power kW/r/min316/1900
Max. output torque N.m/r/min2060/1100~1400
Manufacturerzoomlion

Used 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile CraneUsed 90ton Truck Crane Zoomlion QY90 Second Hand Truck Mobile Crane
