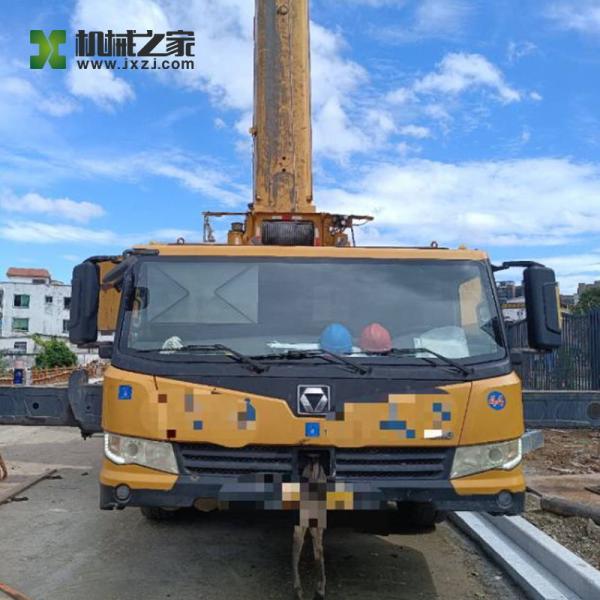

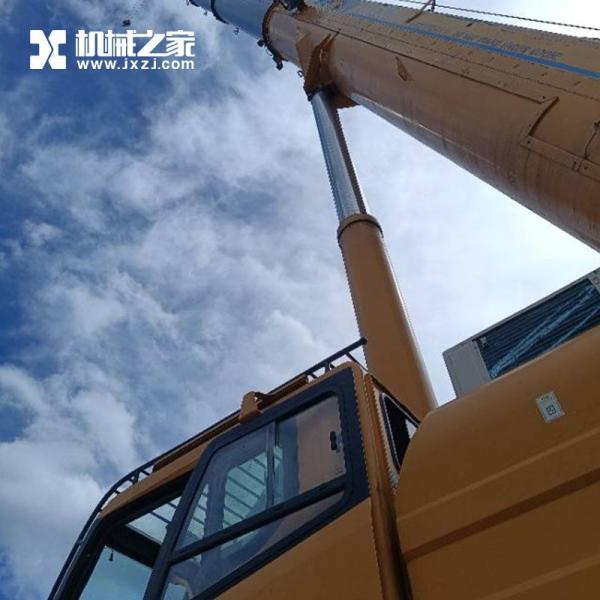

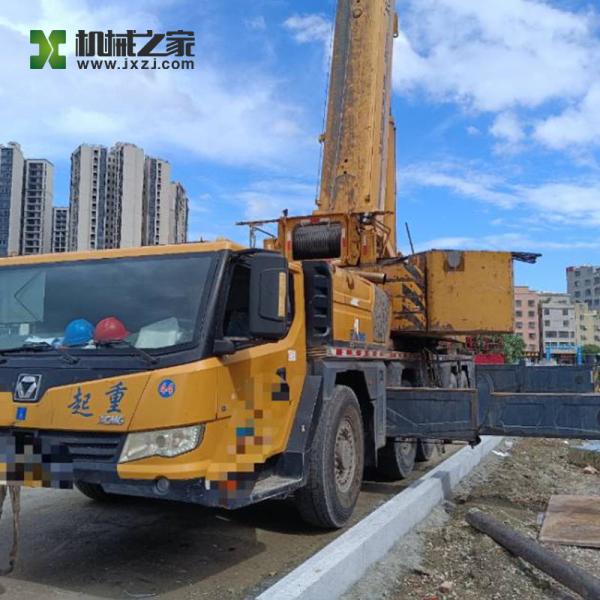

QAY220 XCMG Truck Mounted Crane QAY220 220 Ton Used Crane 81m
QAY220 XCMG Truck Mounted Crane QAY220 220 Ton Used Crane 81m
QAY220 XCMG Truck Mounted Crane QAY220 220 Ton Used Crane 81m
QAY220 XCMG Truck Mounted Crane QAY220 220 Ton Used Crane 81m
QAY220 XCMG Truck Mounted Crane QAY220 220 Ton Used Crane 81m
QAY220 XCMG Truck Mounted Crane QAY220 220 Ton Used Crane 81m
Specifications
Brand Name :
XCMG
Model Number :
QAY220
Certification :
CE , ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Condition: :
Used
Maximum Lifting Height: :
13.8 - 81m
Maximum Lifting Weight: :
220 ton
Axle Number: :
5
Jib: :
2 Section
 production date: :
2017
Description

XCMG Used All-Terrain Truck Crane XCMG QAY220 Ton Second Hand Crane

Production Details:

Model NO.

QAY220

 Boom Type Telescopic

Max. Rated Lifting Capacity

 220000 kg Max. Lifting Height of Jib 61.5m

Max Gradeability

 48% Working Diameter 24m

Transport Package

 Compliant with export packaging requirements Specification

16130×3000×4000mm

Driving Mileage

30000m

Working hours

4000h

Trademark

 XCMG Place of Origin China

HS Code

 Supply Capacity 1 Units Per Month

  • XCMG QAY220 (four-wheel drive) all-terrain crane is mainly suitable for lifting and installation projects in oil fields, docks and bridge construction sites, and has a wide range of practicability.
  • The vehicle has good driving performance, strong lifting capacity, flexible maneuverability and a wide range of operations. The whole vehicle adopts a 6-axle all-terrain special chassis, which has good driving performance and strong passability; the integrated mechanical, electrical and hydraulic precise full-axle steering and braking technology has excellent driving performance.
  • The "U" deformed section technology boom has super lifting capacity.
  • Plug-in boom head, optimized compact boom tail structure, lengthened slide block, small lifting deformation and stable expansion and contraction.
  • Combined counterweight technology, self-loading and unloading; mounting on the side of the turntable, good stability.
  • The pump control system with special integrated control valve has good control performance.
  • Proprietary single-cylinder bolt telescopic technology improves the active safety of the telescopic system.
  • The torque limiter and display instrument controlled by digital bus have strong anti-interference ability.
  • Advanced electro-hydraulic proportional steering control technology enables accurate and reliable multi-mode steering.
  • Dual-circuit air disc brake, ABS system and various auxiliary brakes provide high braking stability and safer and more reliable driving.
  • The main structural parts adopt automatic welding technology, with zero welding defects and high reliability.

Product Parameters:

When driving:

Category Item Unit Value
Dimensions Overall length of the whole machine mm 16130
Overall width of the whole machine mm 3000
Overall height of the whole machine mm ≤4000
Wheelbase 1st and 2nd mm 2750
2nd and 3rd mm 1650
3rd and 4th mm 2000
4th and 5th mm 1650
5th and 6th mm 1650
Tire distance mm 2590
Weights The weight of the whole machine in driving state kg 71000
Axle load 1st and 2nd kg 11750
3rd and 4th kg 11850
5th and 6th kg 11900
Dynamic parameters

Operating cab engine

 Engine model TAD720VE
Rated power kw/(r/min) 162/2100
Rated torque N.m/(r/min) 854/1400
Rated speed r/min 2100
Driving cab engine Rated power kw/(r/min) 390/1800
Rated torque N.m/(r/min) 2400/1200
Rated speed r/min 2000

Traveling parameters

 Driving speed Top speed km/h 71
Min. stable driving speed km/h 2.1
Min. turning diameter m ≤24
Min. ground clearance mm 278
Approach angle ° 25
Departure angle ° 18
Braking distance (vehicle speed is 30km/h) m ≤10
Max. grade % 48
Fuel consumption per 100 km l 80

When Operating:

Category Item Unit Value

Main performances

 Max. rated lifting capacity t 200
Min. rated working range m 3
Turntable tail turning half warp (balance weight) mm 5070

Maximum lifting moment

 Basic boom kN.m 6774
Longest main boom kN.m 2752

Outrigger distance

 Portrait m 9.625
Horizontal m 8.7(6.5)

Lifting height

 Basic boom m 14.5
Longest main boom m 61.5
The longest main boom + jib (11.55m) 73.8
The longest main boom + jib (20m) m 82.1
Boom length Basic arm m 13.8
Longest main arm m 61
The longest main boom + jib (11.55m) m 72.55
The longest main boom + jib (20m) m 81
Jib mounting angle ° 0, 15,30
Working speeds Boom luffing time Raise the boom s 60
Boom extension time Full extension s 450
Full shrink s 450
Max. rotation speed r/min 1.9
Outrigger extension time Horizontal outriggers Simultaneously stretch s 50
Shrink at the same time s 40

Vertical outrigger

 Simultaneously stretch s 50
Shrink at the same time s 45

Lifting speed

(single rope, fourth layer)

 Main hoisting mechanism Empty m/min 120
Auxiliary hoisting mechanism Empty m/min 110
External radiation dB(A) ≤118
Driver's place dB(A) ≤90
