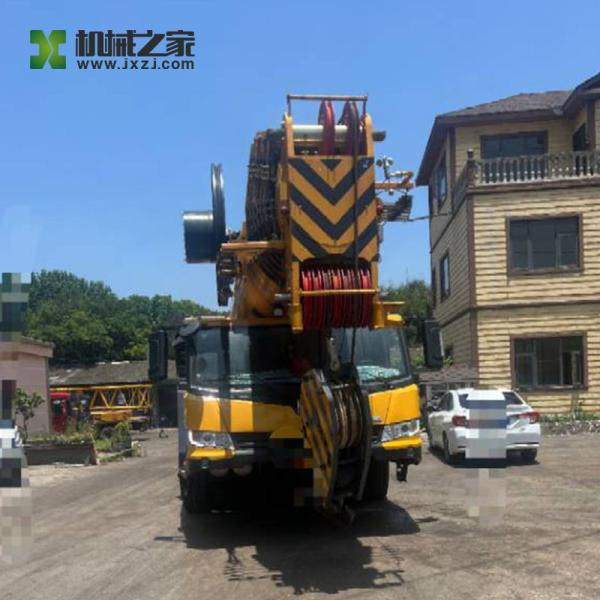

XCA230C XCMG All Terrain Crane 230 Ton Crane 114m
XCA230C XCMG All Terrain Crane 230 Ton Crane 114m
XCA230C XCMG All Terrain Crane 230 Ton Crane 114m
XCA230C XCMG All Terrain Crane 230 Ton Crane 114m
XCA230C XCMG All Terrain Crane 230 Ton Crane 114m
XCA230C XCMG All Terrain Crane 230 Ton Crane 114m
Specifications
Brand Name :
XCMG
Model Number :
XCA230C
Certification :
CE , ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Condition: :
Used
Maximum Lifting Height: :
13.8 - 114m
Maximum Lifting Weight: :
230 ton
Axle Number: :
5
Jib: :
2 Section
 production date: :
2021
Description

XCMG Used All-Terrain Truck Crane XCMG XCA230C Ton Second Hand Crane

Production Details:

Model NO.

XCA230C

 Boom Type Telescopic

Max. Rated Lifting Capacity

 230000 kg Max. Lifting Height of Jib 75m

Max. Gradeability

 67% Working Diameter 23.5m

Transport Package

 Compliant with export packaging requirements Specification

15850×3000×3980mm

Driving Mileage

150000m

Working hours

1500h

Trademark

 XCMG Place of Origin China

HS Code

 Supply Capacity 1 Units Per Month

  • XCA230C is equipped with a 550-horsepower engine, a Max. torque of 2500N.m, four-axle mechanical drive, and thanks to the excellent layout of the whole machine and excellent transmission parts, the driving force is maximized, and the climbing performance is as high as 60%.
  • The whole vehicle weighing more than 100 tons can be driven without pressure, quickly put into place, and the work efficiency is full!
  • The XCA230C has 12 forward gears and four driving modes. The axle load detection technology can dynamically calculate the axle load and the position of the center of gravity of the vehicle, and automatically match the corresponding highest gear and axle drive mode in real time;
  • When heavy load transitions, the pressure sensors installed on each axis can detect the value of the shaft load in real time, and give an alarm when the shaft load is abnormal;
  • And remind the driver to control the speed in real time to prevent the overturning of the heavy-load transition vehicle. Multiple technologies protect the driving safety of the vehicle, and the driving is intelligent and convenient.
  • XCMG large-tonnage cranes are equipped with various active and auxiliary braking methods. How do they work together? The answer is complex and simple!
  • Simply put, the driver only needs to step on the brakes, and multiple brakes will automatically intervene at the same time, avoiding the driver's complicated manual operations, and the braking distance can be reduced by 15%!
  • The complicated side is that it can also dynamically allocate various braking forms and play proportions according to the braking force requirements, so as to achieve precise control of the braking force and fully demonstrate XCMG's leading technological strength!
  • In addition, the brake caliper is embedded with a wear detection sensor, and the wear limit is automatically reminded, and the safety guarantee is fully responsible!
  • If efficiency is related to current income, then safety is the guarantee of long-term income. XCMG XCA230C will help you continue to grow your current and future business!

Product Parameters:

Item XCA230C
Size parameters 15850×3000×3980
Overall length of the whole machine (mm) 15850
Overall width of the whole machine (mm) 3000
Overall height of the whole machine (mm) 3980
Wheelbase(mm) 2650+1650+2900+1650
Tire distance (mm) 2590/2590/2590/2590/2590

Weight parameter
Axle load (kg) 11650/11650/11650/10020/10020

Dynamic parameters
Engine model MC13.54-61/WP13.550E62

Traveling parameters

Traveling
Max. travel speed (km/h) ≥80
Min. stable driving speed (km/h) 1~1.5

Turning
Min. turning diameter (m) ≤18.5
Boom head Min. turning diameter (m) ≤23.5

Max. grade(%)
Min. ground clearance (mm) 307
Approach angle (°) 18
Departure angle (°) 14

Braking distance

(Dry and flat asphalt or concrete pavement,

When the vehicle speed is 30km/h) (m)

 ≤10
Fuel consumption per 100 kilometers (L) 72

Main performance parameters
Max. gradeability (%) 67
Max. rated total lifting weight (t) 230
Min. rated amplitude (m) 3
Max. lifting moment of the basic arm (kN m) 7393
Turntable tail turning radius (mm) 5160/4883

Legs
Longitudinal (m) 9.19

Lateral (half extension) (m)
Basic boom (m) 13.8
The longest main boom (m) 75
The longest main boom + jib (m) 114.1

Working speed
Max. rotation speed (r/min) ≥1.5

Main hoisting mechanism (m/min)
Lifting speed (single rope, no load, 4th floor) ≥130/≥130
Boom extension time 800/780
Simultaneously put(s) ≤40
Simultaneous receipt (s) ≤40

Outrigger retraction-vertical
Simultaneously put(s) ≤80
Simultaneous receipt (s) ≤40

XCA230C XCMG All Terrain Crane 230 Ton Crane 114mXCA230C XCMG All Terrain Crane 230 Ton Crane 114m
