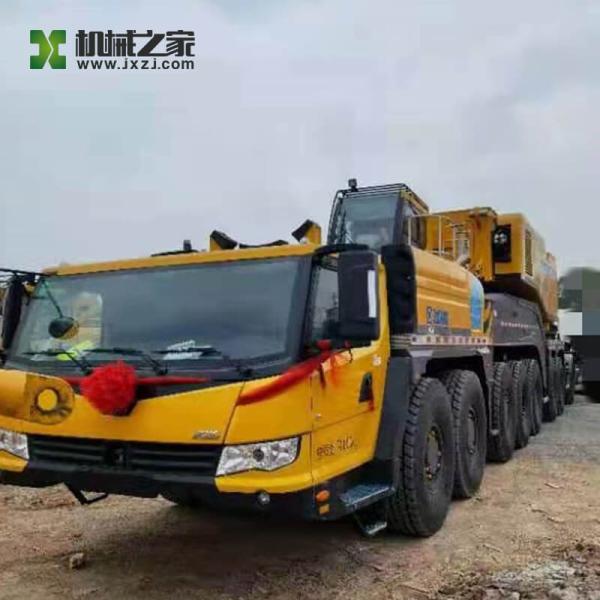

Used Truck Crane XCMG XCA1200 Second Hand Truck Mobile Crane

Production Details:

• The world's only 8-axle 1200t all-terrain crane, the original multi-flex body optimization and L-shaped wind power special boom technology, ultra-long boom large load lifting precision control technology; the world's first wind power boom self-turning technology, dual power time-sharing drive technology. Since its listing in July 2017, it has successfully completed the hoisting and maintenance work of more than 150 wind turbines in 5 wind farms. For the first time, the all-terrain crane has realized the installation of 100-meter-high 2MW wind turbines, creating a miracle of installing 23 wind turbines in one month. It is a milestone product of the innovation of construction machinery design concept and another classic work of Chinese construction machinery products.
• ·XCA1200 is the world's first 8-axle 1000-ton all-terrain crane. It is the first self-reversing special boom for wind power, which can carry all working booms for station transfer in the wind farm; the seven-section main boom is matched with a four-fold super-lift, wind power Boom, the lifting performance covers the installation of wind turbines of 2.5MW and below; the pioneering mechanical 6-axle drive and high-speed ratio hydraulic drive technology forms a seven-axle dual-power drive, with the strongest heavy-load transition capability; flexible conversion of wind power and general models, The scope of work is wider.
• · Industry-leading lifting performance. The newly developed self-folding wind power boom and multi-rate Y-type truss super-lifting device have stronger lifting capacity, and the performance covers wind power hoisting of 2.5MW and below, surpassing the industry's 9-bridge 1200t-class products.
• ·Pioneering the self-flipping technology of wind power arm. Using super-lifting device traction and multi-stage overturning cylinder to push up the wind turbine arm automatically, the process is safe and efficient, and the automatic overturning can be completed within 25 minutes, realizing the transition between stations to carry all the working booms, and the whole machine taking the shortest time to close the vehicle. 2h, greatly reducing the transition cost.
• ·The new heavy-duty drive technology pioneered the mechanical six-axle drive technology, and cooperated with the self-developed high-speed ratio hydraulic auxiliary drive, carrying the main arm, super-lift, wind power arm, front and rear outriggers for heavy-load transitions, and the climbing ability reached 38%.

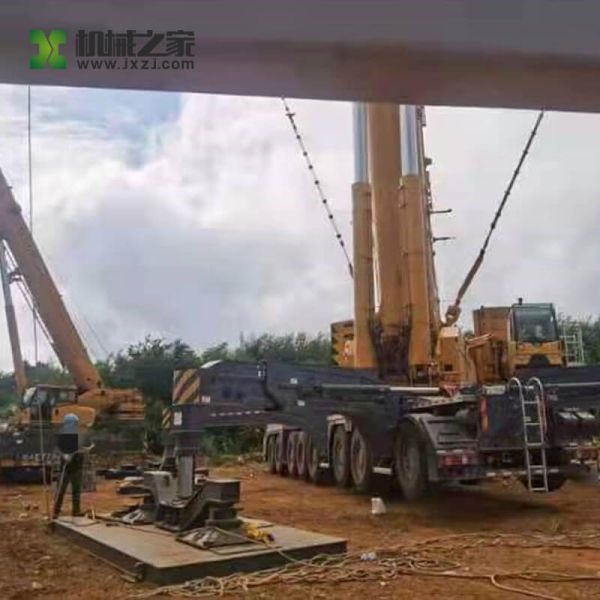

• ·Heavy-duty single wishbone independent suspension system, the left and right wheels jump independently, the body posture is adaptively leveled, adaptive to road conditions, improving the handling stability during high-speed cornering, and excellent off-road performance

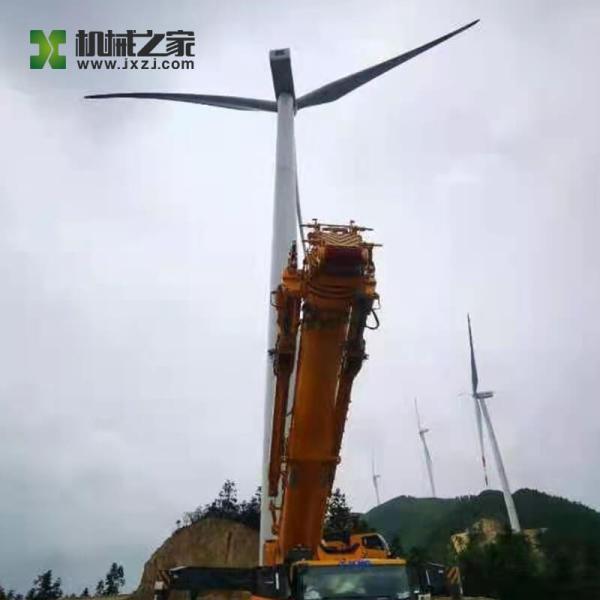

• · 100m high 2.0MW wind turbine hoisting. The diameter of the fan impeller and the height of the hub gradually increase, and there are more and more fans with a hub height of 100 meters, which puts forward higher requirements for hoisting equipment. With its superior lifting performance, XCA1200 adopts a high-efficiency combination of seven-section main boom, wind power boom and super-lifting boom to complete the installation of a 2.0MW wind turbine with a 6-section tower and a 100-meter hub height in Wuzhong, Ningxia. It can be completed in an average of 1.5 days. The hoisting of the typhoon breaks through the limits of the industry.

Product Parameters:

Parameter item	XCA1200
Dimensions	*
Overall length of the whole machine (mm)	19695
Overall width of the whole machine (mm)	3000
Overall height of the whole machine (mm)	4000
Wheelbase(mm)	1600+2350+2135+1650 +2950+1600+2950
Tire distance(mm)	2540/2540
Weight parameter	*
Total mass in driving state (kg)	88000
Self-dismounting counterweight mass (kg)	-
Axle load(kg)	10000/10000/10000/10000/ 12000/12000/12000/12000
Dynamic parameters	*
Engine model	-
Engine model (operating cab)	OM460LA.E3A/5
Engine rated power (kw/(r/min))	260/1800
Engine rated torque (N.m/(r/min))	1750/1300
Engine model (driving cab)	OM502LA.E3B/1 or OM502LA.E3A/1
Engine rated power (kw/(r/min))	482.2/1800 or 480/1800
Engine rated torque (N.m/(r/min))	3000/1300 or 3000/1300
Traveling parameters	*
Traveling	*
Max. travel speed (km/h)	≥80
Min. stable driving speed (km/h)	2.4
Turning	*
Min. turning diameter (m)	≤27
Boom head Min. turning diameter (m)	≤32.6
Max. gradeability(%)	≥58
Min. ground clearance (mm)	382
Approach angle (°)	16
Departure angle (°)	20.9
Braking distance (dry and flat asphalt or concrete road, when the vehicle speed is 30km/h) (m)	≤10
Fuel consumption per 100 kilometers (L)	110
Main performance parameters	*
Max. gradeability(%)	≥58
Max. rated total lifting weight (t)	1200
Min. rated amplitude (m)	3
Max. lifting moment of the basic arm (kN m)	35280
Turntable tail turning radius (mm)	9270
Legs	*
Longitudinal (m)	13
Lateral (half extension) (m)	13
Max. lift height	*
Basic boom (m)	18.5
The longest main boom (m)	101.5
The longest main boom + jib (m)	128
Boom length	*
Basic boom (m)	18.5
Forward (mm)	-
Chassis length (mm)	-
The longest main boom (m)	102
The longest main boom + jib (m)	131
Longest luffing jib (m)	-
Working speed	*
Max. rotation speed (r/min)	≥1
Main hoisting mechanism (m/min)	≥136
Lifting speed (single rope, no load, 4th floor)	-
Luffing jib luffing winch (m/min)	≥128
Auxiliary lifting mechanism (m/min)	-
Boom extension time	*
Main boom boom time (s)	-
Full extension(s)	≤2600
Full shrink(s)	-
Amplitude time	*
Full lift (s)	≤220
Full boom drop(s)	-
Outrigger retraction--horizontal	*
Simultaneously put(s)	≤40
Simultaneous receipt (s)	≤40
Outrigger retraction-vertical	*
Simultaneously put(s)	≤150
Simultaneous receipt (s)	≤150
