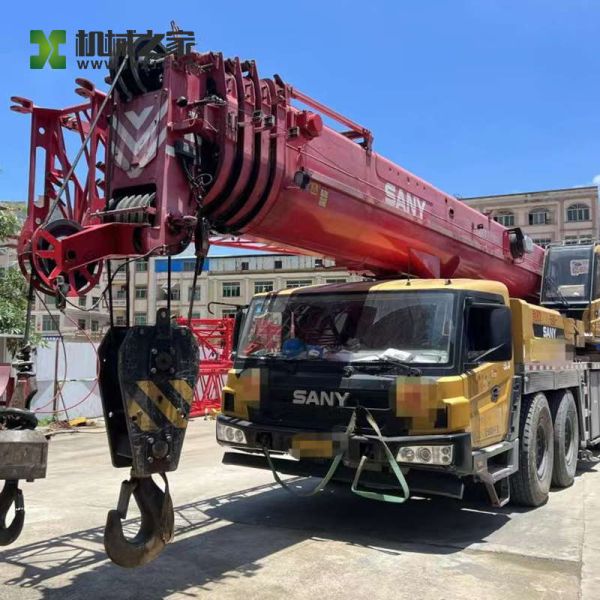

Sany STC800 Second Hand Truck Cranes 80ton 65m
Sany STC800 Second Hand Truck Cranes 80ton 65m
Sany STC800 Second Hand Truck Cranes 80ton 65m
Sany STC800 Second Hand Truck Cranes 80ton 65m
Specifications
Brand Name :
Sany
Model Number :
STC800
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Condition: :
Used
Maximum Lifting Height: :
12.9 - 65m
Maximum Lifting Weight: :
80ton
Axle Number: :
4
Jib: :
2 Section
 production date: :
2018
Description

Used Truck Crane Sany STC800 Second Hand Truck Mobile Crane

Production Details:

Model NO.

STC800

 Boom Type Telescopic

Max. Rated Lifting Capacity

 800000 kg Max. Lifting Height of Jib 50M

Max Gradeability

 44% Working Diameter 24m

Transport Package

 Complies with Min. export packaging requirements Specification

15290×2400×3210mm

Driving mileage

 120000m Working hours 12000h

Trademark

 Sany Place of Origin China

HS Code

 Supply Capacity 10 Units Per Month

1. High energy efficiency--new 80-ton truck crane

Superior lifting capacity

Five-section U-shaped main boom with large cross-section, the full length of the boom is 50m;

8m lateral outrigger span, full counterweight 15.65t, excellent lifting performance.

Brand new 2.8m wide chassis, heightened and widened rectangular section frame, enhanced torsional and bending resistance of hoisting load;

Adopt high-horsepower 12L engine, 10-speed gearbox with synchronizer, heavy-duty axle;

The max. grade is 44%, and the fuel consumption per 100 kilometers is 44L.

2. High-efficiency and energy-saving hydraulic system

Brand oil pump, hoisting motor configuration, to meet the needs of precision hoisting: the Min. stable speed of rotation is 0.1°/s, and the Min. stable speed of hoisting is 1.5m/min;

Compared with the hydraulic control system, the electronic control system saves 15% of the overall energy saving when hoisting on the vehicle, and the heavy-load operation efficiency increases by 30%;

Intelligent compensation of flow, smooth coordination of compound actions, and increase of flow utilization by 20%.

3. Comfortable and safe operating experience

The 0-20° tiltable and widened control room makes working at heights more comfortable and safer;

Counterweight remote control operation, mechanical structure mounting, no need to unload for short-distance transportation, safe and reliable;

The boarding shed is simplified, and the use and maintenance are more convenient.

Product Parameters:

Overall length of the whole machine 15290mm
Overall width of the whole machine 2800mm
Overall height of the whole machine 3880mm
Engine max. power 276/1900Kw/rpm
Engine max. output torque 1800/1000-1400N.m/rpm
Top speed 80Km/h
Min. turning radius 12m
Approach angle ≥10°
Departure angle ≥14°
Max. grade 44%
Fuel consumption per 100 km ≤44L
Max. Rated Gross Lifting Weight 80t
Turntable tail turning radius 4.385m
Max. Load Moment - Basic Arm 3293kN.m
Max. Load Moment - Longest Main Boom 1803kN.m
Outrigger span (horizontal × vertical) 8×6.43m
Boom Length - Basic Boom 12.96m
Boom Length - Longest Main Boom 50m
Boom length - longest main boom + jib 67.5m
Max. hoist rope speed (Main winch) (no load) 130m/min
Max. hoist rope speed (Auxiliary winch) (no load) 130m/min
Boom full extension/retraction time 140s/160s
Boom full up/down time 65s/90s
Swing speed 0 ～ 1.8r/min
The total mass of the whole machine 50000
Axle load - one and two axle loads 24000kg
Axle load - three and four axle loads 26000kg

Sany STC800 Second Hand Truck Cranes 80ton 65m
