75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
Specifications
Brand Name :
Sany
Model Number :
STC 75
Certification :
CE , ISO7501
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-7 Days
Packaging Details :
Bulk
Condition: :
Used
Maximum Lifting Height: :
15.7 - 45m
Maximum Lifting Weight: :
> 75 ton
Axle Number: :
5
Jib: :
2 Section
 production date: :
2011
Description

Used Sany Truck Crane Zoomlion STC 75 Ton Second Hand Crane

Production Details:

Model NO.

 SYM5462JQZ Boom Type Telescopic

Max. Rated Lifting Capacity

 75000 kg Max. Lifting Height of Jib 45m

Max. Gradeability

 40% Turning Diameter 23m

Transport Package

 Compliant with export packaging requirements Specification 14000×2750×3700mm

Drive Mileage

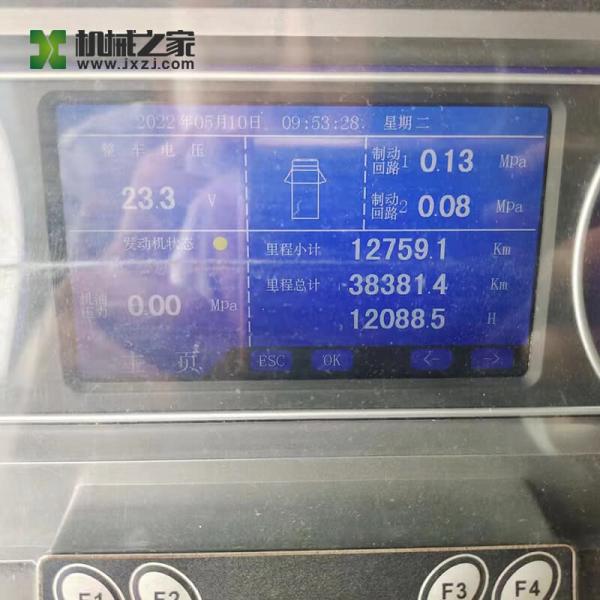

 38381.4kms Working hours 12088.5h

Trademark

 Sany Origin China

The maximum rated lifting capacity is 75T, and the minimum working range is 3.0m. Five-section booms, partially synchronous telescopic boom, the full extension of the main boom is 45m, and the maximum lifting height of the main boom is 45m.

The maximum rated power of the engine is 276KW, European Ⅲ standard. The maximum speed can reach 80km/h, and the maximum climbing ability is 40% (theoretical). The lifting capacity of the main boom working range adopts SANY SYML moment limiter to provide customers with safe and effective protection. Adopts the load sensing and constant power control hydraulic system independently developed by SANY.
The vehicle's exhaust emissions comply with the European Stage 3 emission standards (Euro III), and its safety devices meet the requirements of CCC certification.

This Truck Crane was produced in 2011, drived more than 38381.4kms, and worked more than 12,088.5 hours, with a weight of 75T, Weichai WP12 engine, no big repairs, no malfunction, regular maintenance, excellent performance at present, equipped with 70T hook, five-section boom, jib 18.5 meters, with a counterweight of 12 tons.

Product Parameters:

Project Value Remark
Working performance Max. Rated Gross Lifting Weight (kg) 75000
Max. load moment of the basic boom (kN.m) 2400
Max. load moment of the longest main boom (kN.m) 318
Basic boom Max. lift height (m) 12
Main boom Max. lift height (m) 45 Boom deformation is not considered
Max. lifting height of jib (m) 15.7

Working Speeds

 Max. hoist rope speed (main winch) (m/min) 130 Reel fourth layer
Max. hoist rope speed (auxiliary winch) (m/min) 139 At second layer
Boom derricking up time (s) 120
Boom telescoping out time (s) 80
Max. rotation speed (r/min) 2.4

Traveling Parameter

 Top speed (km/h) 80
Max. gradeability (%) 40
Min. turning diameter (m) 23
Min. ground clearance (mm) 290
Limits for exhaust pollutants and smoke

Conform to related

standards

 GB3847-2005 GB17691 -2005 The third phase
Fuel consumption/100 km (L) 45
Weights Deadweight in traveling condition (kg) 45000
Complete vehicle kerb mass (kg) 45870
Front axle load (kg) 19000
Rear axle load (kg) 26000
Dimensions Dimensions (L×W×H) (mm) 14000×2750×3700
Longitudinal distance of outriggers (m) 7.6
Outrigger lateral distance (m) 6.1
Main boom length (m) 45
Main boom elevation (°) -2～80
Jib length (m) 10.8 ,18.5
Offset (°) 0 ,15, 30

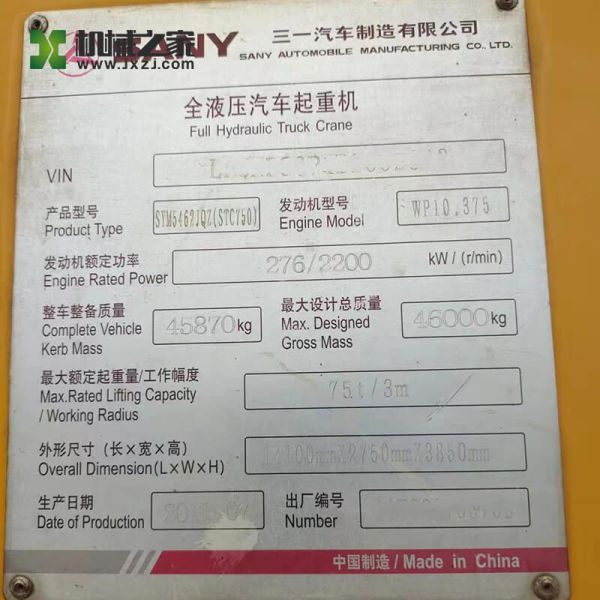

Chassis Model stc75
Type Ⅱ
Engine Model WP10.375N
Rated power (kW/r/min) 276/2200
Max. output torque (N.m/r/min) 1460/1100~1400
Manufacturer Sany

75 Ton Second Hand Crane Used Sany Truck Crane Sany STC75 Ton Second Hand Crane Used Sany Truck Crane Sany STC75 Ton Second Hand Crane Used Sany Truck Crane Sany STC
