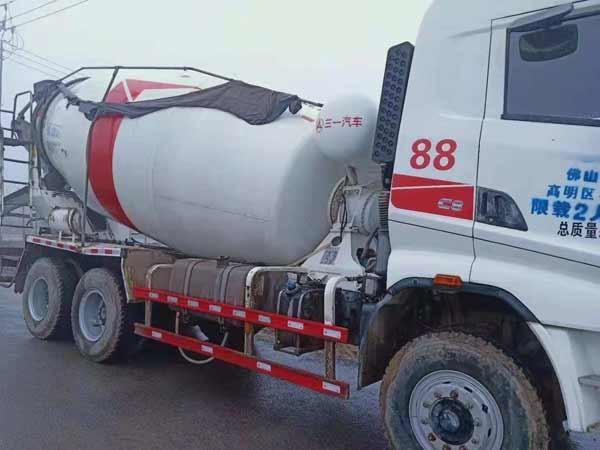

12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm
12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm
12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm
12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm
12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm
12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm
Specifications
Brand Name :
SANY
Model Number :
SY5310GJB1
Certification :
ISO, CCC, CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100 units per month
Delivery Time :
normally 7 working days after full payment received
Packaging Details :
Nude packing
Vehicle Type :
Used Concrete Mixter Truck
Year :
2012
Cubic :
12m³
Drive Position :
LHD
Wheelbase :
4000+1350mm
Overall Dimension :
10500x2490x3985mm
Description

12 Cubic BENZ Chassis Shacman F2000 Head 2012 Year SANY Used Concrete Mixer Truck

Specification
Basic vehicle parameters
Model SY5310GJB1
Product name Concrete mixer truck
Year 2010-2018
Brand SANY
Chassis type BENZ 6X4, Left hand drive
Dimension
Overall dimension Length(mm) 10500
Width(mm) 2490
Height(mm) 3985
Wheelbase(mm) 4000+1350
Front overhang(mm) 1525
Rear overhang(mm) 2950
Weight
Curb weight of vehicle(kgs) 16500
Gross vehicle weight(kgs) 31000
Performance
Max grade ability(％) 35
Max speed(km/h) 90
Fuel tank capacity(L) 300
Fuel consumption(L/100km) 45
Min steering diameter(m) 17
Min ground clearance(mm) 314
Engine
Model WP10.290 (Euro 3)
Displacement(mL/cc) 9726
Fuel type diesel
Max.power(kw/hp) 213/290
Speed at max torque(r/min) 1200-1600rpm
Transmission
Model 9JS180
Forward Shifts 9 forward
Reverse Shifts 1 reverse
Axle
Front axle 7000kg
Rear axle 18000kg
Cab
Type Shacman F2000 head,with one sleeper,air conditioner,left hand drive
Seats 3
Clutch
Type diaphragm spring cluth
Driven Plate Dia.(mm) Φ430
Steerng
Brand ZF brand
Model ZF8118
Wheel
Tyre Model 11.00R20 16PR
Nos. 10+1
Main spare parts on mixer
ZF Reducer
Rexroth pump
Rexroth hydraulic motor
Concrete mixer
Mixing drum volume(M3) 15
Mixing volume(M3) 10
Mixing drum elevation angle 11.25°
Rotate speed of mixing drum(r/min) 0-14
Feed speed(M3/min) ≥3.5
Discharge speed(M3/min) ≥3
Landslide degree(mm) 100～230
Remnant rate(%) ＜1
Water tank volume(L)
 400

12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm

We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used concrete mixer truck from us is the vehicle support provided to you in the event of any issue.

All used concrete mixer trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.

12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm

Regular Trade Terms:

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Payment terms: T/T before shipment.

Delivery time: normally 7 working days after full payment received.

12 Cubic Used Mixer Trucks , SANY Used Concrete Trucks 10500x2490x3985mm

Used Vehicles we can provide

Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.

Used trucks like dump trucks, sinotruck, cargo truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.

Used SUVs and used pickup cars, we can also source used vehicles based on your demands.
