150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
Specifications
Brand Name :
huawei
Model Number :
S5700-52C-SI
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S5700-52C-SI
Type :
Huawei S5700 Switch
port :
48
console port :
1
Device type :
48 Port Gigabit Switch
Switching Capacity :
256 Gbit/s
Power Module :
150W AC DC
Description

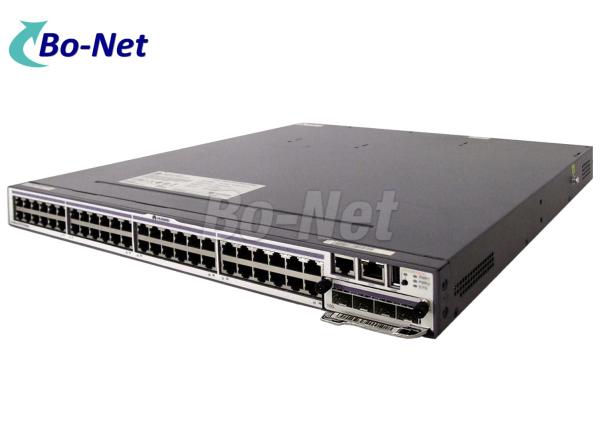

Huawei S5700 Series S5700-52C-SI 48 Port Gigabit Ethernet Switch, 4 Port GE SFP

1 Forty-eight 10/100/1000BASE-T Ethernet electrical ports 2 One console port
3 One ETH management port 4 One USB port
5 Front card slot
NOTE:

For details about the mapping between cards and switches, see Cards.

 6 ESD jack
NOTE:

When you install or maintain a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

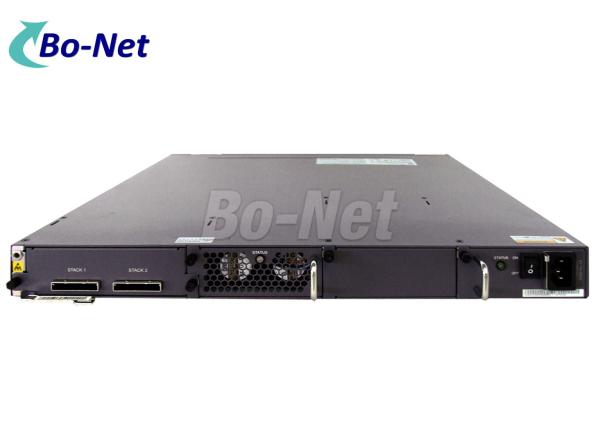

7 Rear card slot
NOTE:

For details about the mapping between cards and switches, see Cards.

 8 Fan module slot
NOTE:

Available fans:

CX7E1FANA Fan Module
9 Power module slot 2
NOTE:
Available power modules:
  • 150 W AC Power Module
  • 150 W DC Power Module
 10 Power module slot 1
NOTE:
Available power modules:
  • 150 W AC Power Module
  • 150 W DC Power Module

Item

Description
Memory (RAM) 256 MB
Flash 32 MB
Mean time between failures (MTBF) 51.3 years when a 2-port 10GE interface card is configured, 70.3 years when a 4-port GE front card is configured, 28.58 years when a 4x10GE front card is configured
Power supply surge protection
  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight
  • Empty: ≤ 5 kg (11.02 lb)
  • Fully configured: ≤ 8.5 kg (18.74 lb)
Stack ports Two stack ports available on each stack card
RPS Not supported
PoE Not supported
Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC
Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 78 W
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 41 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude
  • AC power modules configured: 0-5000 m (0-16404 ft.)
  • DC power modules configured: 0-2000 m (0-6562 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 02352356

150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch

150W S5700-52C-SI 4 Port GE SFP Gigabit Ethernet Switch
