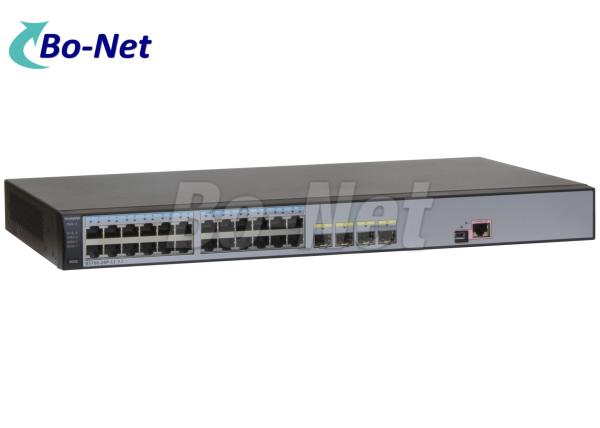

Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
Specifications
Brand Name :
HUAWEI
Model Number :
S5700-28P-LI-AC
Place of Origin :
USA
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
HUAWEI
Product name :
S5700-28P-LI-AC
Type :
Huawei S5700 Switch
Ports :
24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports
Forwarding Performance :
42 Mpps
Switch capacity :
256Gbps
power supply :
AC
Description

Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch

Item

Description
Memory (RAM) 256 MB
Flash
  • V200R001: 64 MB
  • V200R002 and later versions: 200 MB
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (with packaging) 2.8 kg (6.17 lb)
Stack ports
  • V200R010 and earlier versions: the last two uplink 1000BASE-X optical ports
  • V200R011 and later versions: four uplink 1000BASE-X optical ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput) 24 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 19.3 W
Operating temperature
0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The operating temperature of the switch is 0°C to 45°C (32°F to 113°F) when it uses SFP optical modules with 80 km or longer transmission distances.
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) Noise-free (no fans)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 02353173

Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch

Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network SwitchHuawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch

Huawei S5700 Series Switch S5700-28P-LI-AC 24 Port Gigabit POE Network Switch
