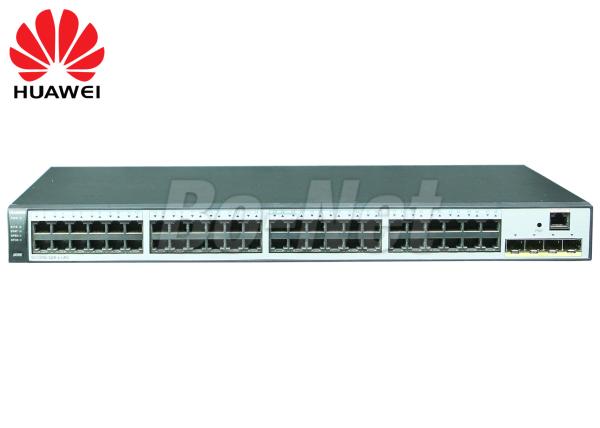

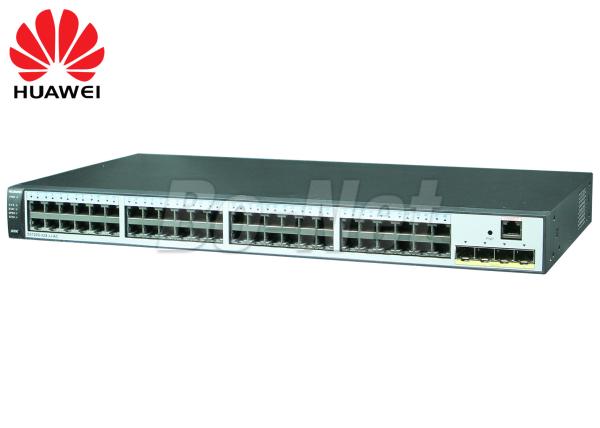

HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch
HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch
HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch
HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch
HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch
HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch
Specifications
Brand Name :
HUAWEI
Model Number :
S5720S-52X-LI-AC
Place of Origin :
CHINA
MOQ :
1 unit
Price :
$100-$120
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 Piece/Pieces per Week
Delivery Time :
5-8 work days
Packaging Details :
Neutral packing/Original packing
Brand :
HUAWEI
Transmission Rate :
10/100/1000Mbps
Power :
AC Power Supply
Model :
S5720S-52X-LI-AC
Ports :
48 x Ethernet 10/100/1000 ports
Switch Capacity :
336Gbps
Products status :
Huawei 48 Ethernet 10/100/1000 ports,4 10 Gig SFP+Switch
Device type :
Huawei S5720S Series Switch
Description

HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch

5720S-52X-LI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,AC 110/220V)

Memory (RAM) 512 MB
Flash 240 MB
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight (including packaging materials) 3.4 kg (7.5 lb)
Stack ports Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports
RTC Not supported
RPS Not supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 50.3 W

Typical power consumption (30% of traffic load)

  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 31.6 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Product Model
S5720S-12TP-LI-AC
S5720S-12TP-PWR-LI-AC
S5720S-28P-LI-AC
S5720S-28P-PWR-LI-AC
S5720S-28TP-PWR-LI-ACL
S5720S-28X-LI-AC
S5720S-28X-PWR-LI-AC
S5720S-28X-LI-24S-AC
S5720S-52P-LI-AC
S5720S-52P-PWR-LI-AC
S5720S-52X-LI-AC
S5720S-52X-PWR-LI-AC
Switching Capacity
336 Gbit/s
Forwarding Performance
22.5 Mpps
P series: 51 Mpps
TP model: 46.5 Mpps
108 Mpps
108 Mpps
87 Mpps
144 Mpps
Fixed Ports
8 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP
P series: 24 x 10/100/1,000 Base-T, 4 x Gig SFP
TP modle: 24 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP
24 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
24 x Gig SFP, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+
48 x 10/100/1,000 Base-T, 4 x Gig SFP
48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
MAC Address Table
8k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC learning limiting
VLAN Features
4,094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing
Static route, RIP, RIPng
Interoperability
VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
SVF
Plug-and-play SVF client
Automatic software and patch loading to clients
One-click and automatic delivery of service configurations
Independent client running
