Specifications
Brand Name :
huawei
Model Number :
S6720-32X-LI-32S-AC
Place of Origin :
china
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S6720-32X-LI-32S-AC
Device type :
32 Port 10G Switch
Product type :
Huawei S6720 Switch
Ports :
32 x 10 GE SFP+ ports
Switching Capacity :
1.28 Tbit/s
Forwarding Performance :
240 Mpps
Description

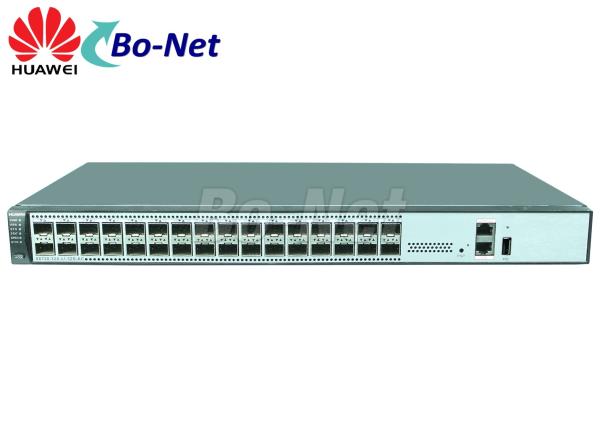

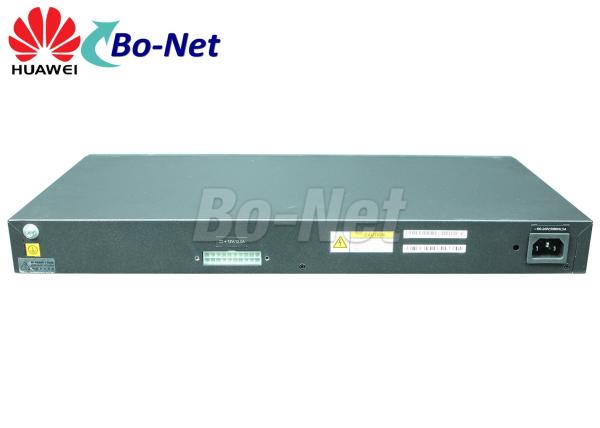

Huawei S6720 Switch S6720-32X-LI-32S-AC 32 Ports 10G SFP+ Network Access Switch

S6720-LI Series Switches

The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.

Model S6720-32X-LI-32S-AC
Fixed Ports 32 x 10 GE SFP+ ports
Power Built-in AC power supply and Redundant Power Supply (RPS)
Packet forwarding rate 240 Mpps
Switching capacity 1.28 Tbit/s
Dimensions (W x D x H) 420 x 220 x 43.6 mm

Product model S6720-16X-LI-16S-AC
S6720S-16X-LI-16S-AC		 S6720-26Q-LI-24S-AC
S6720S-26Q-LI-24S-AC		 S6720-32X-LI-32S-AC
S6720S-32X-LI-32S-AC
Switching Capacity 1.28 Tbit/s 1.28 Tbit/s 1.28 Tbit/s
Forwarding Performance 240 Mpps 240 Mpps 240 Mpps
Fixed Ports 16 x 10 GE SFP+ ports 24 x 10 GE SFP+ ports
2 x 40 GE QSFP+ ports		 32 x 10 GE SFP+ ports
MAC Address Table 32K MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4,094 VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
Basic QinQ and selective QinQ
IPv4 Routing Static routing, RIP, and OSPF
VRRP
Policy-based routing
Routing policies
Interoperability VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)

240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC

240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC

240 Mpps 10G SFP+ Network Access Switch S6720-32X-LI-32S-AC
