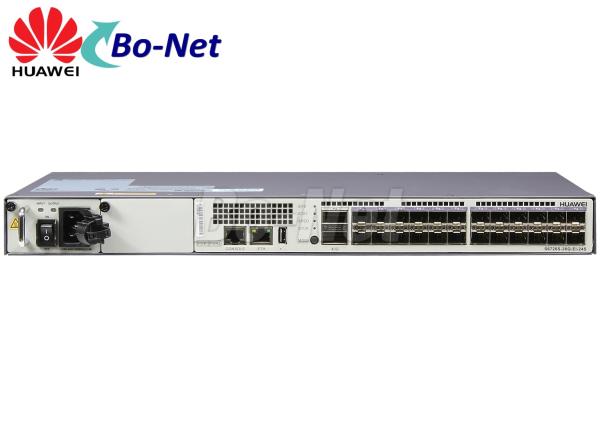

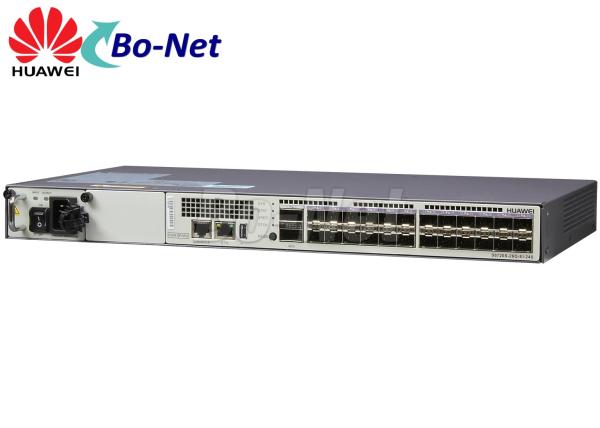

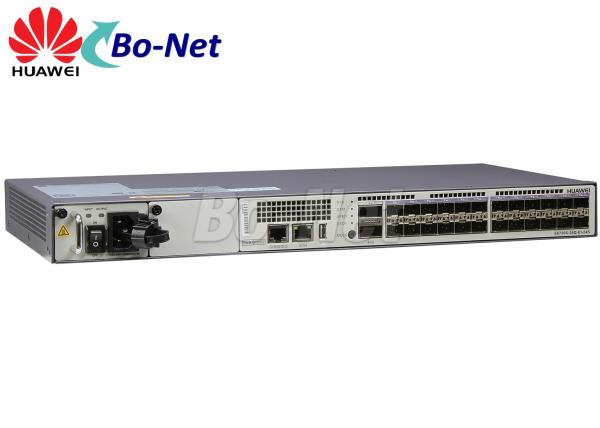

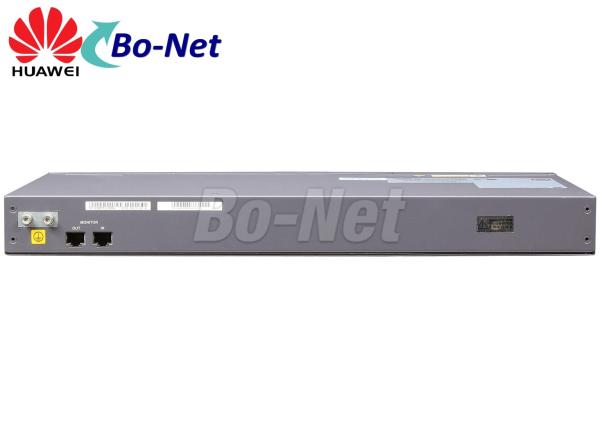

S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
Specifications
Brand Name :
huawei
Model Number :
S6720S-26Q-EI-24S-AC
Place of Origin :
china
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per week
Delivery Time :
3~5 working days
Packaging Details :
Original packing
Brand :
huawei
Product name :
S6720S-26Q-EI-24S-AC
Device type :
24 Port 10G Switch
Product type :
Huawei S6720 Switch
Ports :
24 x 10 GE SFP+
Uplink port :
2 x 40 GE QSFP+ ports
Switching Capacity :
2.56 Tbit/s
Forwarding Performance :
480 Mpps
Description

Huawei S6720 S6720S-26Q-EI-24S-AC 24 Port 10G SFP+ Switch 2 Port 40 GE QSFP+ Switch

S6720-EI Series Switches

S6720-EI Series 10 GE Switches provide high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. High-performance forwarding (up to 1,080 Mpps), 2.56 Tbit/s total switching capacity, and optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks. Intelligent QoS features, comprehensive security, and 1+1 backup of AC and DC power modules ensure secure, reliable operation. For additional flexibility, the 40 Gbit/s QSFP+ ports support long-distance stacking.

Product Code S6720S-26Q-EI-24S-AC
Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Interface Slot None
Power Supply AC Power Supply
Forwarding Performance 480 Mpps
Switching Capacity 2.56 Tbit/s
Stack Supported
Stack Ports

- Any 10GE SFP+ ports (a maximum of 16 physical ports)

- Any 40GE QSFP+ ports (a maximum of 2 physical ports)
Memory (RAM) 2 GB
Flash 240 MB
Dimensions (W x D x H) 44.2 cm x 22 cm x 4.44 cm
Weight 8.5 Kg

Product model S6720-30C-EI-24S-AC
S6720-30C-EI-24S-DC		 S6720-54C-EI-48S-AC
S6720-54C-EI-48S-DC		 S6720S-26Q-EI-24S-AC
Switching Capacity 2.56 Tbit/s 2.56 Tbit/s 2.56 Tbit/s
Forwarding Performance 720 Mpps 1,080 Mpps 480 Mpps
Fixed Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports 48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slots One extended slot One extended slot Not supported
MAC Address Table 288k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4,094 VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
QinQ and selective QinQ
IP Routing Static routing, RIPv1, RIPv2, ECMP, and URPF
OSPF, IS-IS, and BGP
VRRP
Policy-based routing
Routing policy
Interoperability VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)

S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet SwitchS6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet SwitchS6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch

S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet SwitchS6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet SwitchS6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet SwitchS6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch

S6720S-26Q-EI-24S-AC 2 Port 40 GE QSFP+ Cisco Ethernet Switch
